Micro Glass Bead Sliver Reflective Tape Flame Resistant Industrial wash 30 Cycles Heat Transfer Vinyl Safety Reflective Tape

Micro Glass Bead Sliver Reflective Tape Flame Resistant Industrial wash 30 Cycles Heat Transfer Vinyl Safety Reflective Tape

FOB Reference Price: Get Latest Price

≥200 Rolls

US $18

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Item No.:: TF-FRIW307550

Daytime color:: Silver

Reflective color:: Bright white

Material:: PES

Industrial wash:: 30 Cycles (ISO 15797)

Dry-cleaning:: 50 Cycles

Retro-reflective coefficient:: RA > 500 cd/lux/m2

Standards:: EN ISO 20471 & ANSI/ISEA 107 level 2

Roll size:: 5cm x 100m

Customized size:: Acceptable

Quick Details

Place of Origin:: Anhui, China

Brand Name:: V-REFLEX

Model Number:: TF-FRIW307550

Item No.:: TF-FRIW307550

Daytime color:: Silver

Reflective color:: Bright white

Material:: PES

Industrial wash:: 30 Cycles (ISO 15797)

Dry-cleaning:: 50 Cycles

Retro-reflective coefficient:: RA > 500 cd/lux/m2

Standards:: EN ISO 20471 & ANSI/ISEA 107 level 2

Roll size:: 5cm x 100m

Customized size:: Acceptable

Products Description

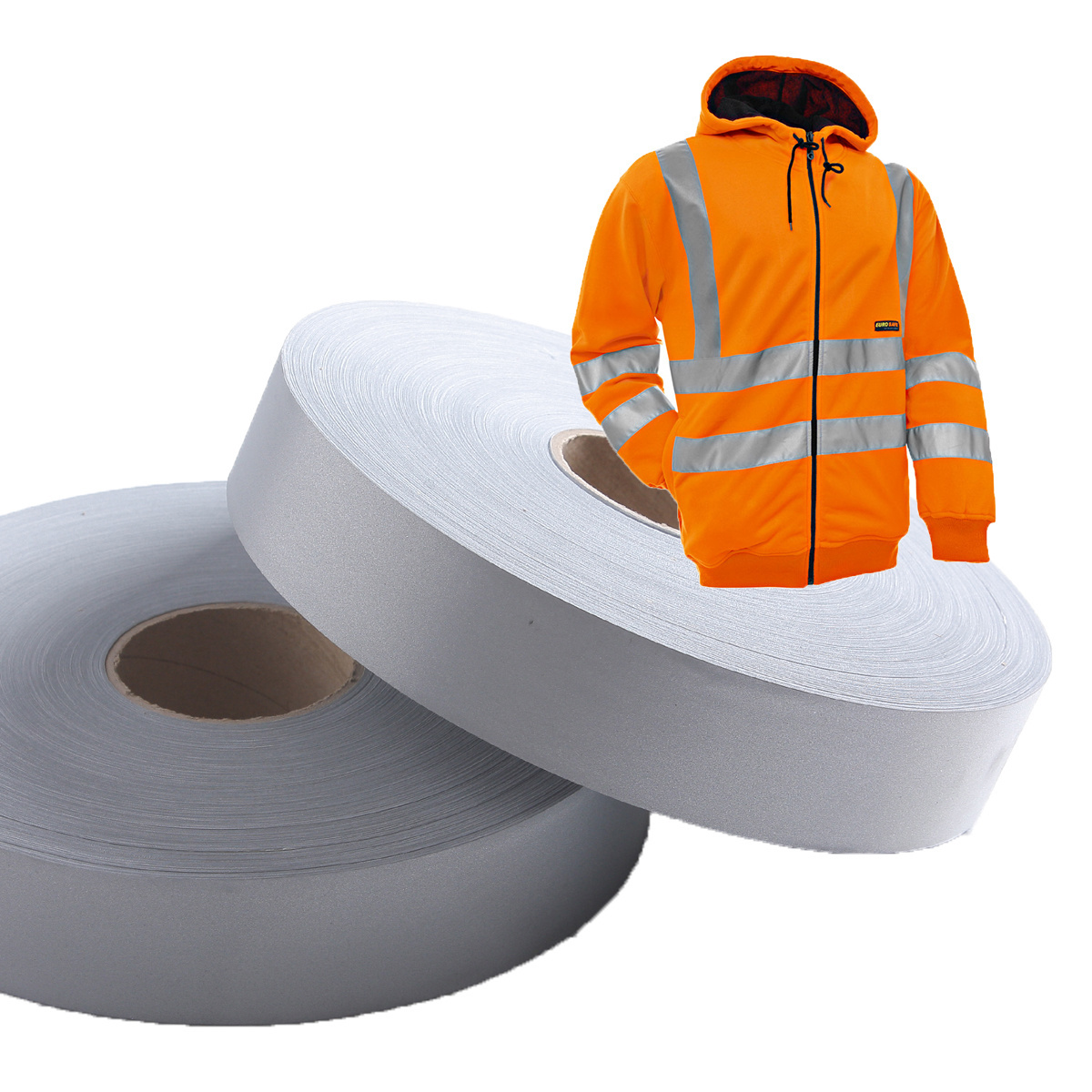

V-REFLEX ^TM Reflective Material - Reflective Heat Transfer Film/Tape is designed for use on occupational safety garments, which require industrial laundry, other other similar strong stain cleaning methods.

Our products approve to many norms, such as EN ISO 20471, ANSI/ISEA 107, CSA-Z96-15 AS/NZS 1906.4, OEKO-TEX 100 , and other norms with similar requirements.

Products Parameters

Reflective Transfer Film# TF-FRIW307550
Daytime Color	Silver
Reflective Color	Bright White
Material	PES
Industrial Wash	30 cycles (ISO 15797)
Dry-cleaning	50 cycles (ISO 3175)
Initial Average	RA > 500 cd/lux/m2
Approved to	EN ISO 20471, ANSI/ISEA 107, AS/ NZS 1906.4, CSA-z96-15, etc.
Roll Size	5cm x 100m/roll, or OEM size

Working Process

Heat Transfer (Heat Lamination) Guidelines

We recommend to follow below info to set up the settings on laminating equipments.

* Lamination Temperature: 130-150 °C
* Dwell Time (seconds): 10-20
* Line Pressure Firm: 30-40 psi

Above settings should be adjusted according to the pre-production testing results.

Products Features

Structure

Consists of exposed high performance glass lenses bonded to a durable polymer layer, which is coated with a heat activated adhesive.

High Visibility

Coefficient of reflection (RA in cd/lux/m2) measured at +5.0° entrance angle and 0.20° observation angles on new product is over 500.

Substrates

Most of the fabrics can be used as substrates, such as polyester, cotton, lycra, etc. Except nylons and fabrics treated with a durable water repellent
