Quick Details
-
Brand Name:
-
HITBOT
-
Material:
-
Extruded aluminum material
-
Item No.:
-
Z-Mod-SE-73-20SE
-
Electric Motor:
-
200W/DC24V
-
Rating Torque (N.m):
-
0.64
-
The Max Speed:
-
1000(mm/sec)
-
Rated Acceleration:
-
0.3G
-
Stroke range:
-
50-1100 (50 interval)
-
Rated speed of motor ( RPM):
-
3000
-
Repeatability:
-
±0.01mm
-
Precise requirement of installation area:
-
Evenness, below 0.05mm
-
Working Environment:
-
0-40℃,85%RH(No Frost)
Quick Details
-
Weight (KG):
-
8.17
-
Model Number:
-
Z-Mod-SE-73
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITBOT
-
Material:
-
Extruded aluminum material
-
Item No.:
-
Z-Mod-SE-73-20SE
-
Electric Motor:
-
200W/DC24V
-
Rating Torque (N.m):
-
0.64
-
The Max Speed:
-
1000(mm/sec)
-
Rated Acceleration:
-
0.3G
-
Stroke range:
-
50-1100 (50 interval)
-
Rated speed of motor ( RPM):
-
3000
-
Repeatability:
-
±0.01mm
-
Precise requirement of installation area:
-
Evenness, below 0.05mm
-
Working Environment:
-
0-40℃,85%RH(No Frost)
Product Description
Specification
|
Item
|
Value
|
|
Model Number
|
Z-Mod-SE-73
|
|
Brand Name
|
HITBOT
|
|

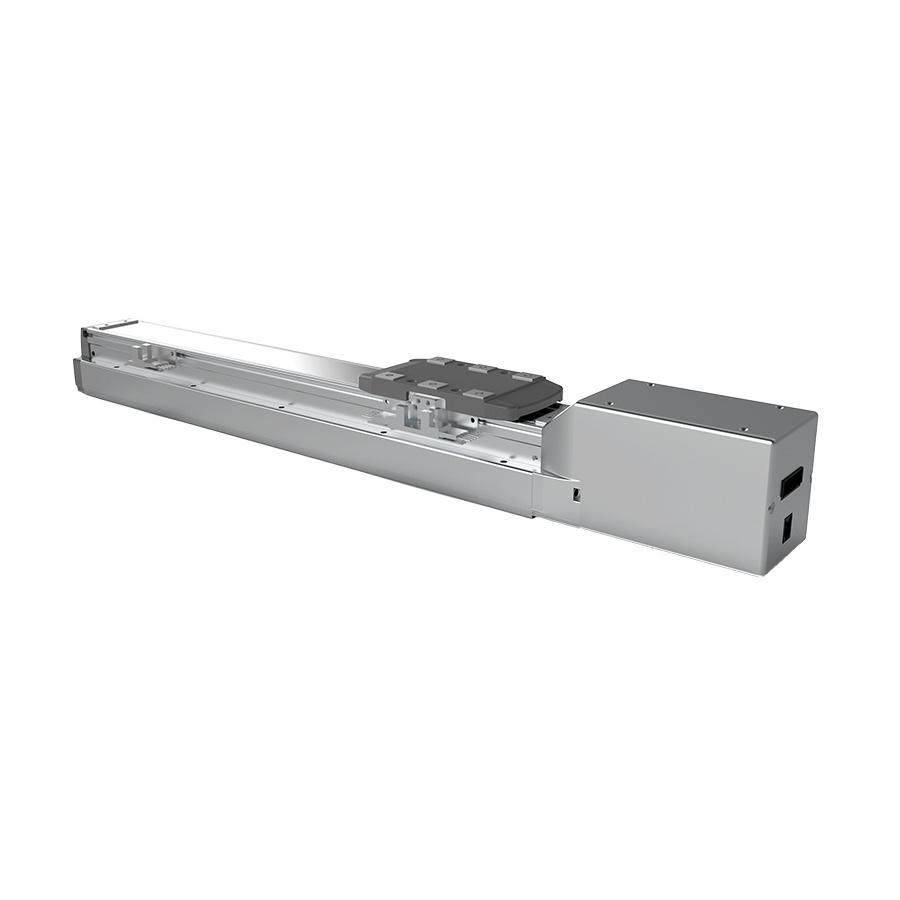

Type
|
Electric Linear Actuator
|
|
Electric Motor
|
200W/DC24V
|
|
Rating Torque
|
0.64 (N.m)
|
|
The Max Speed
|
1000(mm/sec)
|
|
Rated Acceleration
|
0.3G
|
|
Stroke
|
50-1100 (50 interval)
|
|
Rated speed of motor
|
3000 ( RPM)
|
|
Repeatability
|
±0.01mm
|
|
Precise requirement of installation area
|
Evenness, below 0.05mm
|
|
Base Material
|
Extruded aluminum material, white luster
|
|
Working Environment
|
0-40℃,85%RH(No Frost)
|
