Quick Details
-
CaO Content (%):
-
None
-
CrO Content (%):
-
None
-
SiC Content (%):
-
None
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
YT-SD-15
-
Brand Name:
-
YUNTIAN
-
Density of Head:
-
3.8-4.0 g/cm3
-
Density of Stem:
-
2.7-3.0g/cm3
-
Compressive strength:
-
20 Mpa
-
Diameter:
-
200-350 mm
-
Producing Method:
-
Pressing
-
Type:
-
Refractory Material Slag Dart
-
Slot Diameter:
-
15-60 mm
-
Height:
-
150-230 mm
-
Length of stem:
-
1100-1775 mm
-
Diameter of stem:
-
40-50 mm
Quick Details
-
SiO2 Content (%):
-
6.5%
-
Al2O3 Content (%):
-
38.3%
-
MgO Content (%):
-
35.5%
-
CaO Content (%):
-
None
-
CrO Content (%):
-
None
-
SiC Content (%):
-
None
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
YT-SD-15
-
Brand Name:
-
YUNTIAN
-
Density of Head:
-
3.8-4.0 g/cm3
-
Density of Stem:
-
2.7-3.0g/cm3
-
Compressive strength:
-
20 Mpa
-
Diameter:
-
200-350 mm
-
Producing Method:
-
Pressing
-
Type:
-
Refractory Material Slag Dart
-
Slot Diameter:
-
15-60 mm
-
Height:
-
150-230 mm
-
Length of stem:
-
1100-1775 mm
-
Diameter of stem:
-
40-50 mm
Customization High Temperature Refractory High Alumina Fire Block Slag Cutting Dart For Converter
Slag Dart use

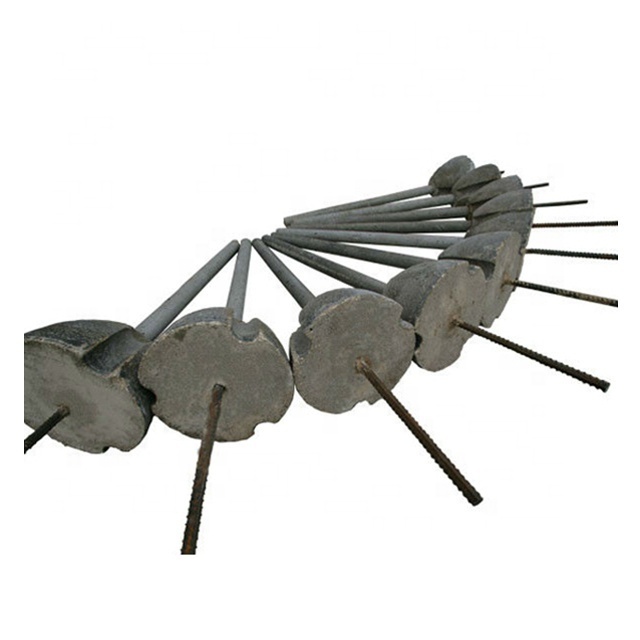

In the converter steel-making processing, a large amount of molten steel slag is produced when smelting in the BOF. Slag blocking darts are cone shapes with slots and its density leads to float at the interface between the liquid steel and slag in the furnace. The slag blocking dart is inserted into the taphole toward the end of the tapping operation by slag blocking dart application machine to block slag inflow ladle, the performance can be increased to 96%, Slag layer< 40mm. The new technology reduced the energy consumption, reduced the molten steel temperature loss, increased the steel-making operation security.
Slag Dart Description
|
|
|
|
Brand |
YunTian |
|
Item Name |
Slag dart Slag stopping plug Slag control dart |
|
Total Length |
1100mm-1680mm, according to customers ’ requirment |
|
150mm-230mm, according to drawing |
|
|
The diameter of Head |
200-350mm, according to the size of tapping hole |
|
3.8g/cm3 |
|
|
The density of Tail |
2.8g/cm3 |
|
Temperature application |
1790℃ |
|
CCS |
≥ 20 Mpa |
|
Other details: |
|
|
1.Packing: To be packed in standard packing, suitable for long distance ocean transportation and well protected against damage, moisture, shock, rust. 2.MOQ: 40 pieces, more or less depend on the produce craft 3.Delivery Detail: 45 working days after |
|
Production Show
|
Why Choose ANHUI YUNTIAN METALLURGY TECOLOGY? |
|
1.Our company has a sound service system, professional and technical personnel always tracking, guidance and maintenance in each of the areas , so that customers have no worries .
2.As a national high-tech enterprise,we have 20 years exprience in slag-stopping industry, we have obtained the paten of slag dart in 2009.
3. To ensure the product quality and consistency,we have obtained the ISO 9001 quality system certificate |
