Quick Details
-
Model Number:
-
Y-NL
-
Specification:
-
4-18mm
-
Length:
-
100m/200m
-
Thickness:
-
0.75-2mm
-
Standard:
-
ISO9001
-
work temperature range:
-
-40℃~130℃
-
Feature:
-
High temperature resistance
-
Color:
-
Clear, Milk White, Red, Blue, Black, Yellow, and Orange etc
-
Working pressure:
-
3.0Mpa
-
Bursting pressure:
-
9.0Mpa
-
OEM:
-
YES
Quick Details
-
Processing Service:
-
extrude
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YAYO
-
Model Number:
-
Y-NL
-
Specification:
-
4-18mm
-
Length:
-
100m/200m
-
Thickness:
-
0.75-2mm
-
Standard:
-
ISO9001
-
work temperature range:
-
-40℃~130℃
-
Feature:
-
High temperature resistance
-
Color:
-
Clear, Milk White, Red, Blue, Black, Yellow, and Orange etc
-
Working pressure:
-
3.0Mpa
-
Bursting pressure:
-
9.0Mpa
-
OEM:
-
YES
Product Description
|

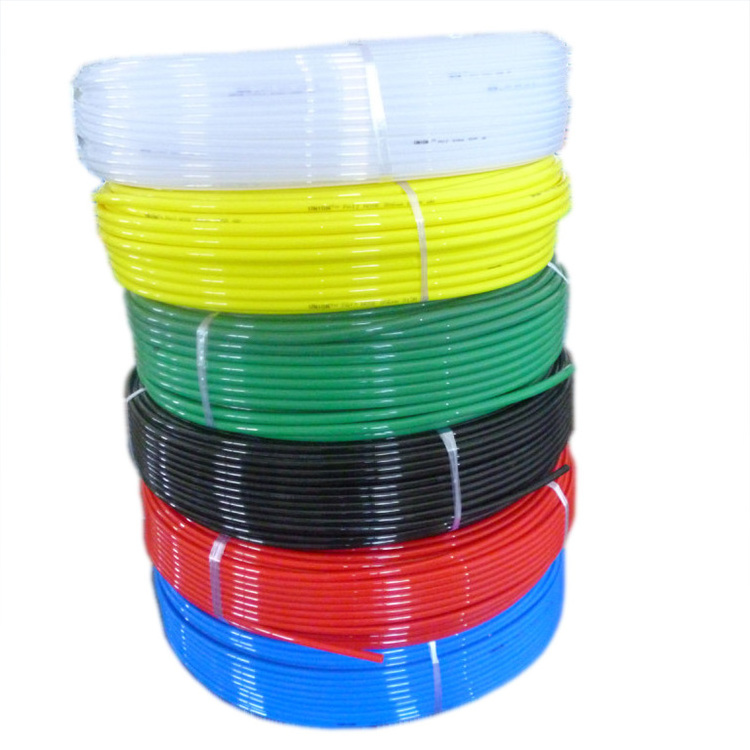

High Quality Customized Oil Resistant Tube PA6 Nylon Hose 16mm 12mm 10mm 8mm 6mm 4mm 3mm
|
|
|
||
|
Product characteristics
|
It is resistant to abrasion, has a smooth surface and low resistance, preventing scaling, chemically stable and resistant to a wide range of chemicals.
It is soft and easy to assemble.
High temperature resistance
|
|
||
|
work temperature range
|
-40℃～130℃.
|
|
||
|
Applicable scope
|
Air, water, chemicals, lubrication, instrumentation lines, irrigation control systems, fuel delivery pipes for vehicles and ships.
Vacuum system air conditioning systems, oscillating insulators. Electrostatic insulators, etc. |
|
||
|
Color
|
Standard color is Natural color，Red, Blue, Black, Yellow, and Orange etc. And other color available upon request.
|
|
||
|
product code
|
Outer diameter
mm |
Inside diameter
mm |
length
M |
Working Pressure
bar |
|
Disruptive Pressure
bar |
|
Bending Radius
mm |
|
|||||||||
|
Size
Y-NY Y-NYS
|
|
|
|
NL
|
NLS
|
NL
|
NLS
|
NL
|
NLS
|
|||||||||
|
0425
|
4
|
2.5
|
200
|
30
|
25
|
90
|
75
|
30
|
26
|
|||||||||
|
0530
|
5
|
3
|
200
|
30
|
25
|
90
|
75
|
32
|
28
|
|||||||||
|
0640
|
6
|
4
|
200
|
30
|
25
|
90
|
75
|
35
|
30
|
|||||||||
|
0860
|
8
|
6
|
100
|
25
|
20
|
75
|
60
|
55
|
45
|
|||||||||
|
1080
|
10
|
8
|
100
|
20
|
15
|
60
|
45
|
70
|
60
|
|||||||||
|
1290
|
12
|
9
|
100
|
20
|
15
|
60
|
45
|
75
|
65
|
|||||||||
|
1411
|
14
|
11
|
100
|
20
|
15
|
60
|
45
|
95
|
85
|
|||||||||
|
1613
|
16
|
13
|
100
|
20
|
15
|
60
|
45
|
130
|
110
|
|||||||||
|
1815
|
18
|
15
|
100
|
20
|
15
|
60
|
45
|
150
|
140
|
|||||||||
|
Inch sizes or other special sizes, can be customized according to customer needs
|
|
|
|
|
|
|
|
|
|
|||||||||
