Quick Details
-
Customized support:
-
yes
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Model Number:
-
ST19
-
Mechanical Life:
-
/
-
Switch Type:
-
AC
-
IP level:
-
66
-
Product name:
-
Infrared motion sensor
-
Material:
-
PC (UV proof )
-
Color:
-
white
-
Voltage:
-
110-240V/AC
-
Type:
-
AC power cord
-
Output:
-
Switching Transducer
-
Certificates:
-
CE RoHS
-
Warranty:
-
3 Years
-
detection distance:
-
max.9m(<24℃)
-
Time delay:
-
5s, 1min, 5min, 8min
Quick Details
-
Max. Current:
-
/
-
Max. Voltage:
-
240V
-
Network:
-
no
-
Customized support:
-
yes
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Model Number:
-
ST19
-
Mechanical Life:
-
/
-
Switch Type:
-
AC
-
IP level:
-
66
-
Product name:
-
Infrared motion sensor
-
Material:
-
PC (UV proof )
-
Color:
-
white
-
Voltage:
-
110-240V/AC
-
Type:
-
AC power cord
-
Output:
-
Switching Transducer
-
Certificates:
-
CE RoHS
-
Warranty:
-
3 Years
-
detection distance:
-
max.9m(<24℃)
-
Time delay:
-
5s, 1min, 5min, 8min

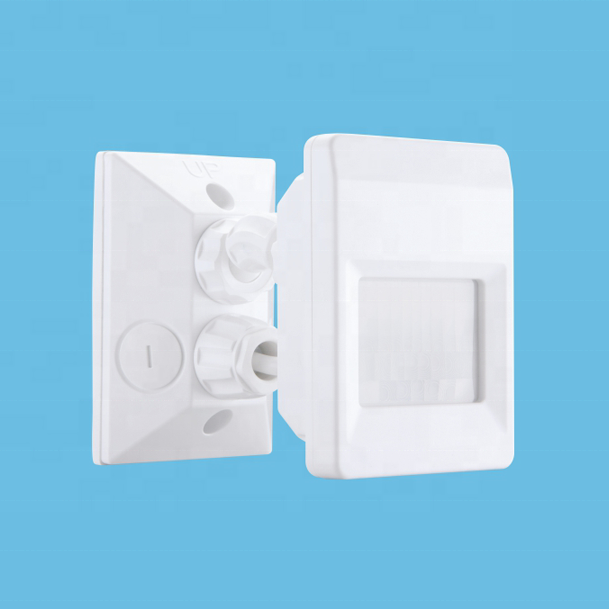

Welcome to use High Quality SAA approved ST 19 i nfrared motion sensor !
The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenien ce, safe ty , saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source: 220-240V/AC Detection Range: 120 °
Power Frequency: 50 /60 H z Detection Distance: 6-18m ( < 24 ℃ ) (adjustable)
Time Delay: M in. 10sec ± 3sec Ambient Light: <3-2000LUX
M ax .30min ± 2 min Working Temperature: -20~+40 ℃
Rated L oad : Max. 2000W Working Humidity : <93%RH
10 00W Power Consumption: approx 0.5W
Detection Moving Speed: 0 .6 -1 .5m/s Installation Height: 1.8-2.5m
Lifetime and Warranty:
|
Lifetime (hr) |
26000-45000 at least |
|
Warranty |
5 years |
FUNCTION:
Ø Can identify day and night, The consumer can adjust wor king state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “ 3 ” position (min). As for the adjustment pattern, please refer to the testing pattern .
Ø SENS adjustable: It can be adjusted according to using location. The detection distance of h igh sensitivity could be 18m max.
Ø Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment .
CONNECTION:
Ø C onnect the power wire with the sensor according to the connection-wire diagram.
Ø Fix the sensor with inflated screw on the selected position on the wall .
Ø Switch on the power and test it.
CONNECTION-WIRE DIAGRAM:(See the below figure)
Our company adopts automatic machines, such as: SMD, auto component inserter, wave solder, auto injection machines,the daily output is up to 20000-30000 pcs.
The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification.
