- Product Details
- {{item.text}}
Quick Details
-
Rated Input Voltage:
-
220 V
-
Rated Output Voltage (MIG):
-
22.4 V
-
Welding Current/Voltage Range:
-
20-160A
-
Wire Feeding Speed:
-
15 m/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RETOP
-
Dimensions:
-
58*32*37.5cm
-
Usage:
-
Metal welding
-
Weight (KG):
-
7.3 KG
-
Year:
-
2022
-
Power supply:
-
220v,50hz
-
Welding current(MMA):
-
20-150A
-
Welding current(TIG):
-
20-150A
-
Rated power:
-
4.9KW
-
Efficiency:
-
0.85
-
Protection class:
-
IP21S
-
Power factor:
-
0.73
-
Machine weight:
-
7.3kg
-
Gross weight:
-
11kg
-
Package size:
-
58*32*37.5cm
Quick Details
-
Wire Melting Type:
-
Globular Transfer
-
Max. Load Power Capacity:
-
4.9KVA
-
Rated Duty Cycle @40°C (MIG):
-
60%
-
Rated Input Voltage:
-
220 V
-
Rated Output Voltage (MIG):
-
22.4 V
-
Welding Current/Voltage Range:
-
20-160A
-
Wire Feeding Speed:
-
15 m/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RETOP
-
Dimensions:
-
58*32*37.5cm
-
Usage:
-
Metal welding
-
Weight (KG):
-
7.3 KG
-
Year:
-
2022
-
Power supply:
-
220v,50hz
-
Welding current(MMA):
-
20-150A
-
Welding current(TIG):
-
20-150A
-
Rated power:
-
4.9KW
-
Efficiency:
-
0.85
-
Protection class:
-
IP21S
-
Power factor:
-
0.73
-
Machine weight:
-
7.3kg
-
Gross weight:
-
11kg
-
Package size:
-
58*32*37.5cm

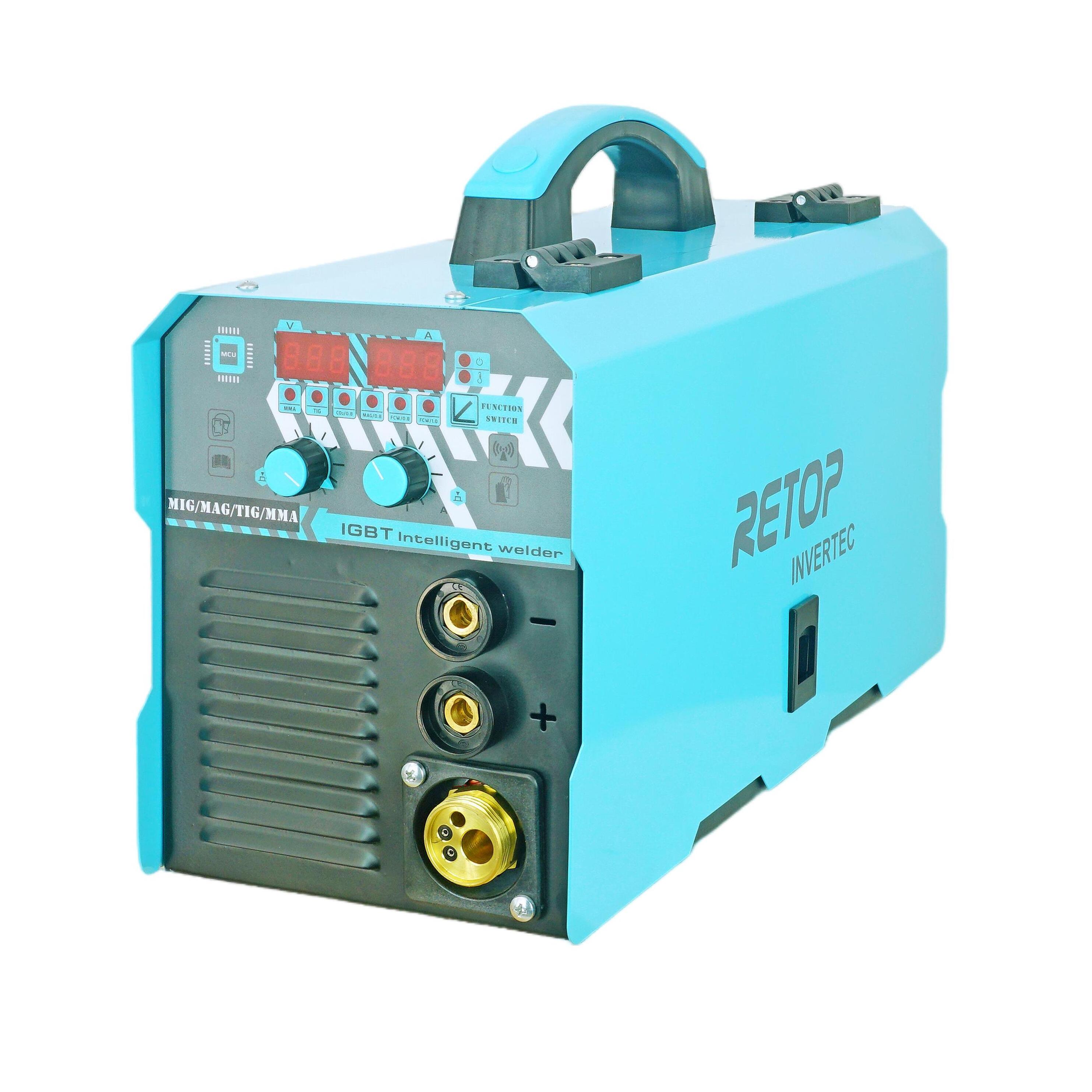

Technical Specifications
|
ITEM
|
MIG-160HD
|
|
Input Power Voltage(V)
|
AC 110V ; AC 220V 50/60hz
|
|
Rated Input Capacity(KVA)
|
4.9
|
|
Output Current Range(MMA)
|
20-160A
|
|
Output Current Range(MIG)
|
20-150A
|
|
Output Current Range(TIG)
|
20-150A
|
|
No-load Voltage(V)
|
22.4
|
|
Duty cycle
|
60%
|
|
Insulation class
|
F
|
|
Power factor
|
73%
|
|
Protection class
|
IP21S
|
|
Effciency（%）
|
85
|
|
Dimensions（mm）
|
580*320*375
|
|
Weight（Kg）
|
7.3
|
ACCRESSIORES
The default accessories
3M 15AK
MIG torch 1.8M Electerde holder 1.2M earth clamp Brush & Mask
Can match it with something else
CO2 pressure reducing valve
Welding wire
gas tube
Packing & Delivery
Company Introduction
Certifications
Exhibition
FAQ
MOQ:
- The different products with different MOQ. Contact us with more details.
- If with stock, 1-5 sets could be acceptable as well.
Payment:
- TT payment would be preferred: usually 30% deposit and the balance before shipment
Delivery time:
- Within 20 days after confirming the payment
Sample Issue
- Once price and order confirmed, we will be glad to send you the required samples for reference.
First time to use this kind of machine
- There is an English manual or guide video that show you how to use machine.
- If you still have any question, please contact us by e-mail /phone / online service.
If any problem with machine after receiving
- 24 hours to support by E-mail/calling
- Free parts could be sent to you in machine warranty period.
Why choose us?
- We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
- We use all new components,IGBT tube, diode,capacitor and so on imported components.
- We adopt SMT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of repairing,we just need to change the bad pcb board.
- We provide Warranty period of 1 to 2 years for all our items.
Action now
Why choose Retop?
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
a. We are welding machine MANUFACTURER, so we can offer better price and after-sale service and shorter delivery date.
b. We use all new components,mosfet tube, diode, capacitor and so on imported components.
c. We adopt IGBT technology to decrease failure rate and it is convenient to repair the welding machine and reduce the cost of
repairing, we just need to change the bad pcb board.
d. We provide Warranty period of 1 year for all our items
