Quick Details
-
Model Number:
-
Z41H-150LB
-
Brand Name:
-
RTV
-
Standard or Nonstandard:
-
Standard
-
Operation:
-
handwheel
-
flow:
-
two way
-
Product name:
-
A216 WCB flanged gate valve
-
Working pressure:
-
0.01MPa~1.5MPa
-
Seal Material:
-
PTFE Seal
-
Connection:
-
Flange Ends
-
Certificate:
-
ISO9001
-
Model:
-
Z41H-150LB
-
Material:
-
wcb
Quick Details
-
Port Size:
-
1/2"-24"
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
Z41H-150LB
-
Brand Name:
-
RTV
-
Standard or Nonstandard:
-
Standard
-
Operation:
-
handwheel
-
flow:
-
two way
-
Product name:
-
A216 WCB flanged gate valve
-
Working pressure:
-
0.01MPa~1.5MPa
-
Seal Material:
-
PTFE Seal
-
Connection:
-
Flange Ends
-
Certificate:
-
ISO9001
-
Model:
-
Z41H-150LB
-
Material:
-
wcb
We pay attention to every detail

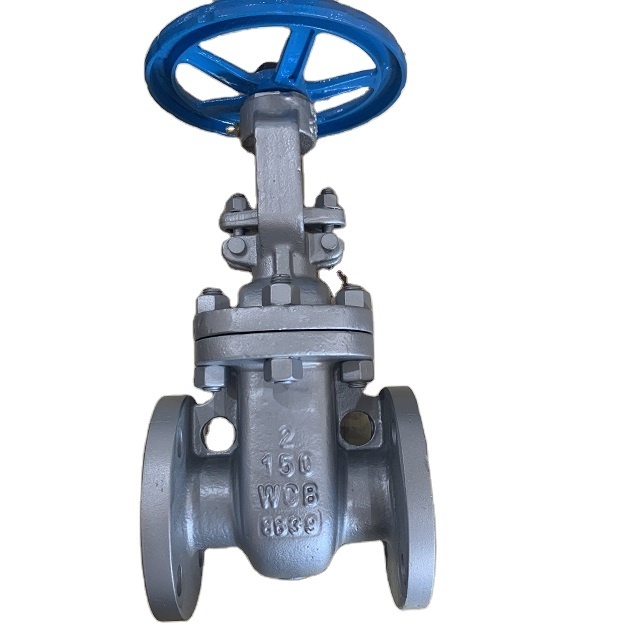

A216 WCB flanged gate valve
Specification:
Size:
1/2"-30"
Pressure:
150LB~1500LB
Body Material:
Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material
: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type:
Rising Stem, BB, FB, OS&Y
Operation:
Hand Wheel. Gear Devices, Electricty, Etc
End
: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)
Full Port Design, , Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system
Standard:
Design And Manufacture:
ANSI
Face To Face (End To End):
ANSI B16.10, API 6D,Etc
Flanged Connection:
ANSI B16.5, ASME B16.47 Etc
Butt Welded End:
ANSI B16.25,Etc
Test And Inspection:
API 598
Q:Are you a factory?
A:We are a factory setted up more than 10 years and export more than 10 years.
Q:When is the delivery date?
A:15-30 days in general
Q:Coud you send me a quoattion?
A:Sure,before the exactly quotation we need information followed:
1).Product material grand
2).Quantity of each sizes.
3).The size range of your product.
4).Your requriement, such as deal with the surface or anyother requriement
5).Best, Please show us your product picture.
Q: Can you send me a sample?
A: Yes,and the sample also is free
Q: How about the after service?
A:Free of charge for one year warranty,if have any problem,
when our technicianer check, after confirm it ,we will change it at once.
Q:What about the shipping package?
A:Standard packing or as customer requirements.
