Quick Details
-
Warranty:
-
30 Years
-
Brand Name:
-
Tiantech, OEM
-
Model Number:
-
410W-450W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1723x1134x30mm
-
Discription:
-

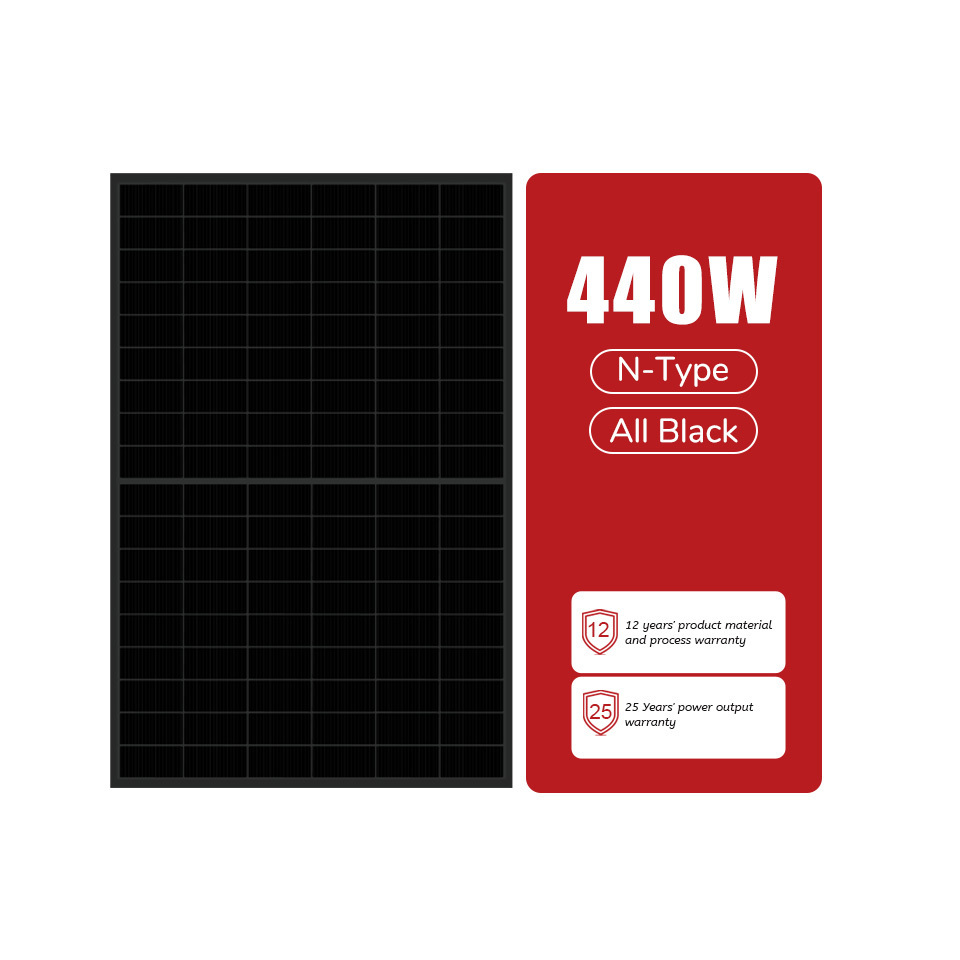

Mono Perc Half-Cell PV Module
-
Cells Type:
-
Mono 182x91mm
-
Weight:
-
20.5kg
-
No. of Cells:
-
108 Solar Cells
-
Product name:
-
XTL-B108
-
Junction Box:
-
IP68, 3 Bypass Diodes
-
Connector:
-
MC4 Compatible
-
Frame:
-
Silver/Black
-
OEM Order:
-
Acceptable
-
Max. Power:
-
440w
-
Certificate:
-
TUV CE
Quick Details
-
Cell size:
-
182mmx91mm
-
Type:
-
PERC, Half Cell, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.52%
-
Warranty:
-
30 Years
-
Brand Name:
-
Tiantech, OEM
-
Model Number:
-
410W-450W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1723x1134x30mm
-
Discription:
-
Mono Perc Half-Cell PV Module
-
Cells Type:
-
Mono 182x91mm
-
Weight:
-
20.5kg
-
No. of Cells:
-
108 Solar Cells
-
Product name:
-
XTL-B108
-
Junction Box:
-
IP68, 3 Bypass Diodes
-
Connector:
-
MC4 Compatible
-
Frame:
-
Silver/Black
-
OEM Order:
-
Acceptable
-
Max. Power:
-
440w
-
Certificate:
-
TUV CE
Product Information
|
ELECTRICAL CHARACTERISTICS (at STC)
|
|
|
|
|
|
|||||
|
Module No.
|
XTL-B108
|
|
|
|
|
|||||
|
Maximum Power (Pmax)
|
410W
|
420W
|
430W
|
440W
|
450W
|
|||||
|
Open-circuit Voltage (Voc)
|
37.89V
|
38.00V
|
38.22V
|
38.66V
|
39.04V
|
|||||
|
Maximum Power Voltage( Vmp)
|
31.35V
|
31.60V
|
31.80V
|
32.00V
|
32.21V
|
|||||
|
Short-circuit Current (Isc)
|
13.52A
|
13.96A
|
14.20A
|
14.44A
|
14.67A
|
|||||
|
Maximum Power Current (lmp)
|
13.08A
|
13.29A
|
13.52A
|
13.75A
|
13.97A
|
|||||
|
Module Efficiency (%)
|
20.98%
|
21.50%
|
22.01%
|
22.52%
|
23.03%
|
|||||
|
Power Tolerance
|
士1%
|
|
|
|
|
|||||
|
Temperature Coefficient of Isc
|
0.05%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Voc
|
-0.31%/℃
|
|
|
|
|
|||||
|
Temperature Coefficient of Pmax
|
-0.35%/℃
|
|
|
|
|
|||||
|
STC (Standard Test Environment:): lrradiance 1000W/m2, Cell temperature 25℃ , Spectrum AM1.5
|
|
|
|
|
|
|||||
