Two Component EV Battery Pack Insulation Silicone Thermal Gap Filler

Two Component EV Battery Pack Insulation Silicone Thermal Gap Filler

FOB Reference Price: Get Latest Price

≥100 Pieces

US $3.2

≥300 Pieces

US $3.1

≥1000 Pieces

US $3.02

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

EINECS No.:: Thermal Conductive Gap Filler

Place of Origin:: Jiangsu, China

Brand Name:: VOLSUN

Model Number:: VS-GF2001

Type:: Thermal Conductive Gap Filler

Mixing ratio:: 1:1

Viscosity A:: 80000-160000cps

Viscosity B:: 80000-160000cps

Thermal conductivity:: 2.0W mk

Density:: 2.0±0.2 g ml

Hardness:: 55±10 Shore OO

Tensile strength:: >50KPa

Elongation at break:: >10%

Breakdown strength:: >10kN/mm

Volume resistivity:: ≥1.0 1014 Ωcm

Quick Details

CAS No.:: Thermal Conductive Gap Filler

Other Names:: Thermal Conductive Gap Filler

MF:: Thermal Conductive Gap Filler

EINECS No.:: Thermal Conductive Gap Filler

Place of Origin:: Jiangsu, China

Brand Name:: VOLSUN

Model Number:: VS-GF2001

Type:: Thermal Conductive Gap Filler

Mixing ratio:: 1:1

Viscosity A:: 80000-160000cps

Viscosity B:: 80000-160000cps

Thermal conductivity:: 2.0W mk

Density:: 2.0±0.2 g ml

Hardness:: 55±10 Shore OO

Tensile strength:: >50KPa

Elongation at break:: >10%

Breakdown strength:: >10kN/mm

Volume resistivity:: ≥1.0 1014 Ωcm

Product Overview

Two-component Thermally Conductive Gel Silicone Material Gap Filler

Description
VS-GF2001 is a two-component, heat-curing silicone heat conduction sealant with good insulation and pressure resistance characteristics and thermal stability, safe and reliable use, and has good reworkable performance. It is applied to new energy battery Pack, automotive electronic control unit, 5G communication base station, power device and cooling plate or machine shell, can effectively exclude air, to achieve good filling effect.

Features

* Good surface wettability

* Good insulation material

* High thermal conductivity, low thermal resistance

* Continuous operating temperature：-40℃~+200℃
* Good resilience and long-term reliability
* Meet the requirements of RoHS and REACH certification
* Material specifications are complete, can accept customized development

PRODUCT SPECIFICATIONS

Item	Typical Data	Test Method
Color(Before mixing)	A: Pink B: White	Visual
Color(After mixing)	Light Pink	Visual
Mixing ratio	1:1	/
Viscosity (Component A)	80000-160000cps	ASTM 2196
Viscosity (Component B)	80000-160000cps	ASTM 2196
Viscosity (After mixing)	80000-160000cps	ASTM 2196
Opening time	＞ 1h	/
Full curing time	25℃，24h；100℃，30min	/
Thermal Conductivity	2.0±0.2 W/m·k	ASTM D5470
Hardness	55±10 Shore OO	ASTM D2240
Density	2.0±0.2 g/ml	ASTM D792
Tensile strength	＞35 KPa	GB/T 528-2009
Elongation at break	＞10 %	GB/T 528-2009
Flame retardance	V-0	UL94
Breakdown strength	≥10 kV/mm	ASTM D149
Volume resistivity	≥ 1.0×1014 Ω·cm	ASTM D257
Dielectric constant（1000Hz）	＜6.0	ASTM D150

Dimensions

Size	Package

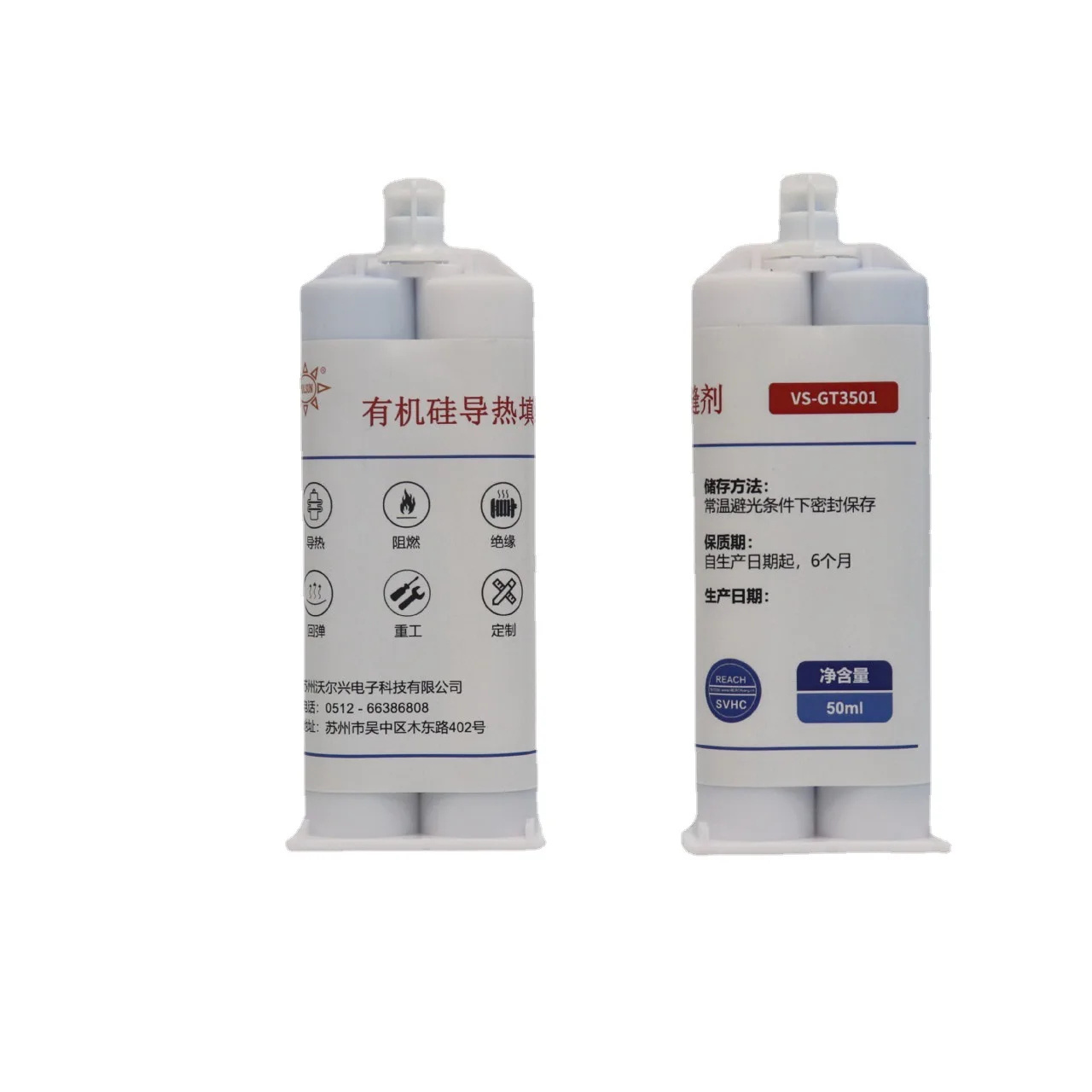

VS-GF2001(Sample）	50CC Two-component rubber hose
VS-GF2001	400CC Two-component rubber hose

Note：Special size and packing are available as request.

Instructions
* Clean the surface of the bonded or coated object to remove rust, dust, oil, etc
* Unscrew the glue cap, install the static mixer, and use the manual/automatic glue gun to squeeze glue onto the cleaned surface
* After gluing, attach the second surface to it and apply slight pressure to fix it

Precautions

* The use environment should be free of large debris or other pollutants to avoid affecting the adhesion of materials and objects.

* Before the material is fully cured, avoid other objects from touching the material, which may affect the appearance and
performance of the material .
* Keep this product away from the mouth and eyes. If it enters the mouth and eyes accidentally, rinse it with clean water or go to the hospital.

Storage conditions Shelf life

* Keep the lid closed and store in the original packaging at room temperature away from light
* The product shelf life is 6 months from the date of manufacture
