Various types of mixer/emulsifier
Quick open manhole.
Various types of CIP cleaners .
Fly and insect resistant breathing cover.
Adjustable legs or skirt-base bottom
Dismountable materials input pipe assembly.
Thermometer
Sanitary sample valve
Ladder
Liquid level meter and level controller
Eddy-proof board.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
jainyi
-
Dimension(L*W*H):
-
customized by customer
-
Weight:
-
1000
-
After-sales Service Provided:
-
Overseas service center available
-
Material:
-
Sanitary stainless steel 304 or 316
-
Color:
-
Silver
-
Customized:
-
acceptable
-
name:
-
1000 litre 304 Food Grade Iso Tank Containers
-
Usage:
-
Storage and mixing Equipment
-
Application:
-
Liquid Storage and mixing
-
Advantage:
-
Long Service Life
-
Item:
-
stainless steel water tank
-
Volume:
-
100-15000L
Quick Details
-
Capacity:
-
50-200000L
-
Max Working Pressure(MPa):
-
20 MPa
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
jainyi
-
Dimension(L*W*H):
-
customized by customer
-
Weight:
-
1000
-
After-sales Service Provided:
-
Overseas service center available
-
Material:
-
Sanitary stainless steel 304 or 316
-
Color:
-
Silver
-
Customized:
-
acceptable
-
name:
-
1000 litre 304 Food Grade Iso Tank Containers
-
Usage:
-
Storage and mixing Equipment
-
Application:
-
Liquid Storage and mixing
-
Advantage:
-
Long Service Life
-
Item:
-
stainless steel water tank
-
Volume:
-
100-15000L
Product name
1000 litre 304 Food Grade Iso Tank Containers
Professional stainless steel tank manufacturer
Over 15 years of stainless steel tank design and manufacture experience
Top quality with reasonable price
Supports on-site installation and remote guided installation
7X24 hours after-sales and technical support
Video description
Products Description
Stainless steel tank Types:
Stainless steel mixing tank/blending tank
1.Tank material: SS304/SS316
2.Nominal volume:50L-20000L
3.Vertical or horizontal structure
4.Heating method: steam heating or electric heating
5.Mixer type:frame type, anchor type, paddle type, turbine type, etc.
6.Mixer speed: 0-1440 RPM(Fixed speed or VFD control)
7.Use mirror polishing or 2B color matte or 2B matte surface polishing treatment, beautiful and clean appearance.
8.Humanized structure design and easy to operate.
9 .Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

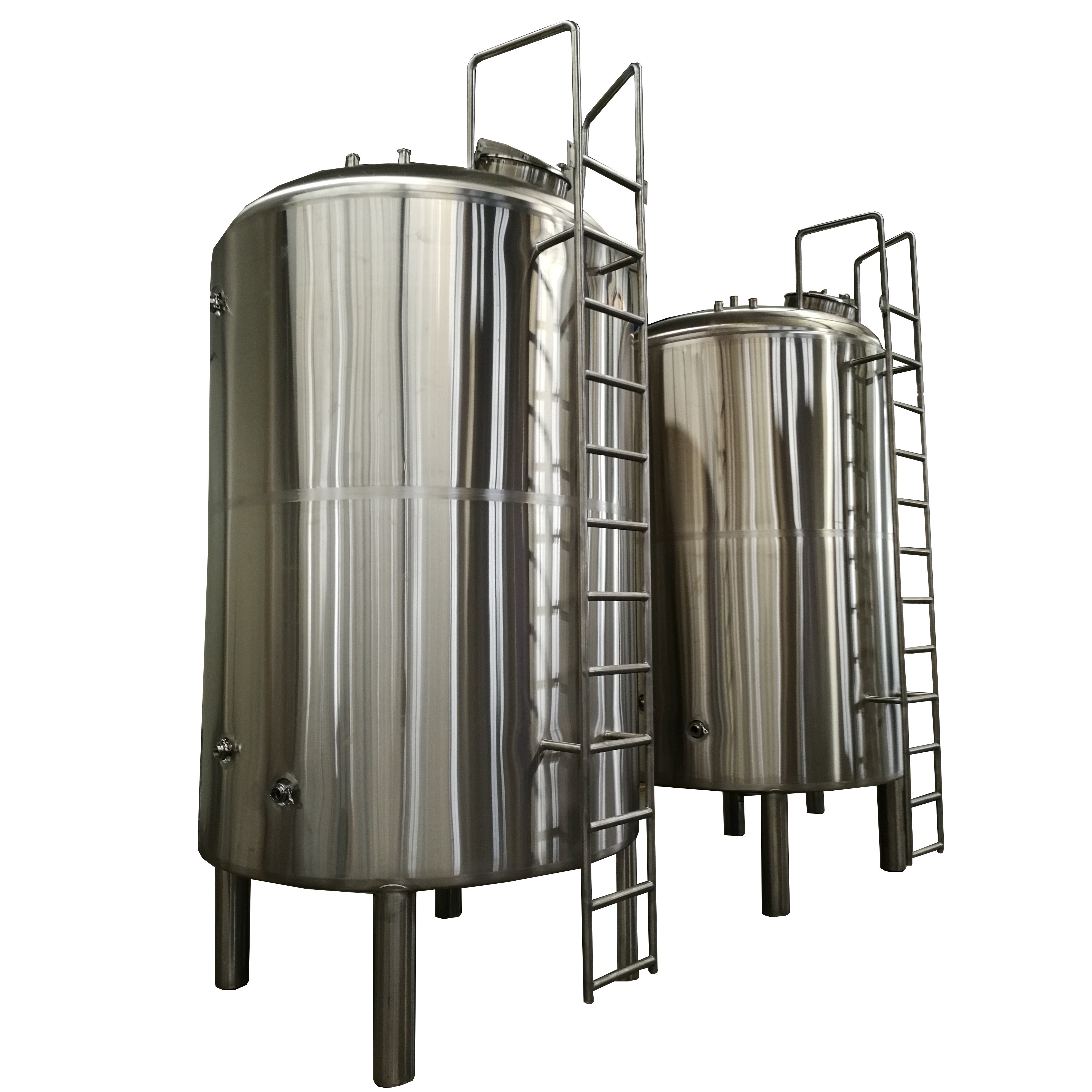

Stainless steel storage tank
1.Tank material: SS304/SS316
2.Nominal volume:50L-20000L
3.Vertical or horizontal structure
4.Insulation materials: pearl wool, rock wool or polyurethane casting foam.
5.Use mirror polishing or 2B color matte or 2B matte surface polishing treatment, beautiful and clean appearance.
6.Humanized structure design and easy to operate.
7 .Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Stainless steel high speed / high shear emulsification tank
1.Made of SUS304/16L food-grade material
2.There are two types of emulsification tank/liquifier: bottom high shear type and top high shear type
3. One or more agitators can be mounted on the tank
4.Can be designed as single layer, double layers or three layers.
5.Tank heating method: electric heating or steam heating.
|
Main technical parameters
|
|
|
|
|
||||
|
Effective volume (L)
|
Dimension of tank (mmxmm)
|
Total height (mm)
|
inlet & outlet (mm)
|
Insulation layer (mm)
|
||||
|
500
|
840x1000
|
2250
|
38
|
60
|
||||
|
1000
|
1060x1220
|
2550
|
51
|
60
|
||||
|
2000
|
1340x1500
|
2900
|
51
|
60
|
||||
|
3000
|
1410x2000
|
3400
|
51
|
60
|
||||
|
4000
|
1620x2000
|
3450
|
51
|
60
|
||||
|
5000
|
1810x2000
|
3500
|
51
|
60
|
||||
|
6000
|
1980x2000
|
3550
|
51
|
60
|
||||
|
7000
|
1930x2440
|
4000
|
51
|
60
|
||||
|
8000
|
2060x2440
|
4000
|
51
|
60
|
||||
|
9000
|
2180x2440
|
4050
|
51
|
60
|
||||
|
10000
|
2300x2440
|
4050
|
51
|
60
|
||||
|
12000
|
2270x3000
|
4600
|
51
|
60
|
||||
|
15000
|
2530x3000
|
4700
|
51
|
60
|
||||
|
20000
|
2640x3660
|
5400
|
51
|
60
|
||||
|
It can be made according to special requirements of customers. Total height (H) is in accordance with outlet height of 800 mm. If outlet Height is changed, then total height (H) shall also be adjusted.
|
|
|
|
|
||||
Configuration of tank:
Application of stainless steel tank:
Dairy engineering
Food and beverage engineering
Fruit and vegetable juice engineering
Beer engineering.
Fine chemical engineering
Pharmaceutical engineering
Water treatment engineering
