Quick Details
-
Panel Dimensions:
-
1200*540*30mm
-
Application:
-
100w poly solar panel
-
Junction box:
-
IP67 Rated Standard Waterproof with bypass diode
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Open Circuit Voltage(Voc):
-
21.6V
-
Warranty:
-
25 Years Output Power Guarantee
-
Power tolerance:
-
0~+5w Tolerance
-
Short Circuit Current(Isc):
-
6.46A
-
Maximum Power Voltage(Vmpp):
-
6V/9V/18V/24V/30V/36V/48V/54V
-
Maximum Voltage System:
-
DC1000V (IEC)
-
Front cover:
-
3.2mm High Transmission shelf-cleaning Tempered glass
Quick Details
-
Brand Name:
-
SINOSHINE
-
Model Number:
-
SY-100W-36P
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
1200*540*30mm
-
Application:
-
100w poly solar panel
-
Junction box:
-
IP67 Rated Standard Waterproof with bypass diode
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Open Circuit Voltage(Voc):
-
21.6V
-
Warranty:
-
25 Years Output Power Guarantee
-
Power tolerance:
-
0~+5w Tolerance
-
Short Circuit Current(Isc):
-
6.46A
-
Maximum Power Voltage(Vmpp):
-
6V/9V/18V/24V/30V/36V/48V/54V
-
Maximum Voltage System:
-
DC1000V (IEC)
-
Front cover:
-
3.2mm High Transmission shelf-cleaning Tempered glass

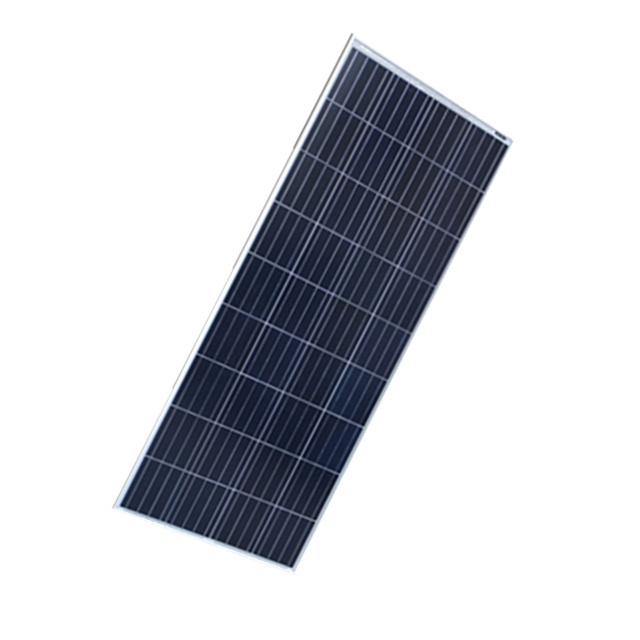

High quality solar panels price 15W 20W 25W 35w 50w 100w pv panel poly solar panel 12v
Electrical Characteristic:
|
Module type |
|
HT-P100W-36P |
|
Peak power |
W |
100 |
|
Power Output Tolerance |
% |
+3 |
|
Module Efficiency |
% |
12.25 |
|
Optimum Operating Voltage(Vmp) |
V |
17.76 |
|
Optimum Operating Current(Imp) |
A |
5.63 |
|
Open-Circuit Voltage(Voc) |
V |
21.85 |
|
Short-Circuit Current(Isc) |
A |
6.05 |
|
Maximum system voltage |
DC1000V |
|
|
Warranty: 5 years product defect warranty. 25 years power output warranty: 90% in 10 years, 80% of 25 years. |
||
Mechanical Characteristics:
|
Module type |
HT-P100W-36P |
|
Cell dimension |
156*156mm |
|
No. of Cells |
36(4*9) pieces |
|
Size |
960*670*30mm |
|
Weight |
8 Kg |
|
Front Glass |
3.2 mm tempered glass |
|
Frame |
Anodized aluminum alloy |
|
Back sheet material |
TPT |
Temperature coefficient:
|
NOCT cell |
46±2°c |
|
Temperature coefficient Isc(%) |
+0.04±0.015%/°c |
|
Temperature coefficient Voc(%) |
-0.3±0.02%/°c |
|
Temperature coefficient Pm(%) |
-0.45±0.05%/°c |
|
Temperature coefficient Im(%) |
+0.04%/°c |
|
Temperature coefficient Vm(%) |
-0.32±0.02%/°c |
|
Operating temperatures |
-40°c~+90°c |
|
Surface pressure |
60m/s(200kg/m² |
We can also supply:
---Mono and poly solar panels
---Solar power systems
---Solar camping lantern, solar street lights
If you are interested, Pls contact us. Skype: liu.sally53 Whatsapp: + 86 18638128667
