2022 precast concrete t beam machine precast concrete fence mold

2022 precast concrete t beam machine precast concrete fence mold

FOB Reference Price: Get Latest Price

≥1 Sets

US $5300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HENAN WISHES

Voltage:: 380V/50HZ OR CUSTOMIZATION

Power:: 5kw-10kw

Dimension(L*W*H):: Machine dimensions depend on the sizes of beam

Weight:: 1000 kg

Features:: Easy Operation

T beam width:: 12-22CM

T beam Height:: 12-20CM

Raw materials:: Concrete

Concrete beam length:: cutting as per construction

Reinforcement material:: steel wires

Main process:: Puhsing and extrusion

Finished products:: load-bearing concrete beam

Capacity:: 300-450 meters per hour

Usage:: For roofing

Advantages:: High Efficent

Quick Details

Application:: Building materials machinary

Production Capacity:: 1.3-1.5m/min

Place of Origin:: Henan, China

Brand Name:: HENAN WISHES

Voltage:: 380V/50HZ OR CUSTOMIZATION

Power:: 5kw-10kw

Dimension(L*W*H):: Machine dimensions depend on the sizes of beam

Weight:: 1000 kg

Features:: Easy Operation

T beam width:: 12-22CM

T beam Height:: 12-20CM

Raw materials:: Concrete

Concrete beam length:: cutting as per construction

Reinforcement material:: steel wires

Main process:: Puhsing and extrusion

Finished products:: load-bearing concrete beam

Capacity:: 300-450 meters per hour

Usage:: For roofing

Advantages:: High Efficent

Product Overview

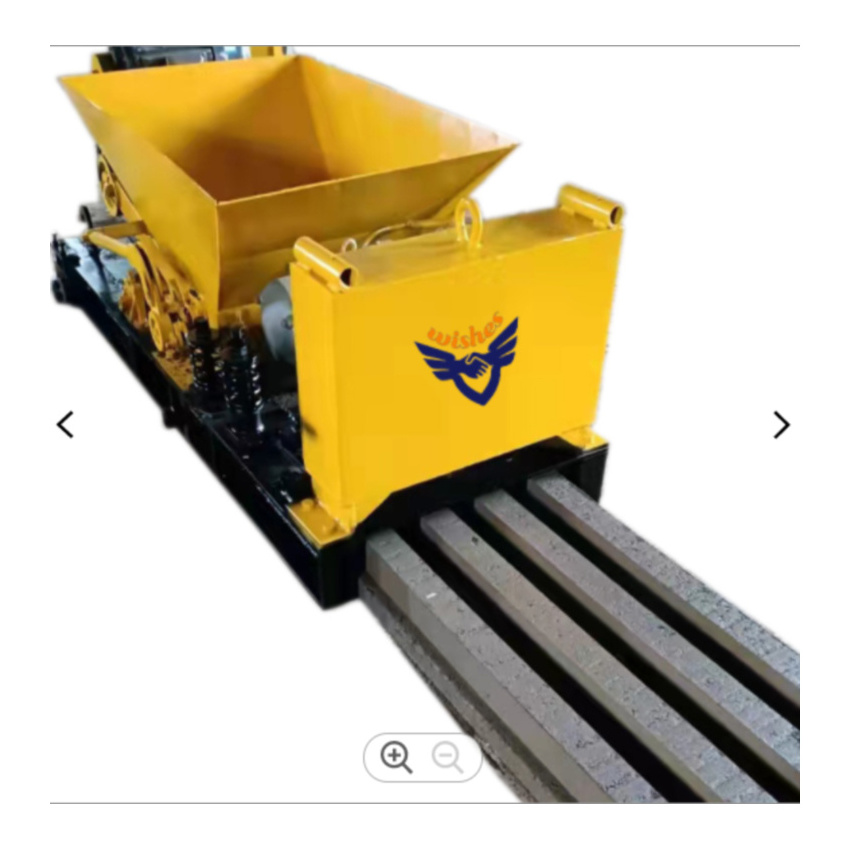

Precast Prestressed Concrete T Beam Machine

The prestressed concrete t beam machine is one of the new designs for manufacturing prestressed concrete T beams. The machine work on the principle of slipfomer. This gives them an exceptional amount of dimensional stability. Its production efficiency is 4-5 times compared to the traditional molding method. The finished concrete beams cast by the machine are very compact and smooth.
According to the different customers' requirements, we can design the machine to make the different sizes of T beams.

FEATURES AT A GLANCE

Features

1.Easy to operate and the operators do not require special skills

2. Efficient production. 4-6rows of concrete beams can be completed with few minutes

3. More compact concrete beam with good finished quality
4. The size of finished beam accurate

5. The structure of mahcine is simple .Easy to maintain .

6. Only need 2-3 manpower for whole production progress

We can customize the machine as per your Required T beam sizes

The t beam can be reinforced with 3-6 steel wires

Vibration cores

PRODUCT SPECIFICATIONS

No	Models	Beam sizes	No. of beams	Motor Power
1	TWT13X10	13X10CM	6 beams	4 KW
2	TWT-12X12	12X12CM	6 beams	4.5KW
3	TWT13X15	13X15CM	4\|6 beams	5.5KW
4	TWT-15X22	15X22CM	4 beams	7.5KW
5	TWT-22X25	22X25CM	3 beams	10KW
