Quick Details
-
Cutting Depth:
-
800mm
-
Rotary Speed:
-
3000 r/min
-
Voltage:
-
220v
-
Power:
-
22kw, Electric
-
Weight:
-
78 kg
-
Dimension(L*W*H):
-
471mm*200mm*415.5mm
-
Power Source:
-
Electric
-
Product name:
-
High Frequency Wall Saw Machines
-
Application:
-
cutting concrete bloack and stone
-
Model:
-
TDQJ
-
Features:
-
super power
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TD
-
Cutting Depth:
-
800mm
-
Rotary Speed:
-
3000 r/min
-
Voltage:
-
220v
-
Power:
-
22kw, Electric
-
Weight:
-
78 kg
-
Dimension(L*W*H):
-
471mm*200mm*415.5mm
-
Power Source:
-
Electric
-
Product name:
-
High Frequency Wall Saw Machines
-
Application:
-
cutting concrete bloack and stone
-
Model:
-
TDQJ
-
Features:
-
super power

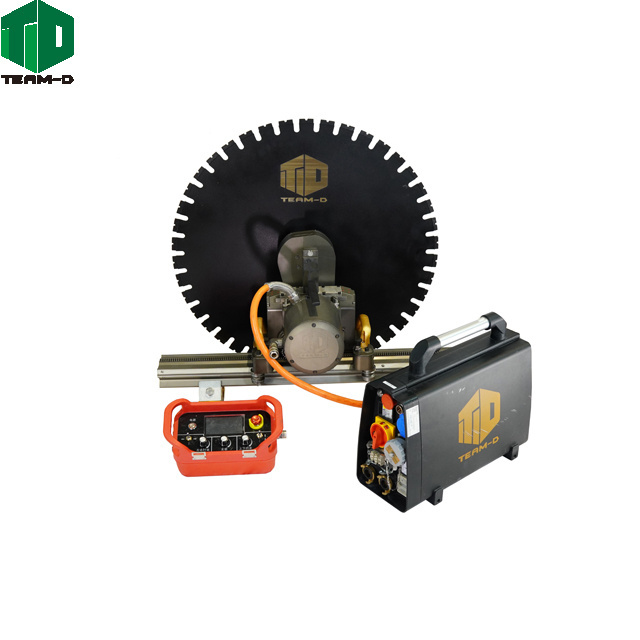

High Frequency Wall Saw Machines
Team-D
Product Display
| Technical Parameters Of Tiandi High Frequency Wall Sawing Machine | |||
| Driver Basic Parameters | Input Properties | Input Voltage Range | Three-phase five-wire 380~420VAC±15% or single-phase 220VAC±15% (requires frequency reduction, use special connector) |
| Input Frequency Range | 50~60Hz±5% | ||
| 380~420V Input | Main Output Voltage Range | 0~380VAC | |
| Main Output Frequency Range | 0~400Hz | ||
| Main Rated Output Current | 0~45A | ||
| 220V Input | Rated Current Range | 0~35A | |
| Frequency Range | 0~200Hz | ||
| Rated Speed | 3000r/min | ||
| Basic Skills | Cooling Method | Water Cooling | |
| Motor Type | Support Synchronous Motor | ||
| Starting Method | Remote Control Start | ||
| Shutdown Mode | Freewheel Stop Or Deceleration Stop | ||
| Interface Display And Control | Supports Local Wired Or Bluetooth Remote Control Operation And Lcd Display | ||
| Self-Identification Function | Support Automatic Cruise | ||
| Failsafe | Power Supply Phase Loss, Motor Overload, Phase Loss, Short Circuit Fault | ||
| Interface Display | Lcd Display | Display Information About The Control System | |
| Other | Protection Level | IP65 | |
| Storage Temperature | -40~+70℃ | ||
| Dimensions | 471mm*200mm*415.5mm | ||
| Total Weight | 17.5KG | ||
| Drive Head Basic Parameters | Drive Motor Parameters | Motor Rated Power | 22kW |
| Motor Rated Frequency | 400Hz | ||
| Motor Rated Speed | 6000r/min | ||
| Motor Rated Voltage | 380V | ||
| Motor Rated Current | 45A | ||
| Motor Rated Torque | 288Nm | ||
| Motor Weight | 16KG | ||
| Auxiliary Motor Parameters | Rated Voltage | 24V | |
| Rated Power | Less than 100W | ||
| Other | Dimensions | 347mm*410mm*388mm | |
| Total Weight | 39KG | ||
| Other | Track | 1000mm | Weight: 5.5KG |
| 1500mm | Weight: 8.5KG | ||
