Quick Details
-
Throat Depth (mm):
-
110 mm
-
Width of Working Table (mm):
-
5300 mm
-
Dimension:
-
3100x5300x2600mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ABSOLUTE
-
Year:
-
2024
-
Weight (KG):
-
14300
-
Motor Power (kw):
-
11 kw
-
Product name:
-
Panel Center Bender
-
Keyword:
-
Panel Center Bender
-
Type:
-
Hydraulic Bending Tools
-
Application:
-
Stainless Plate Bending
-
Raw Material:
-
Sheet
-
Control system:
-
HC15E-S Touch Screen
-
CNC or not:
-
CNC BendingMachine
-
Color:
-
Customer Choose
-
Material:
-
Metal Steel Sheet
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
3200
-
Slider Stroke (mm):
-
110 mm
-
Throat Depth (mm):
-
110 mm
-
Width of Working Table (mm):
-
5300 mm
-
Dimension:
-
3100x5300x2600mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ABSOLUTE
-
Year:
-
2024
-
Weight (KG):
-
14300
-
Motor Power (kw):
-
11 kw
-
Product name:
-
Panel Center Bender
-
Keyword:
-
Panel Center Bender
-
Type:
-
Hydraulic Bending Tools
-
Application:
-
Stainless Plate Bending
-
Raw Material:
-
Sheet
-
Control system:
-
HC15E-S Touch Screen
-
CNC or not:
-
CNC BendingMachine
-
Color:
-
Customer Choose
-
Material:
-
Metal Steel Sheet
-
Certification:
-
CE
Products Description

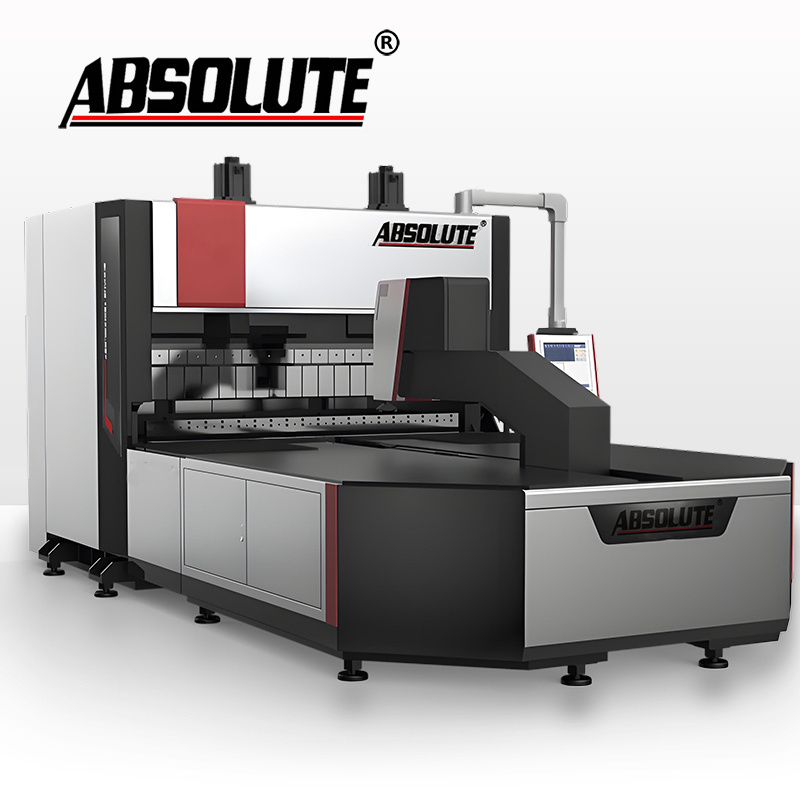

ABSOLUTE Full electric SERVO CNC Intelligent and Flexible Bending Center
This bending center can be intelligent and flexible to bend sheet metal panel's edges as per complicated combinations of various angles of edges , specially continuously bending up and down without replacing bending blades .
The whole machine includes four main parts:
(1). Bottom fabricated and welded heavy structure, which is integrally fabricated and holistically welded with super high-strength steel, ,which make the machine have a huge tonnage weight and stable gravity center. These features can ensure our machine have a long-term stability of bending accuracy, better reliability and good durability . the whole structure bodies also are treated by heat treatment such as stewing technology, tempering treatments, which make the structure have a strong rigidity and remove internal stress, stress relief, specially prolong and extend the service life of machine and improve its positioning precision.
(2). Upper fabricated and welded heavy structure, with pressing blades and hinge blades, which is fabricated ,welded and treated as same as bottom structure.
(3). The mobile fabricated and welded heavy bracket for bending blades of upward and downward ,which is fabricated ,welded and treated as same as bottom structure.
(4). Feeding system: Working table with C-type mobile strong clamping arms to control and operate the sheet metal panel flexibly, or you can choose the mobile suction-cups plate to control and operate the sheet metal panel flexibly.
(5). Worktable also has enough hard brushes and rolling stainless steel beads to protect sheet metal panel when processing .
Weighted body
sucked type
Using a pure electric servo full closed-loop system, the bending action is smooth, the mechanical operation coordination is high the combination of various complex actions can be realized smoothly, and the working efficiency of the whole machine is very high. The suction cup feeding mode can realize 360 * random rotation, and the loading and unloading operation is simple, which greatly improves the safety of operators, easy to operate and safe.
Universal mold
It can automatically adapt to various geometric shapes and achieve mass production.
(B) is a material press,
(C) Fastening plate during bending
(D) Can be bent upward
The system is equipped with a 2D simulation display that can simulate the schematic diagram of the currently programmed molded workpiece.
On-site physical pictures
Technical Specifications
|
Technical parameter
|
Flexible bending center model
|
|
|
||
|
model
|
AB-1400
|
AB-2000
|
AB-2500
|
||
|
Feeding mode
|
sucked type
|
Pressure Arm Type
|
Pressure Arm Type
|
||
|
Bending Length
|
1400mm
|
2000mm
|
2500mm
|
||
|
Max bending height
|
170mm
|
170mm
|
170mm
|
||
|
Min bending height
|
4mm
|
4mm
|
4mm
|
||
|
Min forming size of one side
|
160mm
|
180mm
|
180mm
|
||
|
Bending angle
|
0-180°
|
0-180°
|
0-180°
|
||
|
Number of control axes
|
9
|
10
|
10
|
||
Workpiece diagram
