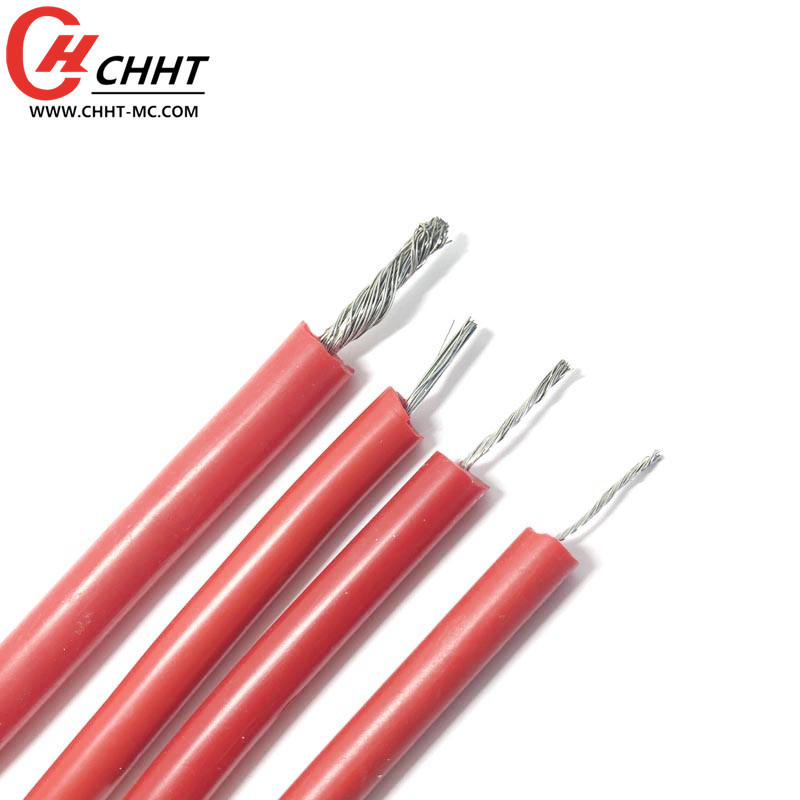

Silicone electronic wire high temperature resistant 200 degree wire 5KV 10KV 20KV 30KV high voltage resistant wire

Silicone electronic wire high temperature resistant 200 degree wire 5KV 10KV 20KV 30KV high voltage resistant wire

FOB Reference Price: Get Latest Price

≥1 Rolls

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Insulation Material:: Silicone Rubber

Place of Origin:: Shanghai, China

Brand Name:: CHHT

Test report:: Available

Temperature range:: -60℃~+200℃

Samples:: Available

Color:: Red,white,black etc.

MOQ:: 100meters/roll

Quick Details

Application:: Heating

Conductor Material:: Tinned Copper

Conductor Type:: Stranded

Insulation Material:: Silicone Rubber

Place of Origin:: Shanghai, China

Brand Name:: CHHT

Test report:: Available

Temperature range:: -60℃~+200℃

Samples:: Available

Color:: Red,white,black etc.

MOQ:: 100meters/roll

Brand	CHHT
Origin	ShangHai
Product Name	Silicone electronic wire high temperature resistant 200 degree wire 5KV 10KV 20KV 30KV high voltage resistant wire
Insulation	Silione Rubber
Conductor	Tinned Copper
Test Report	Available
Temperature Range	-60℃~+200℃
Rated Voltage	5KV,10KV,15KV,20KV,25KV,30KV,50KV,100KV
O.D.Tolerance	±0.1mm
Colour	Red/White/Black,etc.
Package	Cardon or Wooden
Usage	Industrial

Our packaging .

100 meters a roll

Outer Packing： Nylon wrap（ To keep the thread from fraying ）

Used in gas ignition, automobile ignition, high-voltage test-bed, television, microwave oven, neon lamp, instrument internal high-voltage, installation and connection of electronic appliances and other equipment of high-voltage occasions

Voltage level	Conductor area mm2	Conductor construction NO.×mm	Outer Diameter mm	Conductor Resistance DC 20℃Ω/KM
5KV	0.5	16/0.2	3.12	40.1
	0.35/22	1.0	32/0.2	3.5	20.0
	0.50/20	1.5	30/0.25	3.78	13.7
	0.75/18	2.5	49/0.25	4.21	8.21
10KV	0.5	16/0.2	3.52	40.1
	1.50/15	1.0	32/0.2	3.9	20.0
	2.0/14	1.5	30/0.25	4.18	13.7
	2.5	2.5	49/0.25	4.62	8.21
15KV	0.5	16/0.2	4.12	40.1
	6.0	1.0	32/0.2	4.9	20.0
	10	1.5	30/0.25	5.18	13.7
		2.5	49/0.25	6.01	8.21
20KV	0.5	16/0.2	5.02	40.1
		1.0	32/0.2	5.52	20.0
		1.5	30/0.25	6.4	13.7
		2.5	49/0.25	7.2	8.21
25KV	0.5	16/0.2	6.32	40.1
		1.0	32/0.2	6.9	20.0
		1.5	30/0.25	7.18	13.7
		2.5	49/0.25	8.41	8.21
30KV	0.5	16/0.2	7.72	40.1
		1.0	32/0.2	8.3	20.0
		1.5	30/0.25	8.58	13.7
		2.5	49/0.25	9.6	8.21
