Quick Details
-
Design Style:
-
Scandinavian
-
Place of Origin:
-
Beijing, China
-
Product name:
-
timber beam H20
-
Material:
-
spruce, plywood
-
Color:
-
yellow
-
Width:
-
8 cm
-
Height:
-
20 cm
-
Length:
-
900mm~5900mm
-
Certificate:
-
SGS / ISO9001:2015
-
Shear Capacity (broken loading):
-
24KN
-
Bending Bearing Moment:
-
>11KN.M
Quick Details
-
Warranty:
-
1 Year
-
Project Solution Capability:
-
graphic design
-
Application:
-
Villa
-
Design Style:
-
Scandinavian
-
Place of Origin:
-
Beijing, China
-
Product name:
-
timber beam H20
-
Material:
-
spruce, plywood
-
Color:
-
yellow
-
Width:
-
8 cm
-
Height:
-
20 cm
-
Length:
-
900mm~5900mm
-
Certificate:
-
SGS / ISO9001:2015
-
Shear Capacity (broken loading):
-
24KN
-
Bending Bearing Moment:
-
>11KN.M

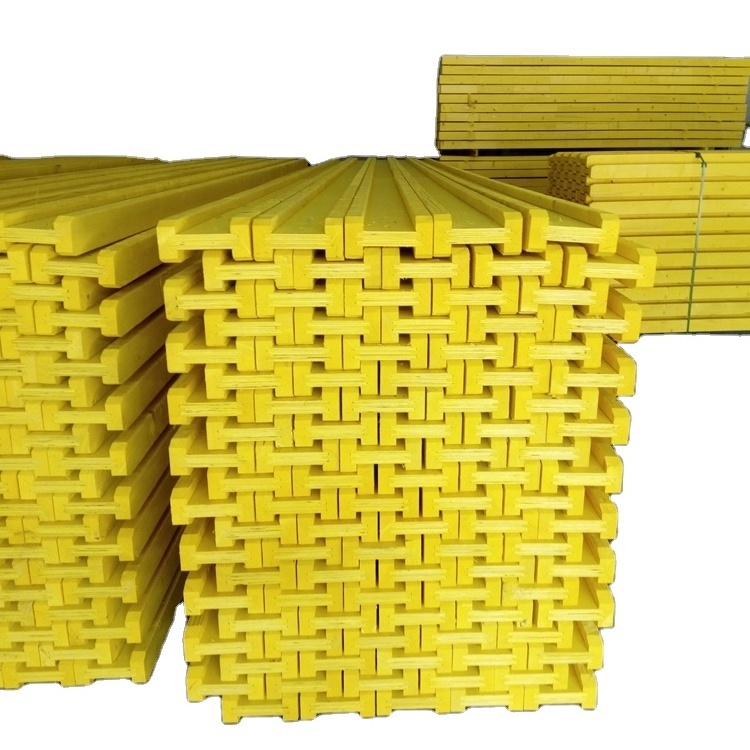

ZULIN construction H20 Timber Beam
Introduction
Timber beam is an important part of formwork system, and has a very wide range of application in engineering.
Standard Specifications
End-to-end-joint
According to the need, standard holes can be drilled in the two ends of timber beam. We can lengthen the timber beam by end-to-end join. According to customers’ demand, we can produce timer beams with any length.
Parameters
| PARAMETERS | |
| Model | timber beam H20 |
| Width | 8 cm |
| Height | 20 cm |
| Length | 900mm~5900mm |
| Flange | 40*80mm |
| Web | 26mm |
|
Shear Capacity (broken loading)
|
24KN |
| Bending Bearing Moment | 11KN.M |
Raw Material
Raw material is spruce wood improted from Fenland.
Carpentry Workshop
Test Report
Packing and Shipment
For 20’ feet container: maximum loading capacity is 2260m
For 40’ (GP) feet container: maximum loading capacity is 4600m
For 40’ (HQ) feet container: maximum loading capacity is 5000m
