Quick Details
-
Brand Name:
-
OLYCOM
-
Product name:
-
Industrial POE managed switch
-
Fiber Type:
-
SFP slot
-
Certification:
-
ISO9001, FCC, CE
-
Dimensions:
-
158*115*60mm
-
Power supply:
-
48V
-
Distance:
-
20Km
-
Product type:
-
Industrial fiber switch
-
Warranty:
-
3 Years
-
OEM/Customization:
-
Available
-
Application:
-
Transportation, telecommunications and industrial fields
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
IM-FP166GW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OLYCOM
-
Product name:
-
Industrial POE managed switch
-
Fiber Type:
-
SFP slot
-
Certification:
-
ISO9001, FCC, CE
-
Dimensions:
-
158*115*60mm
-
Power supply:
-
48V
-
Distance:
-
20Km
-
Product type:
-
Industrial fiber switch
-
Warranty:
-
3 Years
-
OEM/Customization:
-
Available
-
Application:
-
Transportation, telecommunications and industrial fields
Product Description

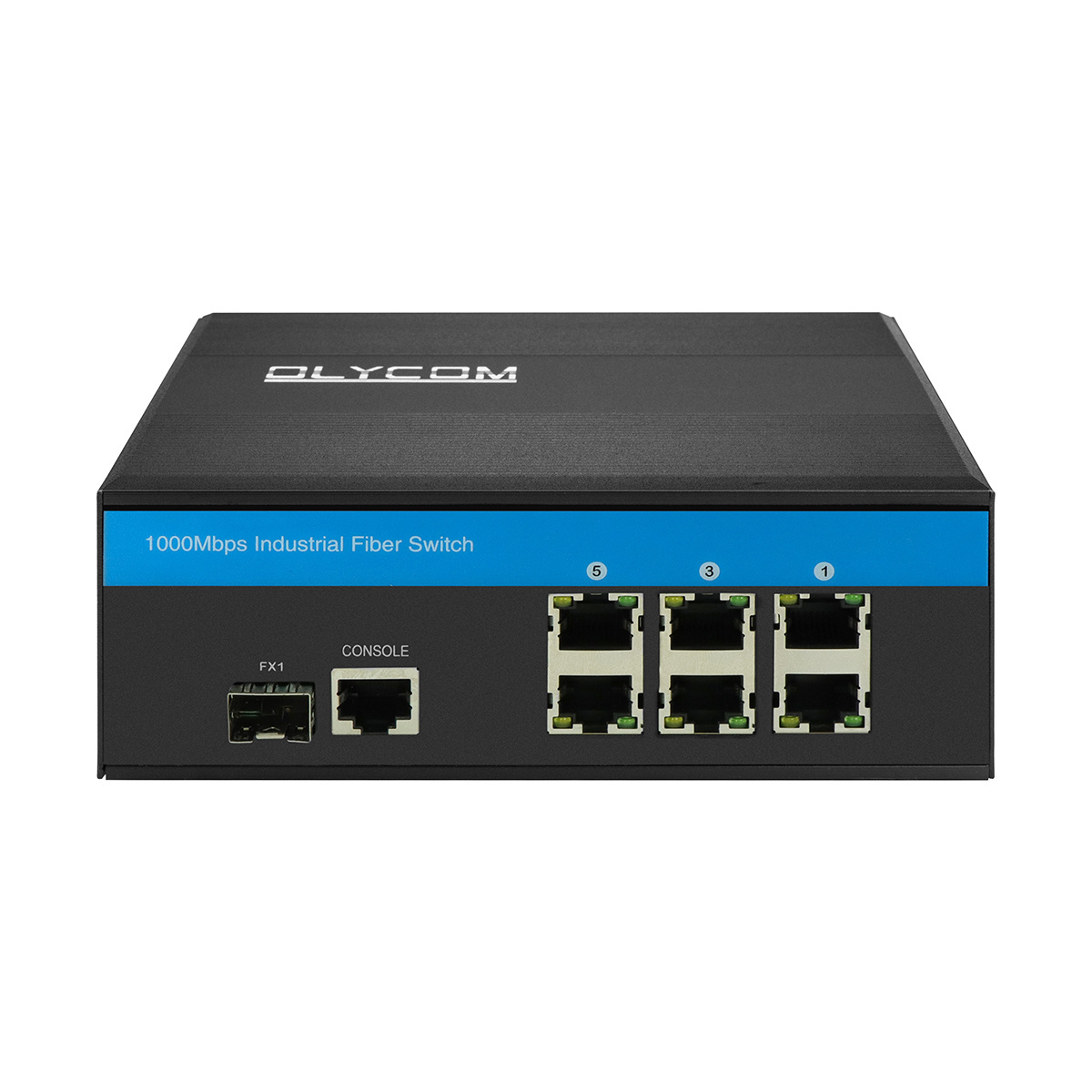

Din rail sfp 48V 1000M Ethernet 6 port industrial poe PSE managed switch
|
IEEE 802.3af/at power on to 1 ~ 6 RJ45 ports
|
|
6 x 10/100/1000Mbps Auto-sensing RJ45 ports
|
|
Support Auto MDI/MDIX
|
|
Operating environment temperature:-40 ° ~85 ° c
|
|
Support cable diagnosis and can locate the fault point
|
|
Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
|
|
Support IGMP agent report, MLD snooping
|
|
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
|
|
Product Name
|
10/100/1000Mbps Managed Industrial POE Fiber Switch (1F+6TP)
|
|
Model No.
|
IM-FP166GW
|
|
Port
|
1 x 1000Mpbs SFP port
SM：1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM：1310nm, 2Km; 6x10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing） |
|
Standard
|
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344,
IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
|
VLAND ID
|
4096
|
|
Jumbo Frame
|
9.6KB
|
|
MAC Address Table Size
|
8K
|
|
Switching features
|
Transmission mode：storage and forward
System bandwidth：40Gbps (non-traffic jam) |
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port，transmission distance: 20Km，40Km，60Km，80Km，100Km |
|
LEDs
|
Power, network, fiber
|
|
Power supply
|
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~6) (802.3at standards required special instructions) |
|
Environment
|
Working Temp：-40°～ 85°C ; Storage Temp：-40°～ 85°C;Working humidity：10%～90%, non-condensing; Storage humidity：10%～95%,
non-condensing |
|
Industry Standards
|
EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control：NEMA-TS2; Vibration：IEC 60068-2-6; Freefall：IEC 60068-2-32; Shock：IEC 60068-2-27; Rail Traffic：EN 50121-4 |
|
Safety
|
CE Mark ,commercial ; CE/LVD EN60950
|
|
Mechanical information
|
Shell：Corrugated metal shell; Safety class：IP44;
Dimension：158 x 114.8 x 60mm; Mounting method：Din-rail mounting |
|
Warranty
|
Replacement within 1year; 5 years repairing
|
Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression , differentiated services
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
Application
48V 6 rj45 ports gigabit fiber network industrial poe switch over copper cable
Hot-selling Products
About Us
Packaging and Shipping
Packaging
Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
Grey color, corrugated metal case.
Shipping
We deliver goods from our stock by Express like DHL, UPS,FedEx, TNT and EMS.
Around 2~4 working days to deliver an order of about MOQ.
