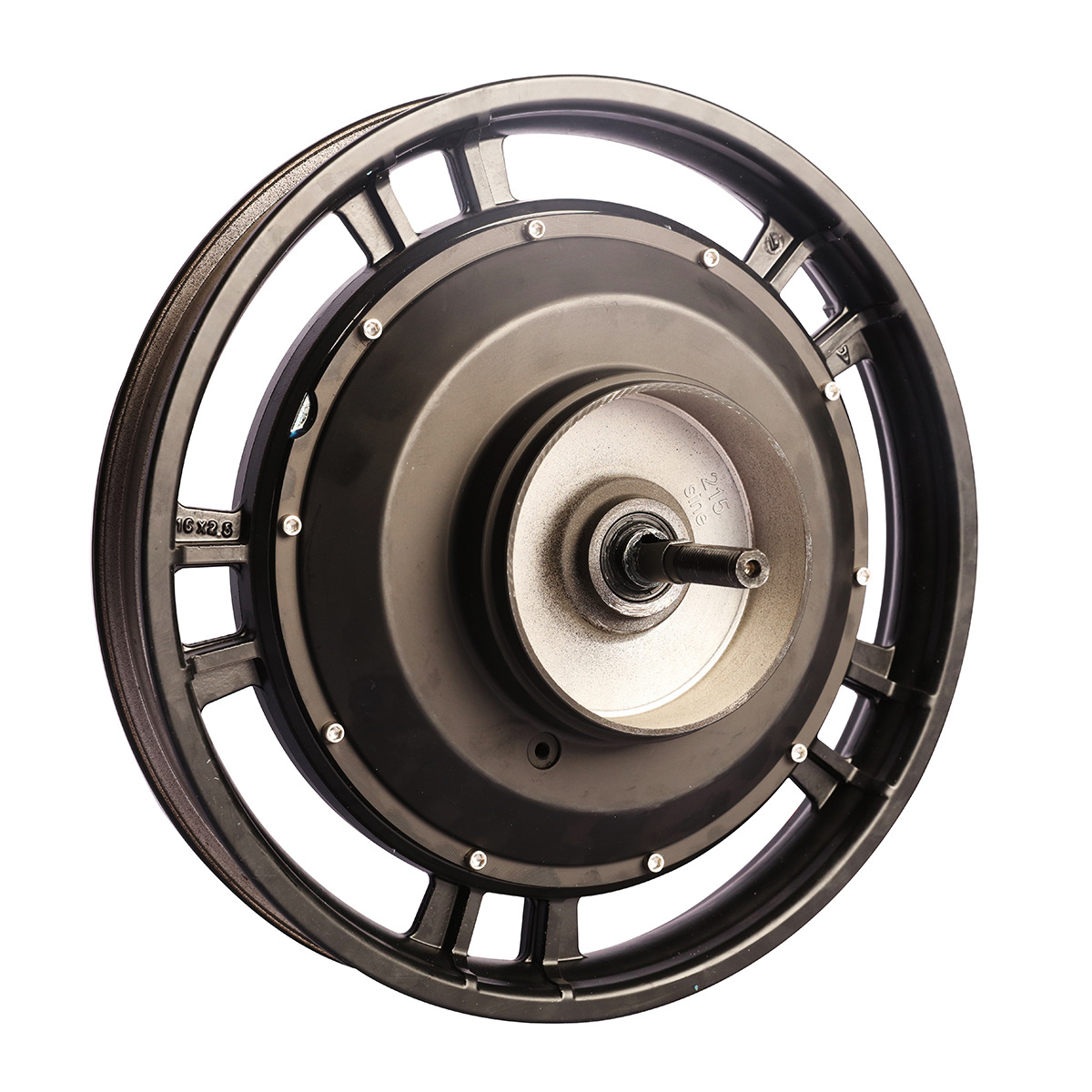

1000W 16 Inch All-in-One Hub Motor BLDC Bicycle Wheel DC Motor Brushless for Electric Motor

1000W 16 Inch All-in-One Hub Motor BLDC Bicycle Wheel DC Motor Brushless for Electric Motor

FOB Reference Price: Get Latest Price

≥10 Pieces

US $85

≥200 Pieces

US $78

≥500 Pieces

US $71

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: Other

Place of Origin:: Jiangsu, China

Brand Name:: Sine

Model Number:: 16inch all-in-one motor

Torque:: >72Nm

Features:: Explosion-proof/Totally Enclosed/Waterproof

Rated power:: 400/800W

Maximum speed:: 35km/h-50km/h

Maximum torque:: >72Nm

Colour:: Matt black/silver

Motor on gear:: 170mm

Quality:: High quality

Power type:: DC motor

Quick Details

Speed(RPM):: 400/800W

Continuous Current(A):: 5A

Efficiency:: ≥85%

Warranty:: Other

Place of Origin:: Jiangsu, China

Brand Name:: Sine

Model Number:: 16inch all-in-one motor

Torque:: >72Nm

Features:: Explosion-proof/Totally Enclosed/Waterproof

Rated power:: 400/800W

Maximum speed:: 35km/h-50km/h

Maximum torque:: >72Nm

Colour:: Matt black/silver

Motor on gear:: 170mm

Quality:: High quality

Power type:: DC motor

Design	Brushless
Place of Origin	China
Size	16 inch
Protect Feature	Waterproof/Explosion-proof/Totally Enclosed
Working voltage	DC48V
No load speed	490±10rpm
Rated power	400/800W
Efficiency	≥85%
Maximum torque	＞72Nm
Maximum speed	35km/h-50km/h
Motor on gear	170mm
Brake type	Drum/Disc brake
Colour	Matt black/silver
Applicable models	Electric motorcycle
Quality	High quality

Wuxi Sine Power Technology Co.,Ltd.

Founded in July 2010, the company is known as the "originator of electric vehicle power and control technology". We mainly produce electric vehicle motors, controllers, and “multi-mode common rail” electric drive system products, and the quartet of intelligent products. In 2020, we established the Sine Power Research Institute and cooperated with Southeast University to establish a team of more than 100 people for technical R&D, quality control, and technical service. So far, with more than 100 technology patents, including 27 invention patents.

1. Q: Can I get samples before my formal order?
A: Yes, special sample services are available. And the sample cost can be relived once the formal

order comes.

2. Q: How do you control the quality?
A: 1. Provide sample test report confirmation; 2. Seal sample confirmation. 3. Shoot production

videos during the production process; 4. Send out test reports and test videos when the products

are off- line; 5. Use foam cartons and woven bags for packaging, and the perfect packaging

method ensures that the products are not damaged during transportation.

3. Q: Can I get a customize service?
A: Yes, ODM OEM services are available. (Appearance color, decal, power, etc. can be customized if

the quantity can be above 50 sets)

4. Q: What is the warranty time of your products?
A:The motor and controller are guaranteed for 18 months.

5. Q: How about payment terms and price terms?
A: Payment Terms: EXW,FOB,CNF/CFR,CIF,L/C, etc. Price Terms: Sample list 100%;Regular order

100% TT or 100% L/C or 30%TT,70%L/C.The specific payment method can be negotiated.

6. Q: What's the approximate lead time?
A: After the advanced payment confirmed, normally 5 days for stock products，15 days for

conventional models , and 30 days forspecial models.
