Quick Details
-
Place of Origin:
-
Shanghai, China
-
Name:
-

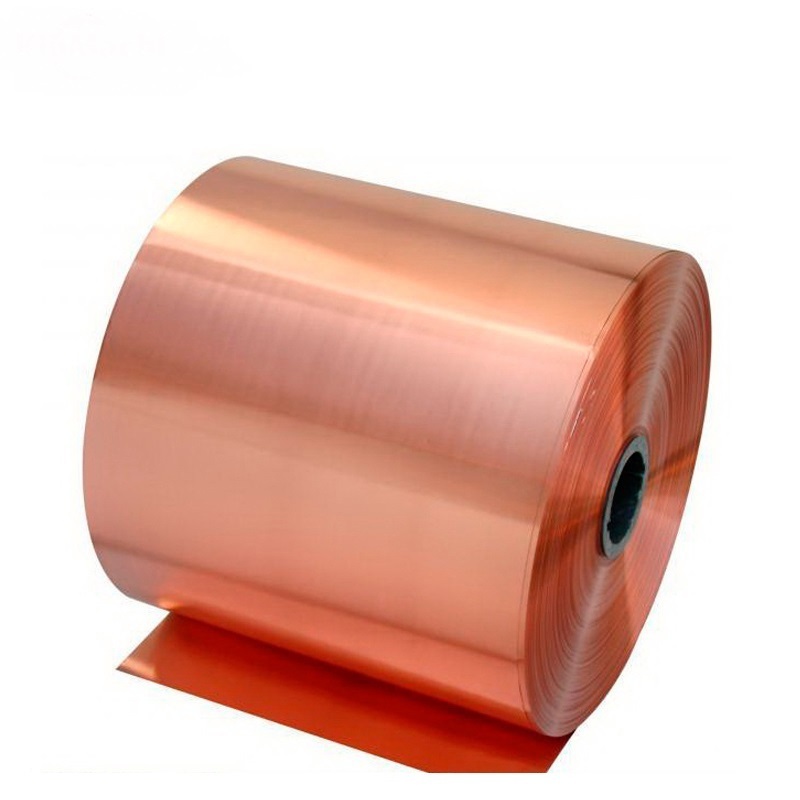

China manufacture Oxygen free copper C10200
-
Shape:
-
Coil/Roll
-
Color:
-
Red
-
Surface:
-
Smooth
-
Temper:
-
Soft 1/4H 1/2H H EH
-
Electrical Conductivity%IACS:
-
>101
-
State:
-
Custom
-
Package:
-
Fumigation Wooden Package
-
Standard:
-
JIS UNS EN DIN
-
Certification:
-
SGS
Quick Details
-
Material:
-
Red Copper
-
Cu (Min):
-
99.95%
-
Alloy Or Not:
-
Non-Alloy
-
Place of Origin:
-
Shanghai, China
-
Name:
-
China manufacture Oxygen free copper C10200
-
Shape:
-
Coil/Roll
-
Color:
-
Red
-
Surface:
-
Smooth
-
Temper:
-
Soft 1/4H 1/2H H EH
-
Electrical Conductivity%IACS:
-
>101
-
State:
-
Custom
-
Package:
-
Fumigation Wooden Package
-
Standard:
-
JIS UNS EN DIN
-
Certification:
-
SGS
C10200 oxygen free high conductivity copper
Material introduction : C10200 (OF CW008A)
OF Cu C10200 oxygen-free copper, also known as tough copper, has a copper content of 99.95%
or more.It has excellent electrical and thermal conductivity, tensile properties, good solderability, corrosion
resistance and applicability, and even in reducing properties. Heating to a high temperature in a gas does
not cause hydrogen embrittlement and can be widely used as a conductive material.
Material Features:
1. Cu content is above 99.95%, and oxygen content is controlled within 10 PPM
2. Soft tire OFC C10200 conductivity IACS can reach more than 100%
3. Excellent electrical conductivity, thermal conductivity, tensile properties, good solderability
4. Under high temperature conditions, no brittle phenomenon occurs in the reducing gas.
| High Conductivity Copper C10200 | ||||||||
| Standard | ||||||||
| DIN | EN | ASTM | JIS | |||||
| Material code | No. | Material code | No. | UNS No. | JIS No. | |||
| OF-Cu | 2.004 | Cu-OF | CW008A | 10200 | C1020 | |||
| Applications | ||||||||
| Submarine fibre optic cable Coaxial cables and waveguides Heat sinks Lithium battery sheet Leadfeames for semiconductors | ||||||||
| Chemical Composition (%) | ||||||||
| Cu | O | |||||||
| ≥99.95 | ≤0.0010 | |||||||
| Electrical conductivity IACS%(20℃) | 100 | Thermal conductivity W/(m*K) | 394 | |||||
| Modulus of elasticity (KN/mm2) | 127 | |||||||
| Merit | ||||||||
| With high purity,excellent thermal and electrical conductivity, great machinability, solder ability and corrosion resistance | ||||||||
| Mechanical Properties | ||||||||
| Temper Class | Temper | Tensile Strength | Yield Strength | Elongation A50 | Vickers Hardness | Bending Test | ||
| 90 degree (R/T) | ||||||||
| (Rm,Mpa) | (Rp0.2,Mpa) | (%) | (HV) | GW | BW | |||
| R220 | O | 220-260 | 140max | 33min | 40-65 | 0 | 0 | |
| R240 | 1/4H | 240-300 | 180min | 8min | 65-95 | 0 | 0 | |
| R290 | H | 290-360 | 250min | 4min | 90-110 | 0 | 0 | |
|
R360 |
EH | 360min | 320min | 2min | 110min | 0 | 0.5 | |
usbars (busbars, electric vehicle conductive strips), power module substrates, heat sinks, lithium ion
battery connector lead electrodes, transformer coil materials, gaskets, busbar busbars, electrical and
electronic conductors, superconductor matrices, vacuum tubes, glass - metal seals , power substation.
