Quick Details
-
Brand Name:
-
Unionwell
-
Model Number:
-
G1003-150S12AU, G1003-150S07A
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40℃~85℃, -40℃~85℃
-
Protection Level:
-
IP00
-
Product Name:
-
Subminiature micro switch
-
Payment Terms:
-
T/T,Western Union
-
Terminal Type:
-
Solder terminals
-
Operating Force:
-
150gf max.
-
Lever type:
-
Small simulated roller lever
-
Circuit Code:
-
SPDT
-
Electrical life:
-
6,000 cycles Min.
-
Color:
-
White
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125VAC 250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G1003-150S12AU, G1003-150S07A
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40℃~85℃, -40℃~85℃
-
Protection Level:
-
IP00
-
Product Name:
-
Subminiature micro switch
-
Payment Terms:
-
T/T,Western Union
-
Terminal Type:
-
Solder terminals
-
Operating Force:
-
150gf max.
-
Lever type:
-
Small simulated roller lever
-
Circuit Code:
-
SPDT
-
Electrical life:
-
6,000 cycles Min.
-
Color:
-
White
|
Brand Name
|
Unionwell
|
|
Model Number
|

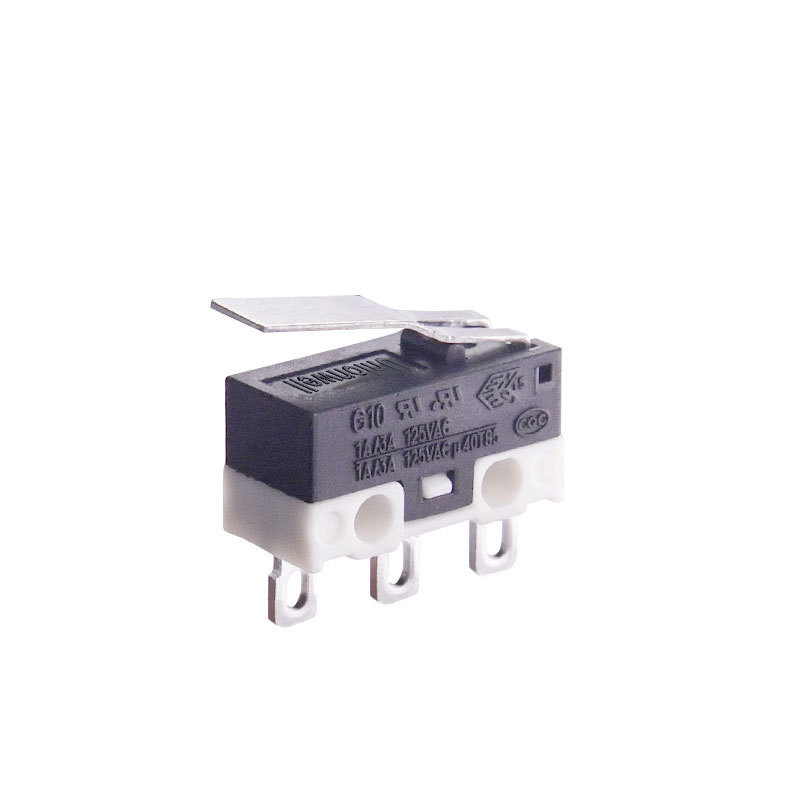

G10 Series Subminiature Micro Switch
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250VAC
|
|
Protection Level
|
IP40
|
|
Product Name
|
G10 Series Subminiature Micro Switch
|
|
Electrical Rating
|
0.1A 48VDC/125VAC;1A/3A 125VAC
|
|
Electrical Operating Frequency
|
10~30 cycles/minute
|
|
Mechanical Operating Frequency
|
120 cycles/minute
|
|
Insulation Resistance
|
At 500VDC, 100M Ω Min
|
|
Storage Humidity
|
85% RH Max
|
|
Storage Temperature
|
-40 ℃ ~ +85℃
|
|
Lever Type
|
Straight/leaf/simulated roller
|
|
Electrical Service Lifre
|
6,000~100,000 cycles(Depends on P/Ns))
|
|
Mechanical Service Life
|
1,000,000/5,000,000/cycles optional
|
|
|
|
