Quick Details
-
Brand Name:
-
EBORM
-
Model Number:
-
BS902-AF-1621GS
-
Place of Origin:
-
Guangdong, China
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
9.2G
-
Brand Name:
-
EBORM
-
Model Number:
-
BS902-AF-1621GS
-
Place of Origin:
-
Guangdong, China

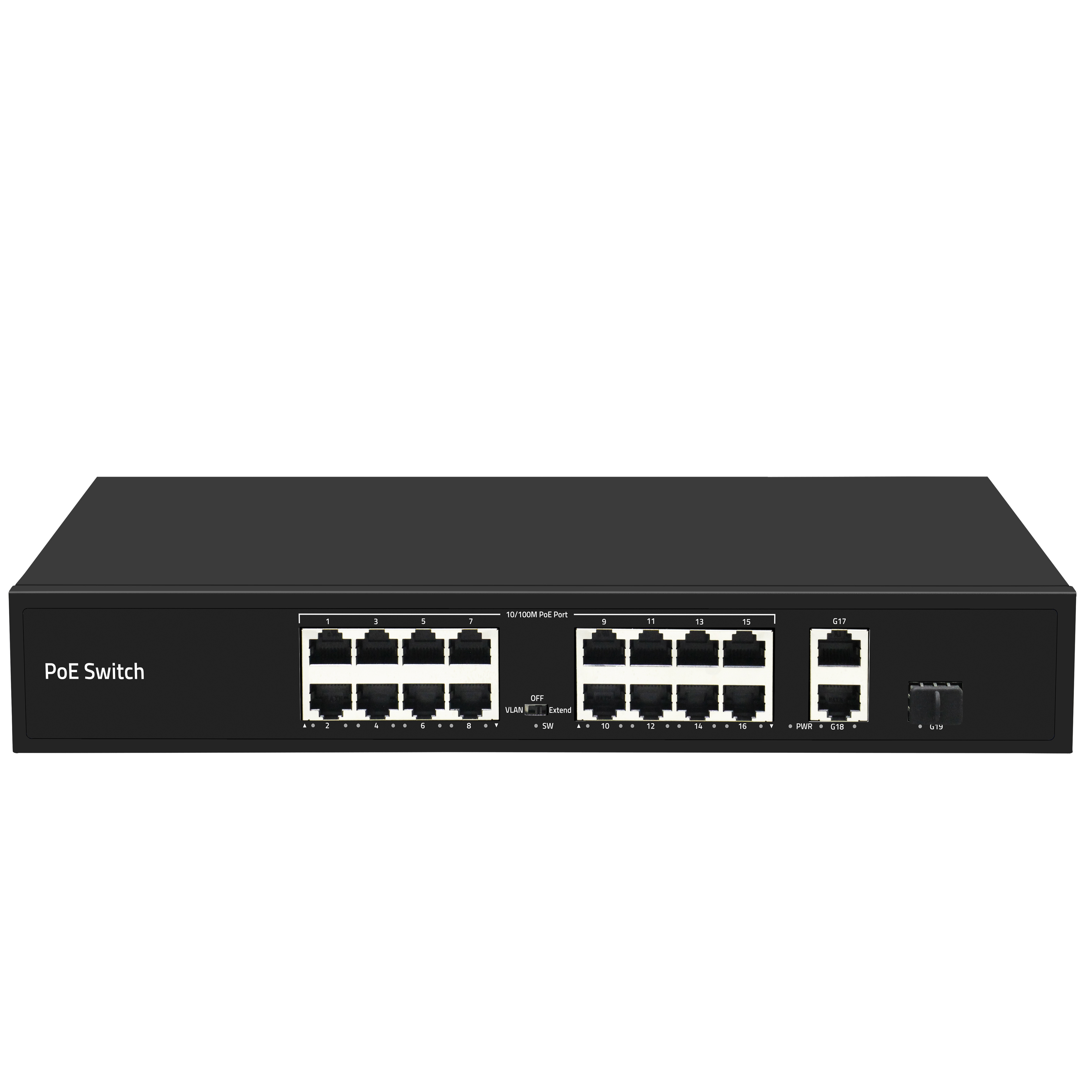

19 P ort s Gigabit Uplink 100M Ethernet Power Switch (P o E Switch), using high-quality high-speed network IC and the most stable P o E chip, P o E P ort support 802.3af and 802.3at standard both , this series of P o E S witch can be 10/100M Ethernet The network provides a seamless connection, and the P o E power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-P o E device intelligently detects no power and only transmits data.
PoE is Power o ver Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.
|
I/O Interface |
|
|
Power |
Input: AC 100-240V, 50/60Hz |
|
Ethernet |
16 * 10/100M PoE Port 2* 10/100/1000M Ethernet Uplink ports 1* Gigabit SFP Uplink Port |
|
Performance |
|
|
Switching Capacity |
9.2Gbps |
|
Throughput |
6.844 Mpps |
|
Packet Buffer |
1.5Mb |
|
MAC Address |
2 K |
|
Jumbo Frame |
9216 bytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hour |
|
Standard |
|
|
Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(10 0 0Base-TX) IEEE802.3z(1000Base- F X) IEEE802.3x (Flow control) |
|
PoE Protocol
|
IEEE802.3af ( 15.4W ) IEEE802.3at ( 30W ) |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) , EN61000-4-4 (EFT) , EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|
Network Medium
|
10Base-T : Cat3 , 4 , 5 or above UTP( ≤ 100m) 100Base-TX : Cat5 or above UTP( ≤ 100m) 100 0 Base-TX : Cat5 or above UTP( ≤ 100m) |
|
Optical Media |
Multimode fiber : 50/125, 62.5/125, 100/140 μ m Single mode fiber: 8/125, 8.7/125, 9/125, 10/125 μ m |
|
Protection |
|
|
Security Certificae |
CE , FCC , RoHS |
|
Environment |
|
|
Working Environment |
Working Temperature : - 2 0~50 ° C Storage Temperature : -40~ 85 ° C Working Humidity : 10%~90% , non-condensing Storage Temperature : 5%~90% , non-condensing Working Height : Maximum10,000 feet Storage heigh : Maximum 10,000 feet |
|
Indication |
|
|
LED Indicators |
PWR ( power supply ) , SW ( DIP ) , 1-19 Green ( Link&Data ) |
|
PWR |
Lighting : Powered Un-Light : No Powe r |
|
SW |
Lighting : VLAN Un-Light : OFF Flashing : Extend |
|
1-19 Green |
Lighting : Connecting Flashing : Data Transmit Un-Light : Disconnect |
|
DIP Switch |
VLAN ,OFF , Extend |
|
VLAN |
Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
|
OFF |
Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive |
|
Extend |
Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
|
Mechanical |
|
|
Structure Size |
Product Dimension (L*W*H): 319*207*45mm Package Dimension (L*W*H): 370*270*85mm N.W : 1.8 kg G.W : 2.3 kg |
|
Packing Info |
Carton MEAS : 440*285*390mm Packing Qty : 5 units Packing Weight : 12.5KG |
|
Power Voltage |
Input Voltage : AC 100-240 V Power supply : 52V 5.76 A /52V3.8A |
|
Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
|
