This EDM piercing machine can process various conductive materials such as stainless steel, hardened steel, carbide, copper and aluminum. It can process materials with a hole diameter of 0.3-3.0mm, and the maximum depth to diameter ratio can reach more than 300:1. The processing speed can reach 30-70mm per minute, and it can pierce directly from bevel and curved surface.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BOBO
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1060*805*2100MM
-
Weight (KG):
-
700
-
Power (kW):
-
3
-
Product name:
-
CNC Small Hole Piercing EDM Perforated Punching Machine
-
Processing speed:
-
70mm/min
-
Machining current:
-
30A
-
Workbench bearing range:
-
200KG
-
Color:
-
Customized Color
-
Power:
-
3KW
-
X-axis travel:
-
450
-
Processing depth:
-
0-300mm
-
Working fluid:
-
water
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2022
-
Brand Name:
-
BOBO
-
Voltage:
-
380
-
Dimension(L*W*H):
-
1060*805*2100MM
-
Weight (KG):
-
700
-
Power (kW):
-
3
-
Product name:
-
CNC Small Hole Piercing EDM Perforated Punching Machine
-
Processing speed:
-
70mm/min
-
Machining current:
-
30A
-
Workbench bearing range:
-
200KG
-
Color:
-
Customized Color
-
Power:
-
3KW
-
X-axis travel:
-
450
-
Processing depth:
-
0-300mm
-
Working fluid:
-
water
Product Description

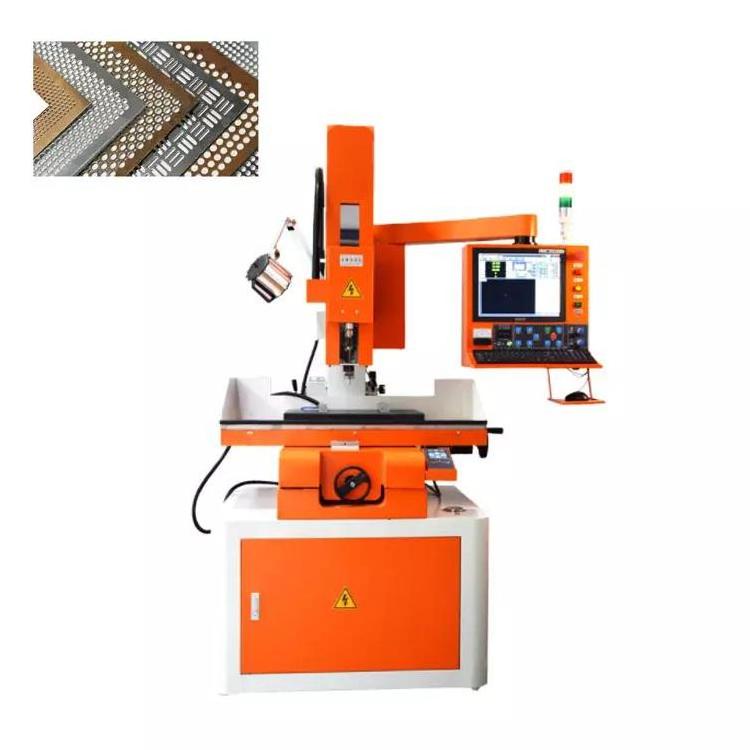

Automatic CNC High Speed Small Hole High Precision Piercing EDM Perforated Punching Machine
Features
1. It can process various conductive materials such as stainless steel, hardened steel, carbide, copper and aluminum.
2. Fast processing speed, can be directly penetrated from bevel and curved surface.
3. All spare parts are made of high quality accessories.
4. Simple operation of the system.
Product details
Product Paramenters
|
1
|
Product name
|
Automatic CNC High Speed Small Hole High Precision Piercing EDM Perforated Punching Machine
|
|
2
|
Processing speed
|
30mm/min
|
|
3
|
Machining current
|
30A
|
|
4
|
Workbench bearing range
|
200KG
|
|
5
|
Color
|
Customized Color
|
|
6
|
Power
|
380V
|
|
7
|
Z-axis travel (secondary)
|
350+300
|
|
8
|
Working fluid drum capacity
|
20L
|
|
9
|
Working fluid
|
Water
|
|
10
|
Machinable hole diameter
|
0.3-3mm
|
