Quick Details
-
Item:
-
media box
-
funciton:
-
Network/wifi/3g
-
language:
-
multi- languages
-
port:
-
H D MI/COM
-
feature:
-
Media box with android system
-
type:
-
1080p mini full hd tv box
-
key word:
-
media box
-
color:
-
black/optional
Quick Details
-
Processor Core:
-
Dual Core
-
Support Resolution:
-
1920 x 1080
-
WiFi:
-
802.11n 2.4G/5GHz
-
Item:
-
media box
-
funciton:
-
Network/wifi/3g
-
language:
-
multi- languages
-
port:
-
H D MI/COM
-
feature:
-
Media box with android system
-
type:
-
1080p mini full hd tv box
-
key word:
-
media box
-
color:
-
black/optional

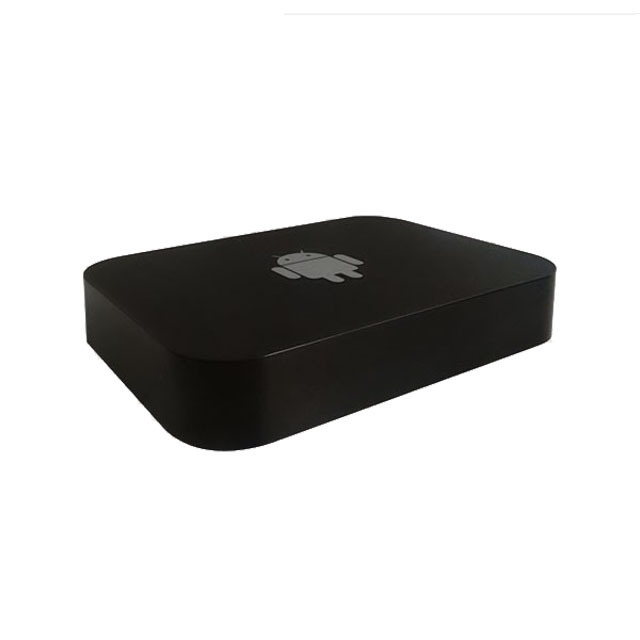

Good quality android tv box full hd media player with Auto play repeat playing function media box(MBOX-06W-A)
Specification:
|
The operating system |
Android 4.0.3 |
|
|
CPU type |
allA10 1.2GHz,Cortex-A8 |
|
|
System memory |
DDR3 1GB(can choose) |
|
|
NAND Flash memory |
Nand,The standard 4GB(can choose) |
|
|
The menu language |
Support Chinese.English |
|
|
Interface |
USB2.0*2,mini-SD, H,D,MI,RJ45,CVBS |
|
|
Card type |
RJ45 100/1000M Network adaptive ,built-in WIFI 802.11b/g/n |
|
|
Touch type |
Supports multi-touch, optical, acoustic, resistors, capacitors, and the infrared touch screen |
|
|
Input output |
USB keyboard/mouse, ID card/unionpay card/bar code to read and write, password, keyboard, camera, the microphone |
|
|
Storage type |
mini-SD card ,Usb |
|
|
The file format |
video |
720P,1080P Hardware decode ,H263/264/MPEG4,AVI,WMV,MP4,MOV,FLV,RMVB and so on The mainstream media |
|
picture |
JPG,JPEG,BMP,GIF,PNG |
|
|
audio |
MP3,WMA,AAC,AC3,DTS |
|
|
Support the resolution |
The highest support 1080 p hd video |
|
|
Automatic switch machin |
Boot automatically by the cloud hairnet remote set period of time, turn it off |
|
|
Play the way |
Through the cloud hairnet online choreography, distribute programs which can realize the horizontal/vertical screen play, timing, automatic playback ,media box |
|
|
audio |
2.0 2*2w (8Ω)stereo |
|
|
Program update |
Cloud hairnet remote online update, the local broadcast |
|
|
Version update |
Cloud hairnet on-line automatic upgrades, local upgrades |
|
|
Power |
12V DC |
|
Interface & parameters
1) Other standard interface
|
Interface type |
Standand interface |
Note |
|
|
Storage interface |
SDcard |
Data is stored, the maximum support 32 gb |
|
|
USB*2 |
The HOST interface, support for data storage, data import, USB mouse and keyboard, camera, touch screen, etc |
||
|
Ethernet interface |
RJ45 interface |
Support cable network |
|
|
H,D,MI interface |
Standand interface |
Support H,D,MI output data, the maximum support 1080 p |
|
|
CVBS interface |
Standand interface |
Support CVBS video output and the left and right sound channel output |
|
2)Electrical properties
|
Project |
minimum |
A typical |
maximum |
|
|
The power supply voltage |
Power |
-- |
12 |
-- |
|
ripple |
-- |
-- |
50mV |
|
|
Power supply current (H,D,MI output, did not meet other peripherals) |
Work Current |
-- |
250mA |
300mA |
|
Standby current |
-- |
32mA |
40mA |
|
|
USB power supply Current |
-- |
-- |
500mA |
|
|
LCD power supply Current |
-- |
-- |
1A |
|
|
Environment |
Relative humidity |
-- |
-- |
80% |
|
Working temperature |
0℃ |
-- |
40℃ |
|
Working storage environment and use requirements
Please do not touch the board with his hands, and not by weight
Please access to the 12 v DC stable DC power supply
The ban on direct sunlight and prevent rain
The air humidity is < 95%
Working temperature: 0°C ~ 40 °C
Storage temperature: - 20°C ~ 60 °C
