- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GOLD
-
Model Number:
-
GDY-1A+
-
Product name:
-
Calorific Value Oxygen Bomb Calorimeter
-
Keyword:
-
bomb calorimetry
-
Temperature resolution:
-
0.001 K
-
Thermal error:
-
≤60J/g
-
Temperature measurement range:
-
10 ℃~35 ℃
-
Repeatability error:
-
≤0.2% (Grade C)
-
Pressure endured by Oxygen bomb:
-
20 MPa
-
Application:
-
Auto Testing Machine
-
Ambient humidity:
-
less than 85%
-
Power supply:
-
AC(220±5%)V,50Hz
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
GDY-1A+
-
Product name:
-
Calorific Value Oxygen Bomb Calorimeter
-
Keyword:
-
bomb calorimetry
-
Temperature resolution:
-
0.001 K
-
Thermal error:
-
≤60J/g
-
Temperature measurement range:
-
10 ℃~35 ℃
-
Repeatability error:
-
≤0.2% (Grade C)
-
Pressure endured by Oxygen bomb:
-
20 MPa
-
Application:
-
Auto Testing Machine
-
Ambient humidity:
-
less than 85%
-
Power supply:
-
AC(220±5%)V,50Hz

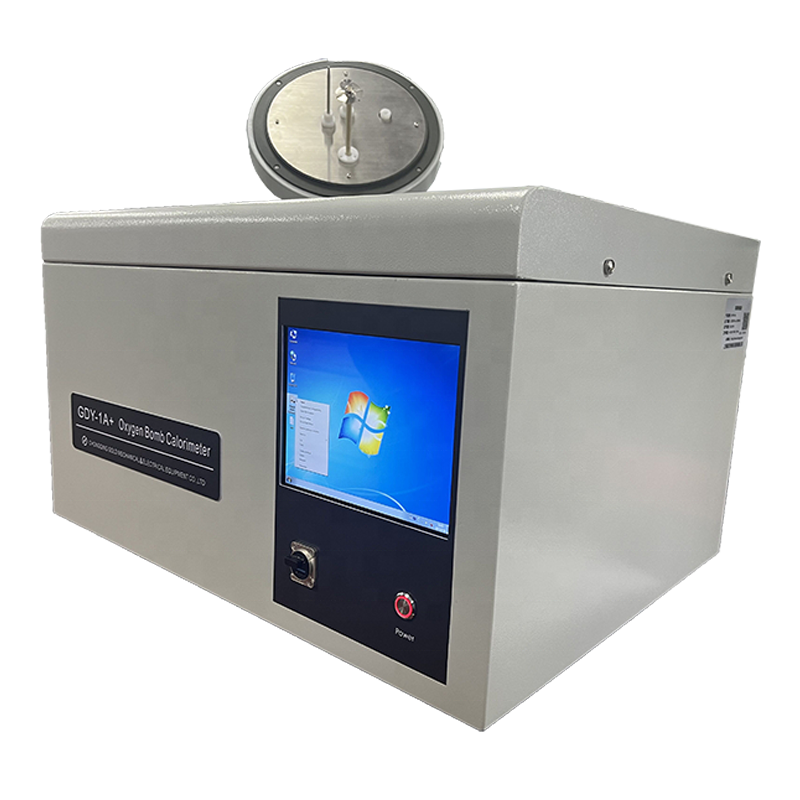

GDY-1A+ High Quality Laboratory Calorimeter Calorific Value Oxygen Bomb Calorimeter
Introduction:
- GDY-1A+ Calorific Value Oxygen Bomb Calorimeter can be used to measure the calorific value of solid or liquid samples, measuring samples in a closed container (oxygen bomb), oxygen-filled environment, the heat generated by combustion, the measurement results called the combustion value, calorific value , BTU and so on.
- Calorific value results have the value of determining other values, so as to determine the sample quality and serve as the basis for calculating prices (such as coal) and physiological (such as energy distribution in ecology, energy metabolism in animal nutrition research, etc.), physical and chemical conclusions.
Features:
-
1. Single chip microcomputer, LCD screen, high-precision temperature sensor and high-performance A / D conversion device technology are adopted.
-
2. The test program is fully automatic. After placing the sample and entering the correct parameters, it will complete all procedures without manual interference. Print the test data directly after the test.
-
3. Sealed oxygen bomb is adopted. The whole structure is made of stainless steel. Its strength is enough to withstand the hydrostatic test of 20MPa at room temperature.
Specifications:
|
Heat capacity |
14000 J/K~15000 J/K |
| Measuring range | (10~35)℃ |
| Resolution | 0.001 K |
| Measurement accuracy | ± 60J/g |
| Repeatability error | ≤0.2% (Grade C) |
| Pressure endurance of bomb | 20 MPa |
| Temperature measurement range | 10 ℃~28 ℃ |
| Relative humidity | ≤85% |
| Power supply | AC 220V±5%, 50 Hz |
| Total power consumption | Less 150W |
Professional Laboratory:
Our Credentials:
Packaging &Shipping:
|
Pack aging |
The product will be packed in wooden case, and also can be packed by others ways as your request. |
|
Both neutral and customized packing are available. |
|
|
Shipping |
We can ship the goods to you by international express,such as DHL, UPS, TNT and so on. |
|
And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent. |
If you want to know more information about High Quality Laboratory Calorimeter Calorific Value Oxygen Bomb Calorimeter,Don't hesitation, welcome your inquiry!Price can be negotiated!
