Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HONGZUAN
-
Model Number:
-

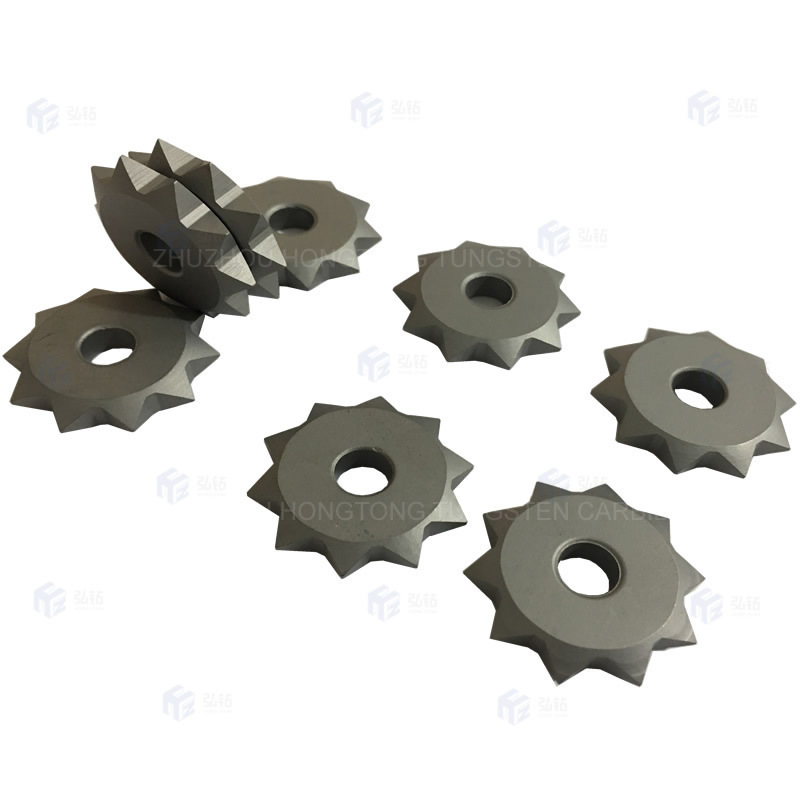

bush hammer tool
-
Material:
-
Tungsten Carbide
-
Application:
-
drilling
Quick Details
-
Type:
-
Other
-
Use:
-
Masonry Drilling
-
Finish:
-
Other
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HONGZUAN
-
Model Number:
-
bush hammer tool
-
Material:
-
Tungsten Carbide
-
Application:
-
drilling
Features of Tungsten carbide nozzle
Tungsten carbide nozzle is made from hot pressing with straight bore and venture bore type, which have high hardness, good wear resistance, high anti-corrosion ability. Usually they offers a long life with high performance. They are widely uased in abrasive water jet, dry/wet blasting,suction blast,scrubber,descaling,slurry jet,centrifuge and so on.
Free smaple was available!
Mains Grade for Tungsten carbide button
| Carbide mining bits | |||||||
| Grade introduction | |||||||
| Grade | Performance | Performance&application recommended | |||||
| Density | Bend Strength | Hardness | |||||
| G/Cm 3 | N/mm 2 | HRA | |||||
| YG4C | 15.1 | 1800 | 90 | Mainly used as small buttoon ns for percussion bits to cut soft and medium | |||
| hard formations. | |||||||
| YG6 | 14.95 | 1900 | 90.5 | For coring crowns,electric coal drill bits, coal cutting picks,oil cone bits and | |||
| scraping knife bits,used in geological prospecting,coal mining and oil well | |||||||
| boring. | |||||||
| YG8 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. | |||
| YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and medium sized percussion bits and as | |||
| YG8C | 14.8 | 2400 | 88.5 | the inserts of rotary prospecting bits to cut soft and medium hard formation. | |||
| YK15 | 14.6 | 2450 | 87.6 | Suitable to strips, conical buttons for rotary percussion-resistant,geological | |||
| prospectioin buttons, cut soft and medium hard formation. | |||||||
| YK20 | 14.4 | 2500 | 86.8 | Primarily for the buttons and inserts of rotary percussion bits to cut | |||
| medium-hard and very hard formations. | |||||||
| YK25 | 14.4 | 2550 | 87.2 | Primarily for the buttons and inserts of rotary percussion bits to cut | |||
| medium-hard and very hard formations. | |||||||
| YG11C | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut | |||
| medium-hard, hard and very hard formations. | |||||||
| YG13C | 14.2 | 2850 | 86 | Primarily for the buttons of tricone bits and inserts or rotary percussion bits to | |||
| cut hard and very hard formations. | |||||||
| YG15C | 14 | 3000 | 85.5 | For oil cone dril bits, for medium soft and medium-hard rocks. | |||
