Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shangli
-
Dimension(L*W*H):
-
1500x600x14500mm
-
Weight:
-
150 KG
-
Machinery Capacity:
-
3000set/month
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Wood
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shangli
-
Dimension(L*W*H):
-
1500x600x14500mm
-
Weight:
-
150 KG
-
Machinery Capacity:
-
3000set/month
-
Marketing Type:
-
Ordinary Product
Products Description

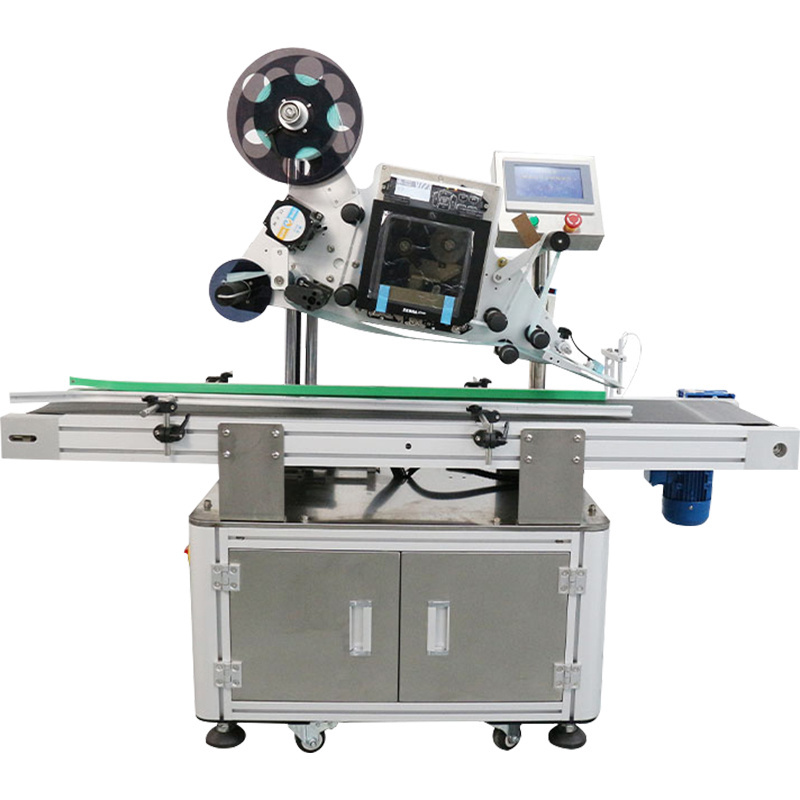

Automatic paging&labeling machine with printer
Basic use: suitable for real-time/cache printing of content on various labels and flat labeling directly on various items. The replacement of the labeling mechanism can be applied to the labeling of uneven surfaces, and is widely used in the labeling of mass products and flat objects with a wide range of specifications;
Applicable labels: self-adhesive, electronic supervision code, barcode, etc.; (printed text, serial number, date, pattern, one-dimensional code, two-dimensional code, etc.)
Applicable products: suitable for products with labels attached to the upper plane;
Application industry: widely used in clothing, food, daily chemicals, logistics and warehousing, electronics, medicine, hardware, plastics and other industries;
Application cases: clothing tag labeling, moon cake packaging labeling, daily chemical product labeling, logistics carton labeling, electronic product packaging labeling, medical product labeling, hardware product labeling, etc.;
|
Technical parameters:
|
(The following are the technical parameters of standard models, other special requirements and functions can be customized)
|
|
Printer model
|
(Zebra Industrial Professional Print Engine) Zebra (ZE500)/TSC/SANTO
|
|
printing method:
|
Thermal transfer/thermal
|
|
Print Resolution
|
300dip
|
|
printing speed:
|
6-10 inches/s
|
|
Print range:
|
Width 25-104mm; Length 25-250mm
|
|
Induction mode:
|
Gap induction (transmissive), reflective
|
|
Media Type:
|
Coated Paper, Synthetic Paper, Glassindy
|
|
Paper roll size:
|
Label paper core inner diameter Φ76mm outer diameter 300mm
|
|
Media size:
|
Width 25.4-116mm; Thickness 0.06-0.30mm
|
|
Ribbon:
|
Width 25-110mm; length 450 meters, maximum outer diameter 90mm, when winding the ribbon, the coated side faces outward
|
|
Communication interface External interface:
|
R232 serial port/ Parallel parallel port/ USB2.0/ Ethernet port
|
|
Barcode Type:
|
One-dimensional code: Code39,Code93,Code128UCC,Code128subsetsA.B.C,Codabar,EAN-8 QR code: PDF-417, Maxicode, DataMatrix, QR Code,
Aztec |
|
External Hardware Font Panel:
|
Touch Screen Operation Touch Screen Operation
|
|
Labeling speed (pcs/min)
|
30~80pcs/min
|
|
Labeling accuracy
|
±1mm
|
|
Label size:
|
Label width: 25-104mm Label Length: Length 25-250mm
|
|
Print content
|
text, serial number, date, pattern, one (two-dimensional) barcode, etc.
|
