It suits for grinding and milling all kinds of cylinder body and cover surface.
The spindle adopts high precision bearing the motor is fixed on the back of the machine which guarantee the spindle precision with
high speed.
It adopts the plastic guide way running stable and flexible.
The feeding of work table adopts stepless speed changes devices, suits for processing all kinds of materials of work piece.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2950*1000*1960
-
Weight (KG):
-
2500
-
Power (kW):
-
1.5/2.4
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Red
-
Max. Grinding Diameter:
-
1500mm
Quick Details
-
Wheel Size(mm):
-
60*800
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2950*1000*1960
-
Weight (KG):
-
2500
-
Power (kW):
-
1.5/2.4
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Red
-
Max. Grinding Diameter:
-
1500mm
Products Description

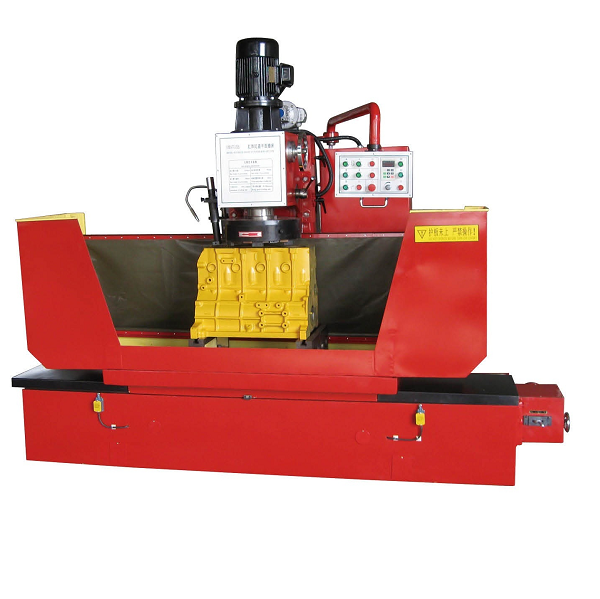

Cylinder block and head grinding machine 3M9735BX150
|
Dimensions of working table (mm)
|
1300×500
|
|
Max. length of processing (mm)
|
1500
|
|
Max. width of processing (mm)
|
350
|
|
Max. height of processing (mm)
|
800
|
|
Grinding wheel vertical travel (mm)
|
60
|
|
Grinding head vertical travel (mm)
|
800
|
|
Moving speed of working table (mm/min)
|
30~900
|
|
Dia. Of grinding wheel plate (mm)
|
360
|
|
Main motor power (kw)
|
1.5/2.4
|
|
Overall dimension(LxWxH) (mm)
|
2950×1000×1960
|
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1:
12 month
guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2:
Free replacing parts
available in the warranty period.
Cost-value replacing parts
available beyond the warranty period.
Quick action
and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes,
free training
in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide
different kinds processing solutions
for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to
visit our factory at any time
. The more you know us, the more you trust us! So you can rest assured on our
quality products
and our
best services
.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
