Quick Details
-
Model Number:
-
XPE foam
-
Thickness:
-
1-50mm
-
Size:
-
1mx2m
-
Product Name:
-
XPE foam
-
Color:
-
As Pantone color
-
Grades:
-
8T, 15T, 20T, 25T, 30T, 35T...
-
Shape:
-
sheets and rolls
-
Density:
-
20-270kg/m3
-
Hardness (Shore C):
-
15-70 degree
-
Certificates:
-
SG S, ROHS, Reach
-
Service:
-
Die-cut, adhesive, etc.
-
Application:
-
Packing, sports, construction, automotive, etc.
-
More foam products:
-
Yoga Block, Swimming Pad, exerciase mat, etc.
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yunchen
-
Model Number:
-
XPE foam
-
Thickness:
-
1-50mm
-
Size:
-
1mx2m
-
Product Name:
-
XPE foam
-
Color:
-
As Pantone color
-
Grades:
-
8T, 15T, 20T, 25T, 30T, 35T...
-
Shape:
-
sheets and rolls
-
Density:
-
20-270kg/m3
-
Hardness (Shore C):
-
15-70 degree
-
Certificates:
-
SG S, ROHS, Reach
-
Service:
-
Die-cut, adhesive, etc.
-
Application:
-
Packing, sports, construction, automotive, etc.
-
More foam products:
-
Yoga Block, Swimming Pad, exerciase mat, etc.

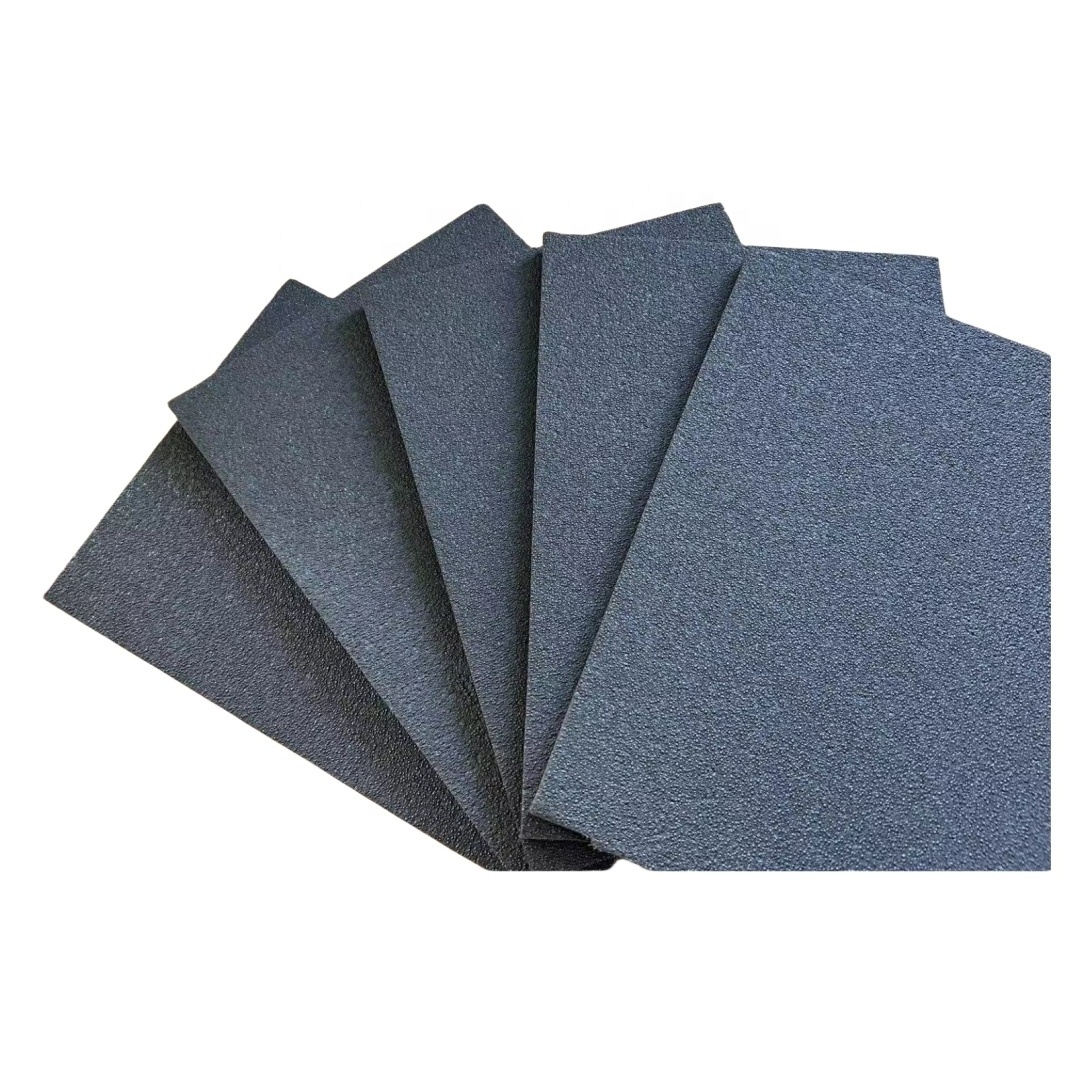

Crosslinked XPE Foam and IXPE foam (in Sheet or in Roll):
XPE foam is produced by compounding PE with some special padding and foaming material, then cross-linking by foamin g. The XPE foam is a kind of polymer material with good and independent obturator foramen, and smoothly surface and good elasticity, meanwhile it is also full of high mechanics intensity and good heat insulation, good waterproof, well resis tant to aging, to high temperature, to chemical corrosion and different environments.
IXPE is a kind of macromolecule closed-cell foaming material, its surface is smooth and smooth, internal bubble hole is even and delicate, water absorption rate is very low, with good sound insulation, heat insulation, shock absorption performance.
|
Test item
|
5times
|
8times
|
10times
|
15times
|
20times
|
25times
|
30times
|
35times
|
|
Density kg/m3
|
200±30
|
125±15
|
100±10
|
66.7±8
|
50±6
|
40±4
|
33.3±3
|
28.6±2
|
|
ShoreC Hardness °
|
60～70
|
50～60
|
45～50
|
35～45
|
30～35
|
25～30
|
18～25
|
13～18
|
|
Water absorbtion (23℃±2℃, 24h) g/cm2
|
≤0.02
|
≤0.02
|
≤0.03
|
≤0.03
|
≤0.04
|
≤0.04
|
≤0.05
|
≤0.05
|
|
K value w/m.k
|
≤0.092
|
≤0.082
|
≤0.072
|
≤0.062
|
≤0.053
|
≤0.047
|
≤0.041
|
≤0.038
|
|
Tensile strength MPa
|
≥.35/1.08
|
≥.12/0.89
|
≥.88/0.71
|
≥.68/0.56
|
≥.39/0.33
|
≥.33/0.25
|
≥.25/0.20
|
≥0.20/0.16
|
|
Elongation %
|
≥260/220
|
≥230/200
|
≥210/185
|
≥190/170
|
≥170/150
|
≥160/135
|
≥140/130
|
≥120/110
|
|
Tearing strength kN/m
|
≥5.90/7.1
|
≥4.80/5.4
|
≥3.60/4.0
|
≥2.80/3.3
|
≥1.80/2.3
|
≥1.60/2.0
|
≥1.35/1.7
|
≥1.25/1.5
|
|
compressed distortions (25%, 22h)%
|
≤5
|
≤6
|
≤7
|
≤7
|
≤9
|
≤9
|
≤11
|
≤11
|
|
dimension change
|
≤-6/-4
|
≤-6/-4
|
≤-6/-4
|
≤-6/-4
|
≤-6/-4
|
≤-8/-6
|
≤-8/-6
|
≤-8/-6
|
Q: Do you manufacture your own foam?
A: Yes, we do manufacture the foam using our own presses and molds. We have various sizes molds.
Q: Why your price labeled so cheap?
A: We manufacture the foam buns ourself, and export directly, no extra fees added.
Q: What is your lead time?
A: Ninety percent of all our orders can be loaded in 15 days.
Q: How much can you fit on a 40 HQ container?
A: Approximately 205 buns of 4" x 48" x 96", 330 buns of 100mmx1000mmx2000mm.
Q: What is your minimum order?
A: Our usual minimum order is 10cbm. Small qty will be cost a lot delivery cost.
Q:What are acceptable forms of payment?
A: We accept TT payment, Paypal, L/C, etc.
Q: What densities are available?
A: We stock 1.8lb to 18lb densities.
Q: What colors are available?
A: Charcoal, Light Charcoal, Grey, Mint Green, Blue, White, Yellow, Red, etc. as Pantone colors.
Q:Does your material come with skins?
A: Generally no, although some materials are available with skins upon request.
Q: What can be used to cut your foam?
A: Most tools that can be used to cut wood can also be used to cut our foam. These include table saws, band-saws, table routing, water-jet, etc.
Q: What is the working temperature of the foam?
A:Maximum continuous operating temperature of our foam is between -110°F to 180°F (-79°C to 82°C)
Q: Does the foam float?
A: Yes, it does; EVA and XLPE is a water resistant foam.
Q: What are the differences between EVA and XLPE?
A: EVA stands for ethylene vinyl acetate. Our XLPE and EVA foam products are similar materials and are difficult to distinguish.
The primary differences are that EVA is softer, more resilient, and has stronger recovery after compression. Whereas polyethylene foams are firmer and more resistant to heat. Both of them provide excellent protection and shock absorption for packaging applications.
