Quick Details
-
input and output:
-
4/8 HDMI inputs, 4/8/16 HDMI outputs
-
Control:
-
front panel, IR, RS232, TCP/IP
-
signal format:
-
HDMI,HDCP
-
Resolution:
-
1080P
-
screen splicing display:
-
8 screen splicing display
-
Control mothod:
-
panel control , RS232 TCP ip control, remote control
-
Warranty:
-
1 year
-
Feature:
-
1080P
-
Product Type:
-
HDMI-0404 HDMI-0808 HDMI-0816 HDMI-1616
-
Packing:
-
Carton box
Quick Details
-
Model Number:
-
HDMI-0404 HDMI-0808 HDMI-0816 HDMI-1616
-
Brand Name:
-
Kensence
-
Place of Origin:
-
Guangdong, China
-
input and output:
-
4/8 HDMI inputs, 4/8/16 HDMI outputs
-
Control:
-
front panel, IR, RS232, TCP/IP
-
signal format:
-
HDMI,HDCP
-
Resolution:
-
1080P
-
screen splicing display:
-
8 screen splicing display
-
Control mothod:
-
panel control , RS232 TCP ip control, remote control
-
Warranty:
-
1 year
-
Feature:
-
1080P
-
Product Type:
-
HDMI-0404 HDMI-0808 HDMI-0816 HDMI-1616
-
Packing:
-
Carton box

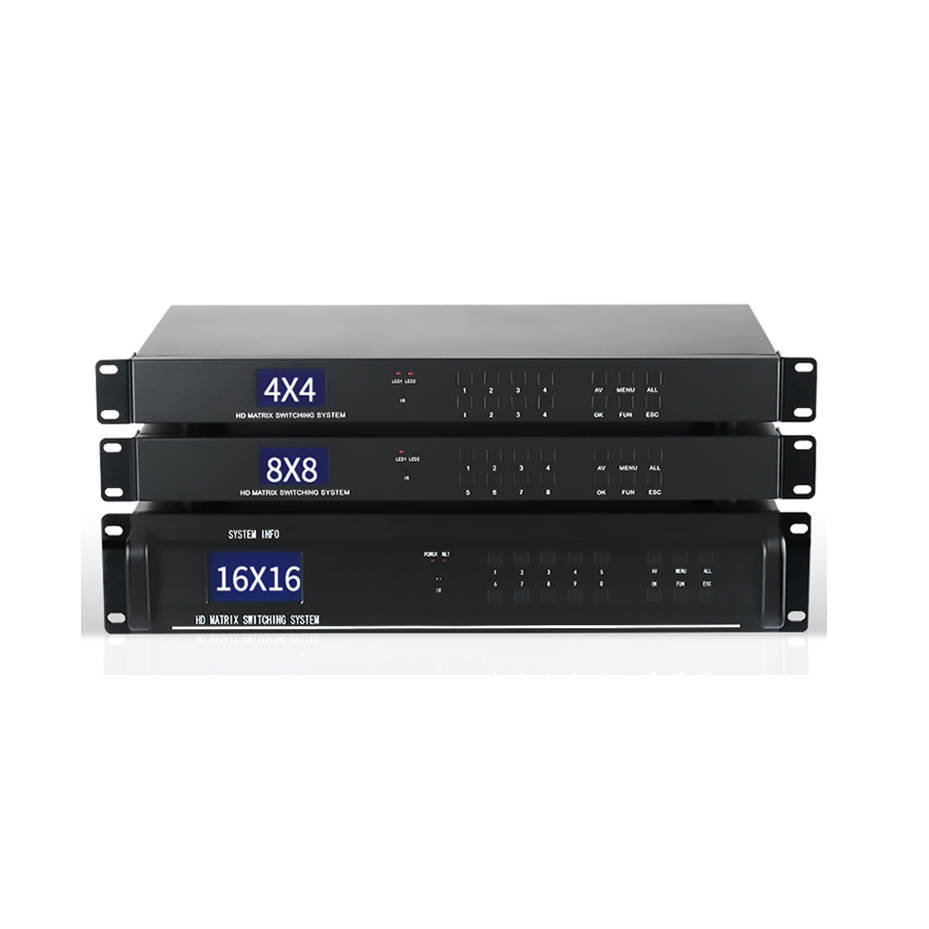

Wholesale Input 4 Output 4 HDMI Port 4x4 8x8 8x16 16x16 Matrix Video Wall Switcher 1080P HDMI Matrix Switches
The product has functions such as power failure on-site protection, LCD liquid crystal display, audio and video synchronization, etc.With the central control RS232 interface, the remote control equipment can be used together.we have 4X8/4X12/9X9/12X12/12X16/32X32 etc Matrix Switcher ,If you need other Matrix Switcher we can also customize.
| Matrix switch system | 4X4/8X8/16X16/other customization |
| RS232 interface broadband | 13.5Gbps |
| Baud rate and protocol | Baud rate: 9600, data bits: 8 bits, stop bits: 1 |
| Serial control interface | RS 232, 9 pin female D type and 9 pin male D type |
| System working power | 100VAC-240VAC, 50/60Hz |
| Chassis size | 4X4/8X8 support IU cabinet, 16X16 support 2U cabinet |
| Matrix switch Size | 4x4(440X240X44)/8X8(440X240X44)/16X16(440X317X88)mm |
| Weight | 4X4(2.3)/8X8(2.45)/16X16(4.7)KG |
