0.5-60t JK Type Electric Wire Rope Winch Single Speed and Daul Speed High Speed Construction Winch

0.5-60t JK Type Electric Wire Rope Winch Single Speed and Daul Speed High Speed Construction Winch

FOB Reference Price: Get Latest Price

≥1 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 years

Place of Origin:: Zhejiang, China

Brand Name:: KRC

Model Number:: JK

Product name:: High Speed Construction Winch

Load Capacity:: 0.5-60t

Wire Rope Capacity:: 20-3600m

Working Speed:: 20-35m/min(Single Speed and Daul Speed)

Power supply:: 220v-690V,50Hz/60Hz,3Phase

Certification:: ISO CE

Usage:: Pulling or Lifting Goods

Material:: can be customized

MOQ:: 1 Set

Quick Details

Power:: 710W, 1400W, 1200W

Application:: Construction Industry

Voltage:: 220v-690V,50Hz/60Hz,3Phase

Warranty:: 1 years

Place of Origin:: Zhejiang, China

Brand Name:: KRC

Model Number:: JK

Product name:: High Speed Construction Winch

Load Capacity:: 0.5-60t

Wire Rope Capacity:: 20-3600m

Working Speed:: 20-35m/min(Single Speed and Daul Speed)

Power supply:: 220v-690V,50Hz/60Hz,3Phase

Certification:: ISO CE

Usage:: Pulling or Lifting Goods

Material:: can be customized

MOQ:: 1 Set

The Features at A Glance(JK)

Overall Description

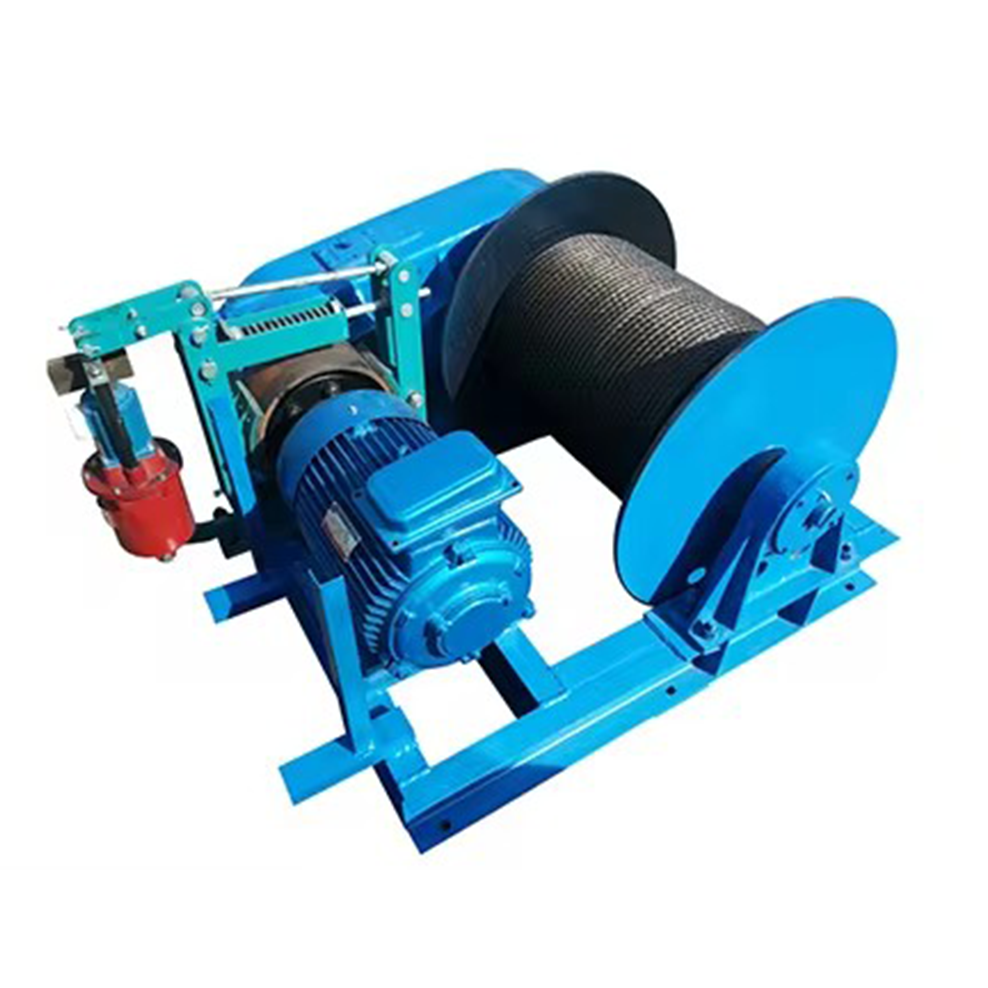

JK series electric winch is is made up of motor, brake, drum, wire rope, electrical appliance, base ect ; This structural
characteristic is wire rope orderly arrangement lifting is safe and reliable. Electric winch is mainly used for Vertical lifting,
Horizontal pulling, Mooring, Anchoring, slipway, mine, Hydro power station, etc.

It is suitable for various bridges, ports, docks,
ships and other projects and large-scale plant and equipment installation projects.

Features

1. Local / remote control methods;
2. Bevel/ Spur gear gearbox;

3. Speed: single/double speed, Variable speed by VFD on optional;
4. Customized electrical cabinet: PLC, Explosion Proof, Wireless communication,etc;
5. Accessories: Load cell, Limit switch, encoder, real-time display, safety brake, etc;

6. Rope Guider on optional;

7. Flat drum or Grooved drum;

Reference Parameters

Attention Please：The parameters are for reference only, and the specific parameters depend on the customization requirements.

Model	Rated Speed (KN)	Rope Capacity (m/min)	Rope Diameter (m)	Overall Dimension (mm)	Total Weight (mm)
JK0.5	5	22	190	7.7	620×701×417
JK1	10	22	100	9.3	620×701×417
JK1.6	16	24	150	12.5	945×996×570
JK2	20	24	150	13	945×996×570
JK3.2	32	25	290	15.5	1325×1335×840
JK5	50	30	300	21.5	1900×1620×985
JK8	80	25	160	26	1533×1985×1045
JK10	100	30	300	30	2250×2500×1300

Before Purchasing

If you want to order electric windlass, Pls tell me the details as follows:

1. The Max. pulling capacity? (Ton or KN)
2. How to use the windlass?(Lifting or horizontal pull?)
3. The Max. rope length? (m)
4. What type meterial will you to pull(lift)?
5. Diameter of wire rope?(or following our standard)
6. The power source standard?(380V, 50Hz, 3phase or others)
