Aquaculture wheel aerator 16 hp Condensing electric start Wholesale impellers fish pond paddle wheel aquaculture aerator

Aquaculture wheel aerator 16 hp Condensing electric start Wholesale impellers fish pond paddle wheel aquaculture aerator

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1150

≥45 Pieces

US $1100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 125 KG, 315-400KG

Power:: 10-22HP

Motor:: changfa

Key word:: Aquaculture Euipment

Size:: 2CBM

Covering area:: 666-3330 M3

Material:: Stainless Steel

Name:: Diesel Engine Paddle Wheel Aerator

Oxygen Transfer Rate:: 7.8kg(O2)/h

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DUMILE

Model Number:: CY

Weight:: 125 KG, 315-400KG

Power:: 10-22HP

Motor:: changfa

Key word:: Aquaculture Euipment

Size:: 2CBM

Covering area:: 666-3330 M3

Material:: Stainless Steel

Name:: Diesel Engine Paddle Wheel Aerator

Oxygen Transfer Rate:: 7.8kg(O2)/h

Product Description

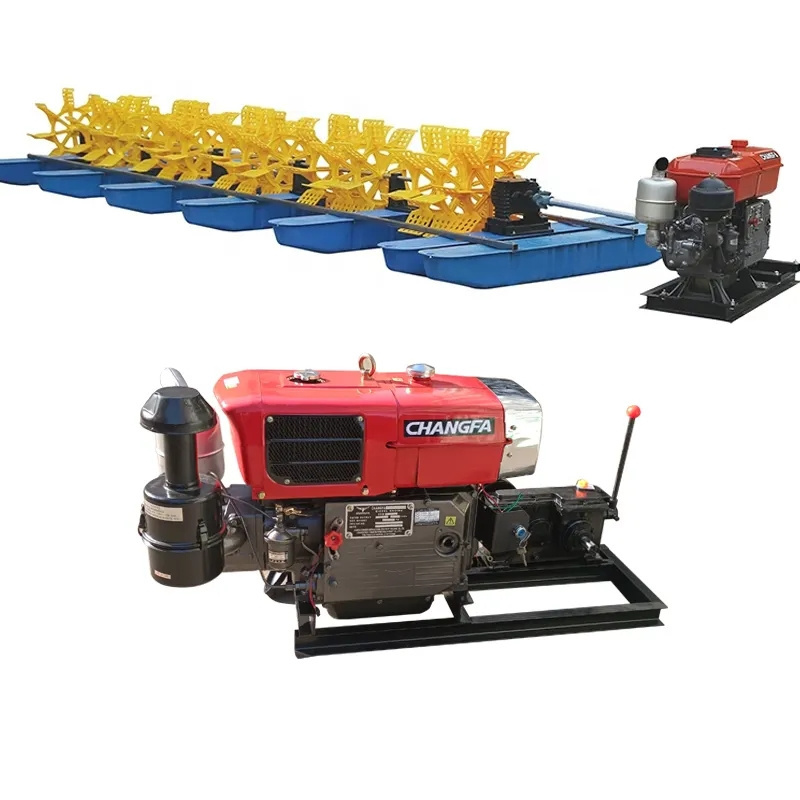

DIESEL ENGINE AERATOR

Can customized in 8 wheels to 22 wheels or more wheels with diesel engine,suitable for a place which is lack of electric support . Diesel engine brand is CHANGFA ,also could choose another brand.

Paddle wheel aerator all the spare parts all in high level ,like materials are stainless steel 304 solid shaft and impeller shaft, even the screws.Can used in sea water.

The diesel engine power is from 10 hp to 22 hp ,so the speed can reach to 2200 r/min ,the impeller speed can reach to 15 r/min.Aeration performance is over 7.8 kg/h oxygen, but noise is lower than 78 dB(A).

Common choose for diesel engine:
1.Electric start with fan cooling type ,can add LED light,(need start up with battery)
2 . Hand rolling start with water cooling type

20 FT CONTAINER CAN LOAD :18 PCS

40 FT CONTAINER CAN LOAD:48 PCS

f or example of 16 impellers:

Detailed Images

Name	Quantity set	Material
Diesel engine	1pc	16HP, air cooling, electric and manual start
Reducer	1pc	Gear style, Cast Iron body
Engine base	1pc	Painted Steel material
Impeller	16pc	100% brand new PP
Float	7pc	100% brand new HDPE
Cardan Joint	2pc	Cast iron
Transmission Shaft	1pc	Galvanized
Bearing bracket	6pc	PP
Frame	2pc	304# stainless steel
Bearing bracket	1pc	Cast iron
Connector	1pc	Cast iron
Bolt and nut		304#SS

Product packaging

Bulk
Size	1.7CBM
Weight	370 KGS
Packaging Details	Motor gear box and other components of wooden box packaging, impeller, floating ship bulk. Reducing volume is more beneficial to transportation.

Our Service

Pre-sale:
1. Can customize quality level to match customer's target price .
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
5. Warranty: Different warranty for different quality level.
6. Whole Life free technical guidance, follow up after use situation .

After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client,
for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading , so you can "remote monitoring"
your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.

More products

About us

TAIZHOU DUMILE MECHANICAL&ELECTRICAL CO.,LTD is a factory which focus on designing manufacturing and exporting a wide range of aquaculture equipment .We've been devoted to providing the high efficiency,environmental products and after-sales service in the same time.
Our company built a special test pond aerator, bear the factory test and new tests for all the oxygen increasing machine, ensure the reliability of each product quality. To provide high quality and efficiency, energy saving,environmental protection fishery mahcine for customers.

FAQ

Q1. What's your company's main products?
A: Our company is specialized in many kinds of fish pond aerators，including Paddle wheel aerator，Floating aerator,
Surge aerator, Wave aerator and Jet aerator. Can be working with DC/AC or solar system motor.

Q2. What's your payment term?
A: 30% T/T in deposit, the rest against on the copy of B/L.

Q3. What's the MOQ for your production?
A: The MOQ is 5pcs or depends on your products requirements.

Q4. Is it all right to make customer's own brand name?
A: OEM is ok.

Q5. Where is your loading port?
A: Ningbo/Shanghai, China or else port as your request.
