Features:
1.High speed productoin by inner cam
2.Japanese servo drive and motor
3.Taiwanese controller system
4.Option for producing torsion springs
5.Option for camera/probe detector
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
350
-
Product name:
-
Spring coiler
-
Power Supply:
-
220/380/400/415/440V
-
Wire Diameter:
-
0.13-0.8 mm
-
Max. Outer Diameter:
-
20 mm
-
Production Speed:
-
550pcs/min
-
Max Feed Length:
-
Unlimited
-
Min Spring Index:
-
4
-
After-sales Service Provided:
-
Spare parts
-
Package:
-
Wooden Box
-
Model:
-
CSC-208
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SIMCO
-

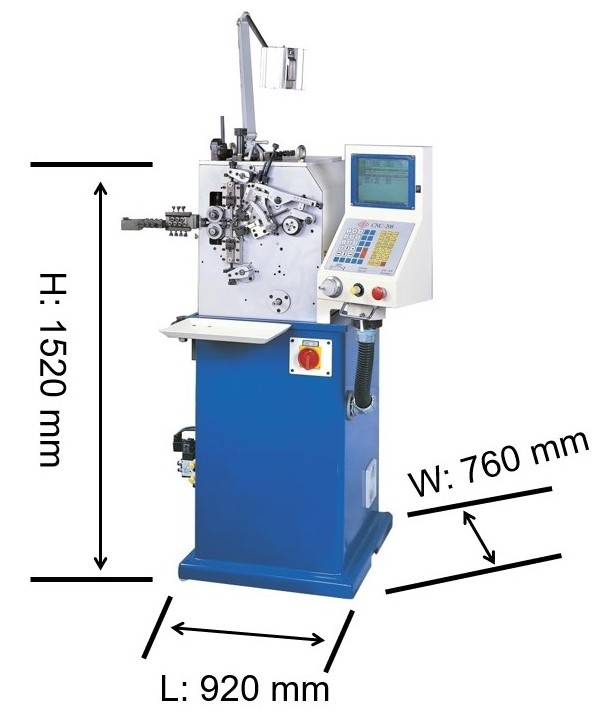

Dimension(L*W*H):
-
920L x 760W x 1520H
-
Weight (KG):
-
350
-
Product name:
-
Spring coiler
-
Power Supply:
-
220/380/400/415/440V
-
Wire Diameter:
-
0.13-0.8 mm
-
Max. Outer Diameter:
-
20 mm
-
Production Speed:
-
550pcs/min
-
Max Feed Length:
-
Unlimited
-
Min Spring Index:
-
4
-
After-sales Service Provided:
-
Spare parts
-
Package:
-
Wooden Box
-
Model:
-
CSC-208
Product Information
What the machine can produce
Reference for Other Models
|
|
CSC-208
|
CSC-216
|
CSC-226
|
||
|
Wire Diameter (mm)
|
0.13-0.8
|
0.4-1.6
|
0.8-2.6
|
||
|
Max. Outer Diameter (mm)
|
20
|
45
|
50
|
||
|
Feed Roller (pair)
|
1
|
2
|
3
|
||
|
Max. Run Rate (pcs/min)
|
550
|
350
|
300
|
||
|
Power Suppler
|
220V, 3∅ (transformer 380/400/415/440V is available)
|
|
|
||
|
Machine Dimension (mm)
|
920L x 760W x 1520H
|
1380L x 980W x 1680H
|
1000L x 1420W x 1730H
|
||
|
Machine Weight (kg)
|
385
|
850
|
970
|
||
CSC-208
CSC-216
CSC-226
