Professional Wood tongue and groove machine

Professional Wood tongue and groove machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6900

≥3 Sets

US $6800

≥5 Sets

US $6600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Marketing Type:: Hot Product 2022

Weight (KG):: 300 KG

Name:: Double head notcher Wood Pallet Notching Machine

Capacity:: 1600-1800pcs/h

Voltage:: 380V 50HZ can be customized

Power:: 22kw/30kw

Color:: customized

Package:: Wooden box

Raw material:: Wood board

Certification:: CE&ISO9001

Quick Details

Place of Origin:: China

Brand Name:: ZZCHRYSO

Machine Type:: Wood Pallet Notching Machine

Marketing Type:: Hot Product 2022

Weight (KG):: 300 KG

Name:: Double head notcher Wood Pallet Notching Machine

Capacity:: 1600-1800pcs/h

Voltage:: 380V 50HZ can be customized

Power:: 22kw/30kw

Color:: customized

Package:: Wooden box

Raw material:: Wood board

Certification:: CE&ISO9001

Product Description

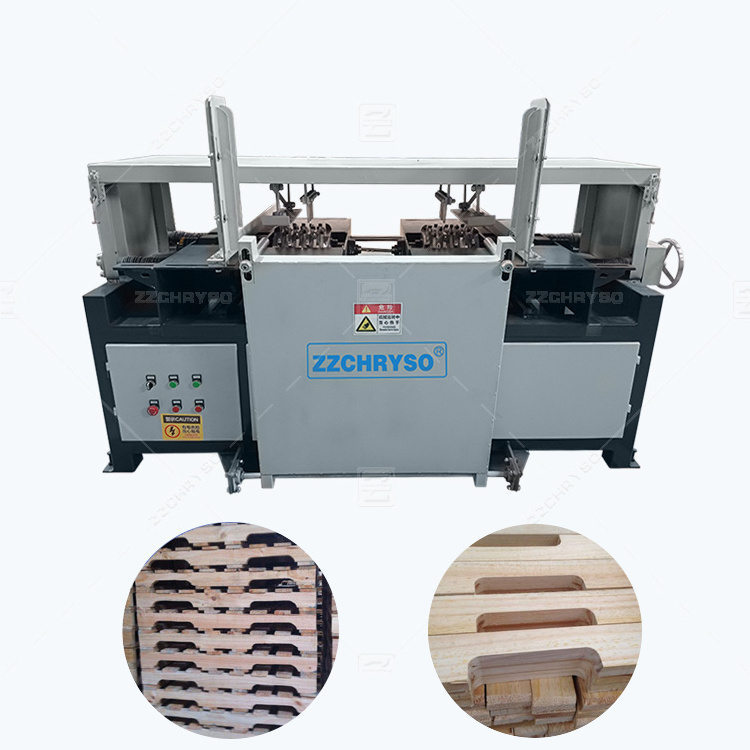

Introduction of Automatic double head notcher Wood Pallet Notching Machine price:

1.Automatic Pallet trenching machine is mainly used for trenching hole tray floor.
2. Used to make the stringer of the wood pallet in American Standard.Which it can use fork from four directions by forklift,
becomes popular pallet type in the world. wood pallet notcher machine
3.The groove radian can be customized as your request.
4. It could be continuously feeding and discharging.
5. It need work with the air compressor and 3kw small air compressor will be enough.

Specification

Model	CRS-1G	CRS-2G
Capacity	400-500pcs/h	1800pcs/h
Power	18kw 380v	30kw 380v
Dimension	110010001100mm	200012001600mm
Weight	300kg	600kg
Groove size	Groove depth: less than 45mm Groove width: less than 230mm		Provided
Wood Board size	Max length:1300mm Height: 80-100mm can be customized		Provided
Note: The groove size(width and depth) can be adjusted and they also could be customized if yours is not in the standard range

Feature

The features of Automatic wood cutting machine/wood pallet notcher machine price

1.The knife adopts hard alloy material, with high hardness, wear resistance, good strength and toughness,heat resistance, corrosion resistance and a series of excellent performance, so as to ensure the long term use of the machine performance.

Wood pallet groove cutting machine/ pallet notcher
2. Continuous feeding and automatic discharging platform, it can double slot opened at the same time, the excavated area smooth without coarse, standard size, high precision, the depth and width of the groove sizes can be adjusted.

Details Images
