Quick Details
-
Max Speed:
-
8-15pcs/min
-
Applicable Industries:
-
cosmetic factory
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YETO
-
Dimension(L*W*H):
-
1280*400*520mm
-
Weight:
-
85 KG
-
Thickness of plastic tube:
-
0.1~1.0(up to the concrete materials)
-
Diameter of sealing tube:
-
10-50mm
-
Operating:
-
Automatic/manual detection
-
Pressure:
-
0.2~0.8Mpa
-
Working Temprature:
-
0~40℃
-
Usage:
-
Plastic tube Sealing
-
Function:
-
tube sealing machine
-
Material:
-
Stainless Steel
-
Suitable for:
-
Plastic soft tube
Quick Details
-
Packaging Type:
-
tube
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Pneumatic
-
Max Speed:
-
8-15pcs/min
-
Applicable Industries:
-
cosmetic factory
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YETO
-
Dimension(L*W*H):
-
1280*400*520mm
-
Weight:
-
85 KG
-
Thickness of plastic tube:
-
0.1~1.0(up to the concrete materials)
-
Diameter of sealing tube:
-
10-50mm
-
Operating:
-
Automatic/manual detection
-
Pressure:
-
0.2~0.8Mpa
-
Working Temprature:
-
0~40℃
-
Usage:
-
Plastic tube Sealing
-
Function:
-
tube sealing machine
-
Material:
-
Stainless Steel
-
Suitable for:
-
Plastic soft tube
Product Overview

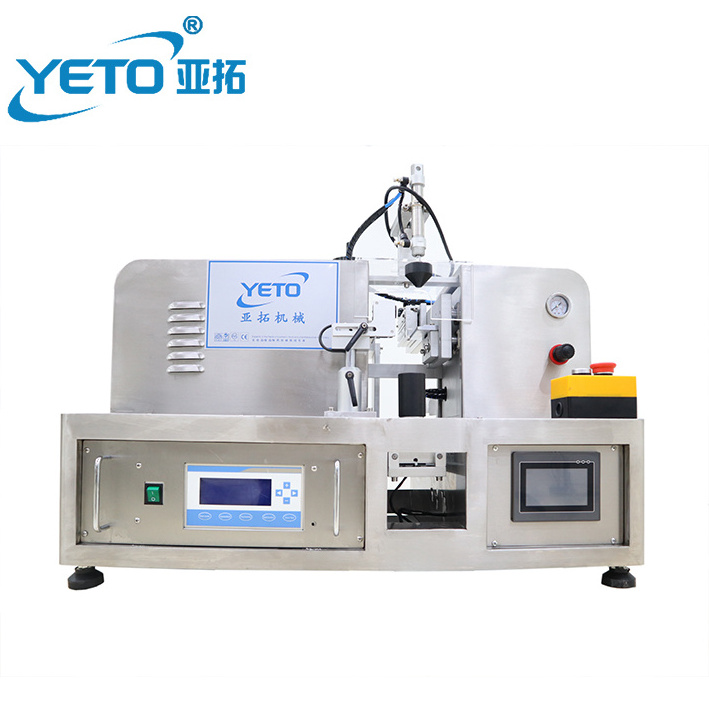

Desktop semi automatic ultrasonic plastic soft tube sealing machine
Ultrasonic plastic tube sealing machine is the use of friction between workpiece surfaces of high frequency and make the molecules to generate heat rapidly, when this enough heat to melt work, stop the ultrasonic vibration, the workpiece surfaces by melting and solidification, complete processing program.
FEATURES AT A GLANCE
|
Machine
|
Ultrasonic tube sealing machine
|
|
Power supply
|
single phase 220v,50Hz
|
|
Power
|
1500w
|
|
Frequency
|
20Khz
|
|
Tube diameter
|
10-50mm
|
|
Tube length
|
50-200mm
|
Advantages:
1.Welding speed fast, welding high strength, good sealing;
2.To replace the traditional process, low cost, clean pollution-free and will not damage to the workpiece;
3.Stable welding process, welding joint parameters can be set by equipment with controller, easy operation, convenient maintenance.
1.Welding speed fast, welding high strength, good sealing;
2.To replace the traditional process, low cost, clean pollution-free and will not damage to the workpiece;
3.Stable welding process, welding joint parameters can be set by equipment with controller, easy operation, convenient maintenance.
The left one is semi-Automatic plastic tube filling sealing machine ,this model contains filling and sealing functions.But if you have filling machine already, you can choose sealing machine only(right side).
