knitting yarn winding machine cone to cone transformer coil winding machine

knitting yarn winding machine cone to cone transformer coil winding machine

FOB Reference Price: Get Latest Price

≥10 Sets

US $2890

≥60 Sets

US $2790

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 600-1100m/min

Place of Origin:: Zhejiang, China

Brand Name:: Jovian

Voltage:: 380v/220v

Power:: 90W

Dimension(L*W*H):: 13700(length)*1050(wide)*1650(high)mm(12heads)

Weight:: 280 KG, 200

Usage:: knitting yarn winding

Name:: Cone Yarn Winding Machine

After-sales Service Provided:: Service Machinery Overseas

Function:: yarn winding

Product name:: Cone Yarn Rewinding Machine

Scope of application:: knitting yarn , sweater yarn

Speed:: 300-1100 M/Min

Type of winding:: Drums

Service:: Perfect After-sales Service

Quick Details

Applicable Industries:: knitting yarn winding, sweater manufacturer, cone to cone winding

Marketing Type:: Hot Product 2022

Application:: knitting yarn winding

Production Capacity:: 600-1100m/min

Place of Origin:: Zhejiang, China

Brand Name:: Jovian

Voltage:: 380v/220v

Power:: 90W

Dimension(L*W*H):: 13700(length)*1050(wide)*1650(high)mm(12heads)

Weight:: 280 KG, 200

Usage:: knitting yarn winding

Name:: Cone Yarn Winding Machine

After-sales Service Provided:: Service Machinery Overseas

Function:: yarn winding

Product name:: Cone Yarn Rewinding Machine

Scope of application:: knitting yarn , sweater yarn

Speed:: 300-1100 M/Min

Type of winding:: Drums

Service:: Perfect After-sales Service

Product Overview

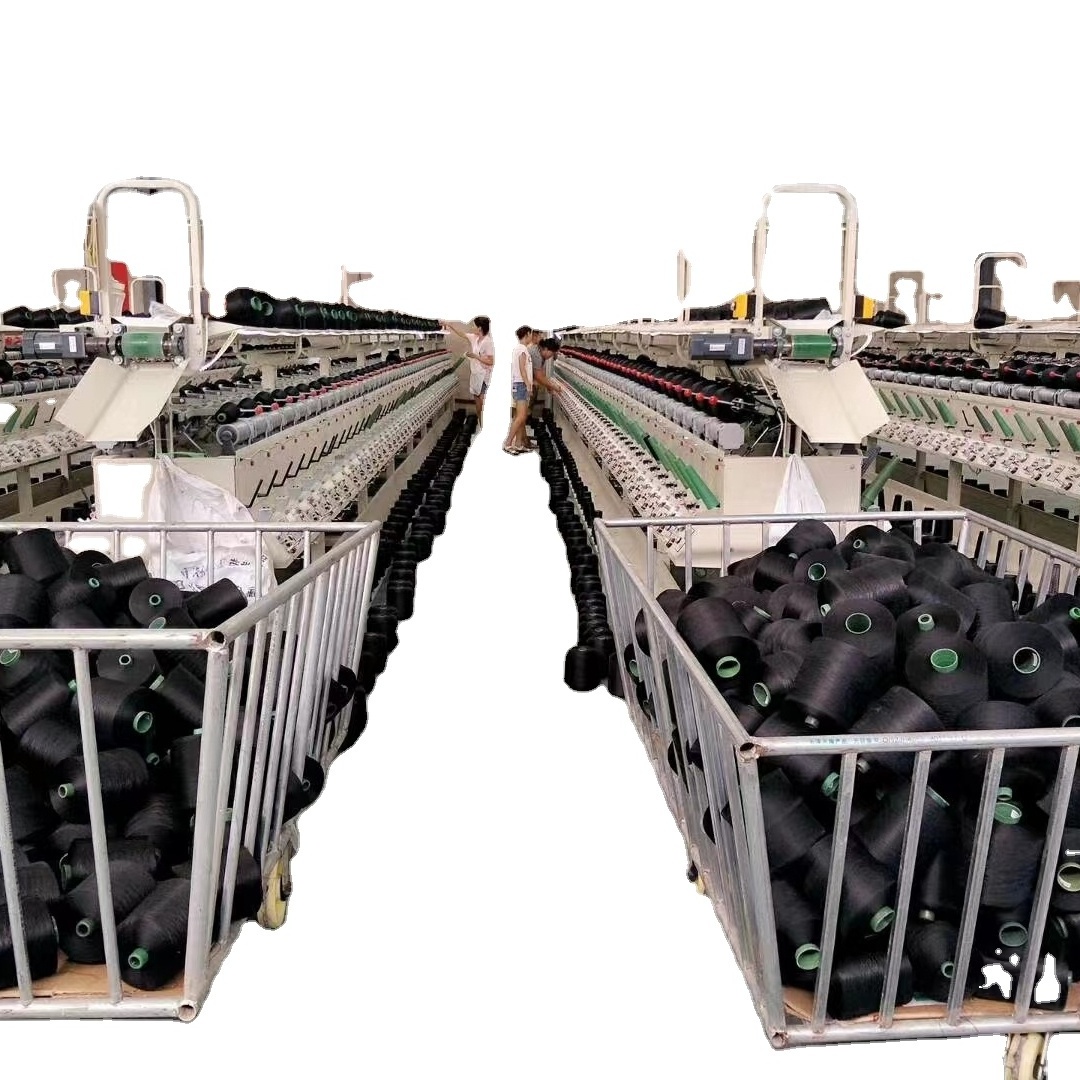

This machine is mainly used in knitting, clothing, weaving and other factories for yarn waxing, for knitting flat knitting
machine, big round machine, weaving machine, etc., to reduce the process strength, adapt to high-speed production
Product advantages

FEATURES AT A GLANCE

1.winding drive: each spindle drive alone, VVVF;

2.winding speed and density: 300-1000 M / min;

3.with the electronic yarn breakage self stop function;
4.yarn diameter and dynamic range: diameter less than 290mm. The dynamic range is 150mm;
5.with a single spindle length function;
6.advanced touch screen type man-machine interface.

PLC controlling

Mechanical tensioner

Alloy slotted drum

PRODUCT SPECIFICATIONS

bobbin type	6"(170mm)
construction	double sizes, 12-96 spindle per set
power supply	three-phase power380V 50/60HZ or 220V, 50Hz
drive	independent motor drive single spindle or DC motor
power consumption	90w /spindle
finish bobbin	cone；4°20, 5°57, 9°15
yarn bobbin diameter	max200-290mm
yarn speed	300-1000m/min
electric overlapping device	variable frequency controller
length counting device	Programmable logic controller (PLC) centralized control / display meter length
Tension device	Each spindle has a self-cleaning and waxing
Mechanical yarn cleaning device	Configuration of each spindle can be fine tuned mechanical cleaning knife
Self stopping device for broken yarn	Electronic yarn breaking
Speed regulating device	frequency control
Horizontal moving device of cylinder yarn soft edge	Mechanical / suitable for loose
Electronic yarn cleaning device	Optional
jointair	Optional
Blowing cleaner	Optional
lamp system	Optional
sets size	1370010501650mm
