Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BY LASER
-
Marking Head Brand:
-
SINO-GALVO/ZBTC
-
Weight (KG):
-
65 KG
-
Marking Area:
-
110*110mm/175*175mm/200*200mm/300*300mm
-
Core Components:
-
laser source
-
Product name:
-
Laser Marking Machine
-
Laser Power:
-
20W/30W/50W//60W/80W/100W
-
Function:
-
Wood Engraving Marking
-
Applicable Material:
-
Non-Metal Materials
-
Key words:
-
CO2 Laser Marking Machine
-
Marking material:
-
Nonmatal
-
Machine type:
-
Color Laser Printer
-
Cooling system:
-
Air Coolilng System
-
Marking Speed:
-
0-8000mm/s
-
After-sales Service Provided:
-
1 Years
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
CO2
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BY LASER
-
Marking Head Brand:
-
SINO-GALVO/ZBTC
-
Weight (KG):
-
65 KG
-
Marking Area:
-
110*110mm/175*175mm/200*200mm/300*300mm
-
Core Components:
-
laser source
-
Product name:
-
Laser Marking Machine
-
Laser Power:
-
20W/30W/50W//60W/80W/100W
-
Function:
-
Wood Engraving Marking
-
Applicable Material:
-
Non-Metal Materials
-
Key words:
-
CO2 Laser Marking Machine
-
Marking material:
-
Nonmatal
-
Machine type:
-
Color Laser Printer
-
Cooling system:
-
Air Coolilng System
-
Marking Speed:
-
0-8000mm/s
-
After-sales Service Provided:
-
1 Years
Product Overview
PRODUCT SPECIFICATIONS
|
Model No
|
|
BY-30GS
|
BY-30GS
|
BY-40GS
|
|||
|
Working area
|
|
110*110mm(4.3in*4.3in)
150*150mm (5.9*5.9 in)
175*175mm(6.9in*6.9in) Optional
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
Marking Speed
|
|
≤8000mm/s
|
|
|
|||
|
Minimum Line Width
|
|
0.01mm(0.0004in) Depends on the material
|
|
|
|||
|
Minimum Character
|
|
0.2mm(0.008in) Depends on the materials
|
|
|
|||
|
Laser Type
|
|
BOST/ DAVI/ Coherent/ Optional
|
|
|
|||
|
Cooling Type
|
|
Air Cooling
|
|
|
|||
|
Laser Wavelength
|
|
10.64μm
|
|
|
|||
|
Electrical Requirements
|
|
110V-240V/50Hz-60Hz according to local electricity supply
|
|
|
|||
|
Optional Spare Parts
|
|
Rotary/2D worktable/Cutting fixture and so on.
|
|
|
|||
SAMPLE SHOW

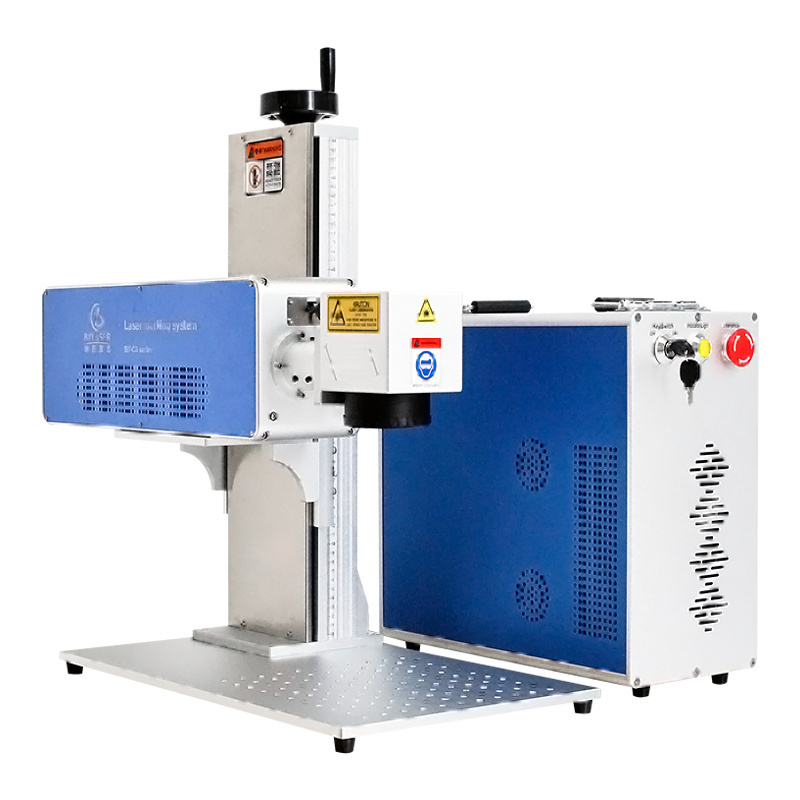

CO2 Laser Marking Machines
1.Mainly used in some occasions with higher requirements and finer precision.Used in food,medicine,wine, electronic
components,integrated circuits,building materials,PE/PVC pipe,wood packaging,acrylic and other non-metallic materials. 2.This
machine uses RF laser,the life is as long as 20,000 hours,marking speed is fast with fine lines. Because of its good
performance,it can also support the production line operation. Its appearance has greatly improved the production efficiency, thus
has obtained the rapid development.
1.Mainly used in some occasions with higher requirements and finer precision.Used in food,medicine,wine, electronic
components,integrated circuits,building materials,PE/PVC pipe,wood packaging,acrylic and other non-metallic materials. 2.This
machine uses RF laser,the life is as long as 20,000 hours,marking speed is fast with fine lines. Because of its good
performance,it can also support the production line operation. Its appearance has greatly improved the production efficiency, thus
has obtained the rapid development.
we can provide free proofing service！
1.Free test samples -
We can carry out free marking effect tests according to your product material
2.Video Live-
You can connect with our sales consultants to watch the production process and the operation of the machine in online video.
3.Customised /OEM-
Customised machines on request，Contact us！
SIMILAR PRODUCTS
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
1.Preparation of Machine-
Prepare the machine according to custom and other requirements.
2.Production debugging-
Choose high-quality accessories for assembly, debug and calibrate to a good state, so that the machine works better.
3.Inspection before shipment-
Carefully check the details of each part of the machine, use professional equipment to test the power and voltage of the laser source, and deliver the best machine to the customer.
FAQ
S1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2010 ,now in Luoyang CN. Committed to
providing the majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings
for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
providing the majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings
for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
