Quick Details
-
Rolling thinckness:
-
0.8-1.2mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
5800*1300*1550mm
-
Weight:
-
kg
-
Feeding width:
-
600-603 for 65/425,675-678 for 65/500
-
Video outgoing-inspection:
-
Available
-
Name:
-

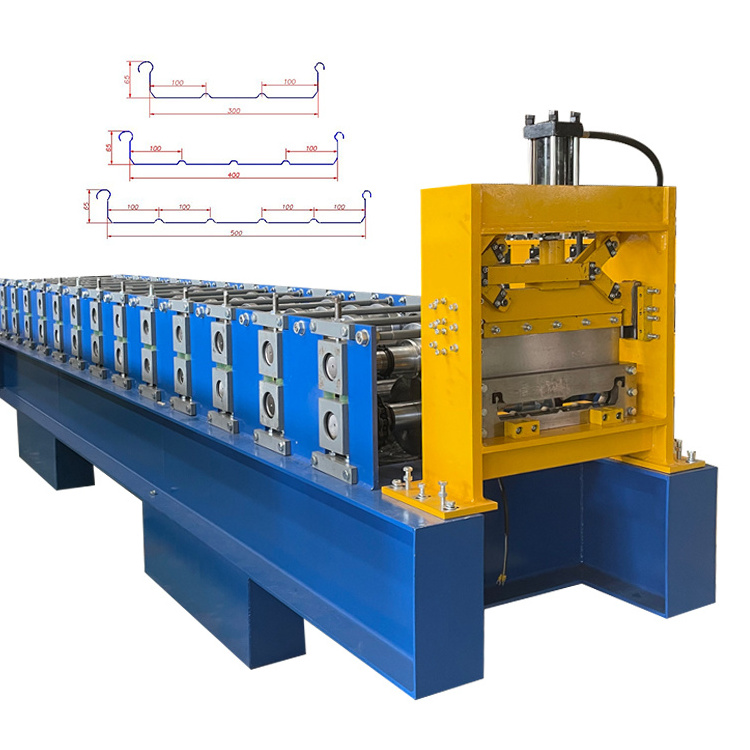

Bemo Standing Seam Roofing Machine
-
Usage:
-
Bolt-hidden roof
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
8-14m/min
-
Rolling thinckness:
-
0.8-1.2mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
5800*1300*1550mm
-
Weight:
-
kg
-
Feeding width:
-
600-603 for 65/425,675-678 for 65/500
-
Video outgoing-inspection:
-
Available
-
Name:
-
Bemo Standing Seam Roofing Machine
-
Usage:
-
Bolt-hidden roof
1. Factory Lifetime Service
:offer technical support for the entire life of our machines.
2. Customized Profile
:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period
:we could supply you the
replacement parts free
of charge for
any damaged parts caused by quality problems.
any damaged parts caused by quality problems.
4. Overseas Services Optional
:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Products Description
|
Main Technical Data:
|
|
|
|
Size
|
YX65-425-500
|
|
|
Dimension
|
5800*1300*1550mm
|
|
|
Motor Power
|
5.5KW*2
|
|
|
Hydraulic Power
|
2.2KW
|
|
|
Forming Steps
|
13Steps
|
|
|
Forming Speed
|
8-14m/min
|
|
|
Voltage
|
380V/50HZ/3PH
|
|
|
Effective Width
|
400mm,425mm
|
|
|
Material Width
|
600-603 for 65/425
675-678 for 65/500 |
|
|
Height of Roofing
|
65mm
|
|
|
Aluminum Thickness
|
0.8-1.2mm
|
|
|
Galvanized Steel Thickness
|
0.7-0.9mm
|
|
|
Control System
|
PLC Control
|
|
Roll Forming Machine
(1) No.of Roller Stations:13 steps
(2) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(3) Material for Shaft:40Cr
(2) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(3) Material for Shaft:40Cr
Cut-Off Device
(1) Material for Cut-off Modular:Cr12mov after treatment
(2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
PLC Control Box
(1) Type:PLC Frequency Control System with touch screen
(2) PLC Brand:Schneider
(2) PLC Brand:Schneider
Profile Drawing
for YX65-425-500 standing seam roofing 300/400/425/500mm 65mm
