Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinoroader
-
Dimension(L*W*H):
-
1900*2500*2100 (L*W*H)
-
Product name:
-
Chip Spreader
-
Aggregate Size(mm):
-
3-30
-
Spreading Width(mm):
-
3000(Difference at 250)
-
Max. Spreading rate (L/m2):
-
22
-
Min. Spreading rate(L/m2):
-
3
-
Spreading Speed(km/h):
-
2.5-4.8
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight:
-
1300 kg
-
Engine Brand:
-
by requirement
-
Production Capacity:
-
0.5-50m3/km2
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinoroader
-
Dimension(L*W*H):
-
1900*2500*2100 (L*W*H)
-
Product name:
-
Chip Spreader
-
Aggregate Size(mm):
-
3-30
-
Spreading Width(mm):
-
3000(Difference at 250)
-
Max. Spreading rate (L/m2):
-
22
-
Min. Spreading rate(L/m2):
-
3
-
Spreading Speed(km/h):
-
2.5-4.8
-
After Warranty Service:
-
Video technical support

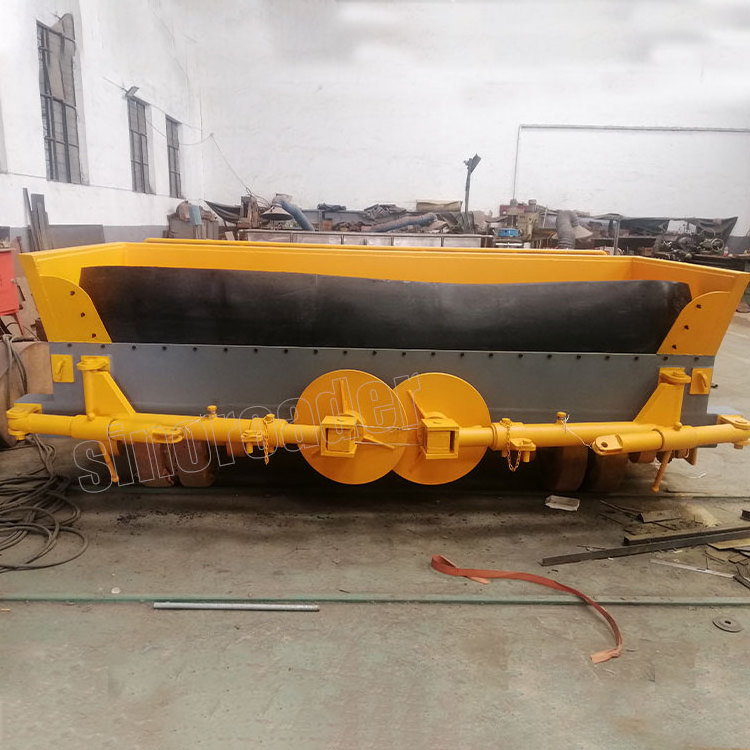

Chip Spreader for Sale:
The automatic chip spreader is a new type of patented road maintenance machinery researched by our company independently. It features easy operation, even spreading capacity and adjustable spreading width and other characteristics. It combines electrical system, pneumatic system and mechanical system in a complex. Used together with our automatic asphalt distributor, it is ideal equipment especially for chip sealing.
Electrical system
1. 16 feed gates can be controlled separately to flexibly adjust spreading width.
2. Hopper is able to be remotely controlled in cabin or operating platform.
3. Perfect lighting system for working at night.
4. Hopper lifting limit alarm is installed to enhance safe working .
5. Quick couplings are applied to connect the e lectrical system of truck and spreader, which is easy to install and disassemble .
Mechanical system
1. Feed gates are controlled by one general switch and 16 sub-switches for group control or separate control.
2. F ine tuning device can adjust single feed gate to effectively adjust spreading evenness and thoroughly solve the problem of un even spreading locally by traditional chip spreader.
3. Exclusive roller anti-slipping device can effectively prevent the aggregates from skidding on the roller .
4. Inclination angle of distributor plate and spreading plate is adjustable for aggregates of 3-30mm.
5. This machine is very easy to install and disassemble .
Air control system
1. The air control s ystem is installed with filter to remove water vapor and foreign matter to ensure reliability of the system.
2. Superior elements ensure that the air circuit work stably and reliably.
