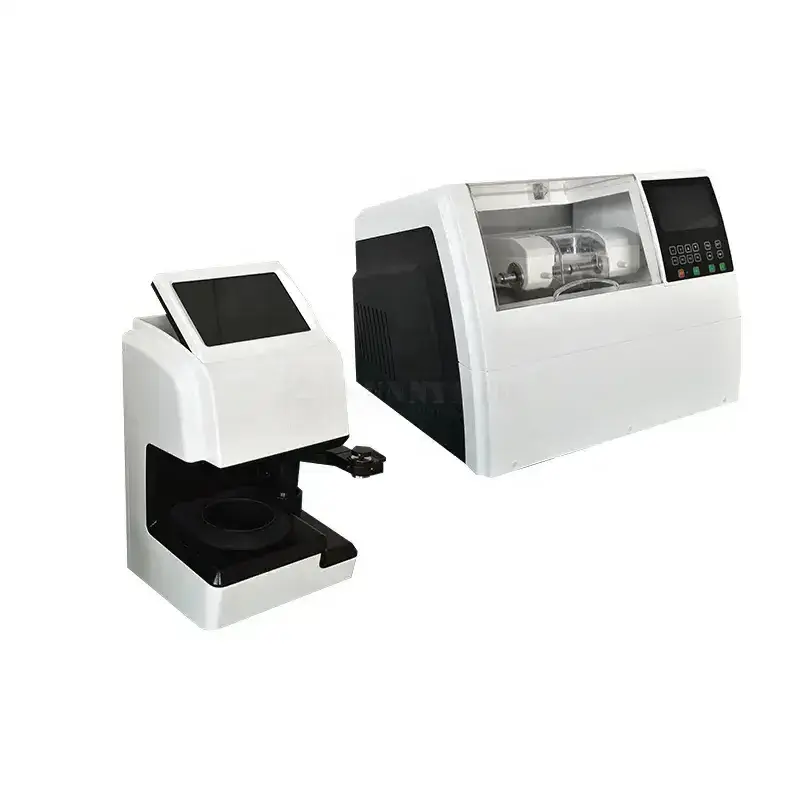

Optical Lens Cutting Grinding Machine Auto Lens Edger Automatic Computer Edger Machine for PC/ CR/ Glass Lens

Optical Lens Cutting Grinding Machine Auto Lens Edger Automatic Computer Edger Machine for PC/ CR/ Glass Lens

FOB Reference Price: Get Latest Price

≥1 Sets

US $2890

≥5 Sets

US $2650

≥10 Sets

US $2540

≥50 Sets

US $2299

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: MKR-800

Product name:: Automatic Computer Edger Machine

Size range of edger:: 22-80 mm

Clamping pressure of edger:: Third gear adjustable

Wheel diameter of edger:: 100 mm

Screen tilt angle of scanner:: 20--100°

Touch screen:: 7inch capacitive screen

Quick Details

Warranty:: 1 years

Place of Origin:: China

Brand Name:: MKR

Model Number:: MKR-800

Product name:: Automatic Computer Edger Machine

Size range of edger:: 22-80 mm

Clamping pressure of edger:: Third gear adjustable

Wheel diameter of edger:: 100 mm

Screen tilt angle of scanner:: 20--100°

Touch screen:: 7inch capacitive screen

Product Description

Feature&Specifications

item	value
Warranty	1 years
Customized support	OEM
Place of Origin	China
Brand Name	MKR
Model Number	MKR-800
Product name	Automatic Computer Edger Machine
Size range of edger	22-80 mm
Clamping pressure of edger	Third gear adjustable
Wheel diameter of edger	100 mm
Screen tilt angle of scanner	20--100°
Touch screen	7inch capacitive screen

Edging system

1. A various of materials of the lens can be processed. rapid edging to be molding. 2. Bevel or platband can be polished. 3. Variours grinding pressure meet the demands of different lenses On-line function

Dimension: 625mm*510mm*510mm Weight: 49kgs

Voltage: AC 220v/110v 50/GOHz Power: 550W

Size range: φ22-80mm Clamping pressure: Third gear adjustable
Wheel diameter: φ100mm

Tracing system:

1. Set the optical scan, the center of positioning as one

2. It takes 0.5 seconds to get the frame shape

3. Real-time imaging guidance confirms whether the best center position is reached 4. Automatically eliminate the lens degree, prism and artificial parallax effect

5. High resolution 1280* 800true color 7inch touch screen

6. At the same time connect two MKR-800 automatic milling machine composed of processing center Simple operation,low failure, maintenance-free

Dimension: 240mmx180mmx130mm
Weight: 5kgs
Voltage: AC 220v/110v 50/GOHz
Power: 60W
Screen tilt angle: 20°-100°
Touch screen: 7 inch capacitive screen
Quantity of connecting with the main machine: 2 units
