Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
Wireless remote control for electric hoist
-
Transmitter Function:
-
2 double -speed buttons
-
Application:
-
Industrial Equipment
-
Transmitter Antenna:
-
Inside
-
Receiver Antenna:
-
Inside / optional external antenna
-
Start:
-
Press the start button
-
IP class:
-
IP65 C
-
Distance:
-
≥ 100 meters / can be customized 300 meters / 500 meters
-
Certification:
-
ce
Quick Details
-
Function:
-
Waterproof, Anti shock
-
Brand Name:
-
LCC
-
Model Number:
-
Q202
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
Wireless remote control for electric hoist
-
Transmitter Function:
-
2 double -speed buttons
-
Application:
-
Industrial Equipment
-
Transmitter Antenna:
-
Inside
-
Receiver Antenna:
-
Inside / optional external antenna
-
Start:
-
Press the start button
-
IP class:
-
IP65 C
-
Distance:
-
≥ 100 meters / can be customized 300 meters / 500 meters
-
Certification:
-
ce

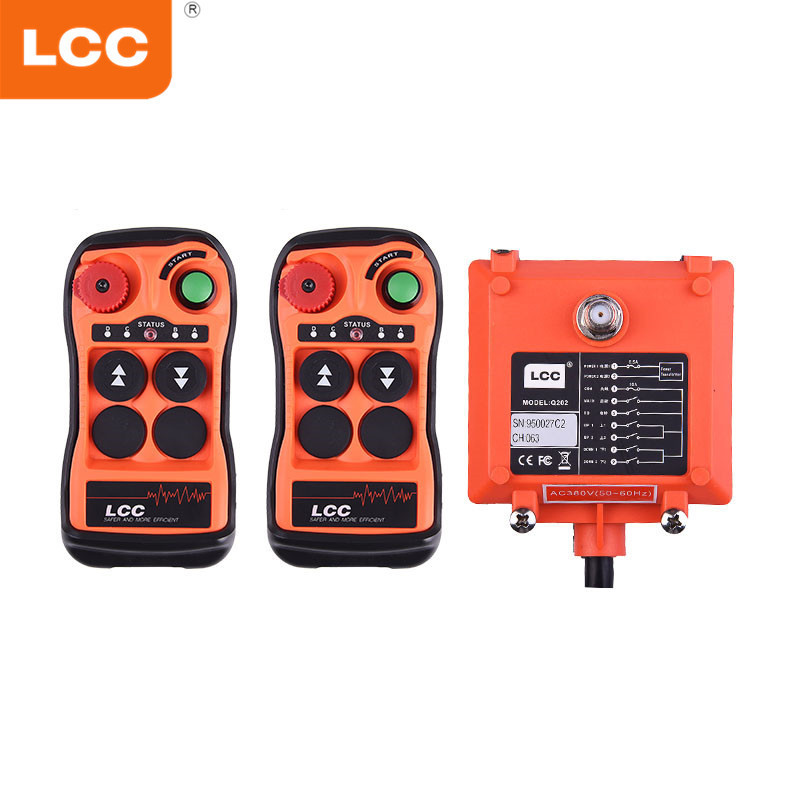

Q202 palfinger crane limit switch remote control button pusher
| TECHNICAL PARAMETERS OF BUTTON Q SERIES | |||||||||||||
| Type | Q200 | Q202 | Q400 | Q404 | Q600 | Q602 | Q606 | Q800 | Q808 | Q1000 | Q1010 | Q1200 | Q1212 |
|
Transmitter
Function |
2 single
-speed buttons |
2 double
-speed buttons |
4 single
-speed buttons |
4 double
-speed buttons |
6 single
-speed buttons |
2 double
4 single
|
6 double
-speed buttons |
8 single
-speed buttons |
8 double
-speed buttons |
10 single
-speed buttons |
10 double
-speed buttons |
12 single
-speed buttons |
12 double
-speed buttons |
|
Transmitter
Dimensions |
14.5x7.5x3.8cm | 19x7.2x3.9cm | 23.9x7.2x3.9cm | ||||||||||
|
Transmitter
Weight |
240g | 300g | 360g | ||||||||||
|
Transmitter
Antenna |
Inside | ||||||||||||
|
Receiver
Antenna |
Inside / optional external antenna | ||||||||||||
|
Start |
Press the start button | ||||||||||||
|
Emergency |
Mushroom conforms to EN3849-1 standard | ||||||||||||
|
Housing |
Reinforced nylon plastic | ||||||||||||
|
IP class |
IP65 | ||||||||||||
|
Distance |
≥ 100 meters / can be customized 300 meters / 500 meters | ||||||||||||
|
Frequency |
433/480MHZ | ||||||||||||
|
Temperature |
-35°C— +75°C | ||||||||||||
|
Button life |
≥2,000,000 times | ||||||||||||
| Power supply | 2 pieces battery (1.5V) | ||||||||||||
|
Continuous
working time |
400 hours (at room temperature) | ||||||||||||
|
Automatic
shutdown |
no shutdown / software can be set for 15 minutes, 30 minutes | ||||||||||||
|
Button Text |
Arrow/English/Chinese/Others | ||||||||||||
|
Receiver
Output |
Relay 5A@250v | ||||||||||||
|
Receiver
Voltage |
AC/DC 24-48V , AC/DC 110-480V | ||||||||||||
Transmitter parameter:
| Frequency | 433/480(MHZ) |
| Weight | 380g |
| Temperature range | -35 ℃~75℃ |
| Average power consumption | 8mA@DC3V(mA@DC) |
| Transmitter RF power | <10(mW) |
| Command response time | <100(ms) |
| Shell material | PA6(30%GF) |
| Control method | GFSK |
| Control distance | 100m |
| Protection level | IP65 |
| power supply | LR6(AA)1.5V*2DC3V(DC) |
|
Frequency control |
PLL |
| Stop command response time | <100(ms) |
Receiver parameter:
| Frequency | 433/480(MHZ) |
| Weight |
1700g |
| Shell material | PA6(30%GF) |
| Average power consumption | 15mA@AC220V |
| Power supply(AC/DC) | Low pressure24-48V high pressure110-460V |
| Operating temperature | -35 ℃~+70℃ |
| Receiving sensitivity |
-112(dBm) |
| Receiving capacity | 5A@250W(A@AC) |
| Control distance | 100m |
| Frequency control | PLL |
| Distribution method | GFSK |
| Reaction time |
50-100(ms) |
| Protection level | IP65 |
