Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Chinese
-
Surface Treatment:
-
Brushed, Mirror, PE Coated, PVDF Coated
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Trubond
-
Model Number:
-
Trubond-20 aluminum composite panel
-
color:
-
Customized
-
panel thickness:
-
2mm 3mm 4mm 6mm 8mm 10mm
-
aluminum coils thick:
-
0..18mm 0.21mm 0.3mm 0.4mm 0.5mm
-
coating:
-
PE PVDF NANO
-
Material:
-
1100/3003/5005 Aluminum Alloy
-
Type:
-
Building Material Wall Decorative
-
Certificate:
-
CE/ISO9001
-
Width (mm:
-
Conventional 1220 mm, 1250 mm, 1500 m
-
aluminum coils thickness:
-
0.1mm -0.5mm
Quick Details
-
Warranty:
-
More than 5 years
-
Size:
-
1220*2440mm, 4X8ft
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Outdoor
-
Design Style:
-
Chinese
-
Surface Treatment:
-
Brushed, Mirror, PE Coated, PVDF Coated
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Trubond
-
Model Number:
-
Trubond-20 aluminum composite panel
-
color:
-
Customized
-
panel thickness:
-
2mm 3mm 4mm 6mm 8mm 10mm
-
aluminum coils thick:
-
0..18mm 0.21mm 0.3mm 0.4mm 0.5mm
-
coating:
-
PE PVDF NANO
-
Material:
-
1100/3003/5005 Aluminum Alloy
-
Type:
-
Building Material Wall Decorative
-
Certificate:
-
CE/ISO9001
-
Width (mm:
-
Conventional 1220 mm, 1250 mm, 1500 m
-
aluminum coils thickness:
-
0.1mm -0.5mm

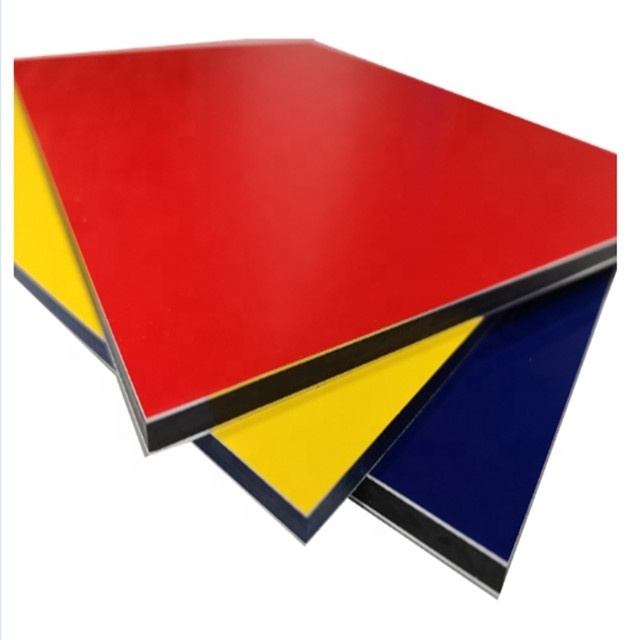

China Factory Direct Sale Aluminum Composite Panel Alucobond ACP
PE/PVDF Coated ACP Constitution Structure:
1) Protective film with Trubond /OEM brand or as requested.
2) Front side: aluminum roll coated with PE/PVDF
3) Macromolecular lamination film.
4) Core: Non-toxic polyethylene.
5) Macromolecular lamination film.
6) Rear side: Aluminum coated with primer or as requested.
aluminium composite panel sheet manufacturers
Aluminium composite panel consisting of two aluminium cover sheets(AA1100 Series or AA3003 Series) sandwiching a non-toxic low density polyethylene core produced from a continuous extrusion process.Used for cladding,advertising.It’s usually called Aluminium composite panel,shortened as ACP or ACM.
Product Description
1)Material:
B) Core: nontox low density polyethylene.
C) Back: aluminium alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminium alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .
2)Dimensions:
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-standard size are available according to requirement.
3)Standard:
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The North America ASTM standard.
ACP compared with different products( Lightness / Rigidity ):
The composite structure of Trubond results in an impressive strength-to-weight ratio, even when comparing large panel sizes.
Despite its low weight, which makes Trubond easy to transport and handle in the factory and on site, its rigidity and high
strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of
thickness and weight of panels with equal rigidity.
Trubond ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity
|
Trubond ACP
|
|
Aluminum
|
|
|
|||
|
Rigidity (E J)
|
Section modulus
|
Thickness
|
Weight
|
Thickness
|
|||
|
1250 kN cm2/m
|
1.25 cm3/m
|
3 mm
|
4.5kg/m2
|
2.7 mm
|
|||
|
2400 kN cm2/m
|
1.75 cm3/m
|
4mm
|
5.5kg/m2
|
3.3 mm
|
|||
Trubond
ACP Physical Properties for Panel:
|
Panel density
|
5.5kg/m2
|
|
Aluminium Skin Thickness
|
Average 7.0 N/mm
|
|
Tensile Strength
|
52.5 Mpa
|
|
Flexural Strength
|
100.0 Mpa
|
|
Shear Strength
|
28.1 Mpa
|
