IPTV OTT System Streaming Server Live Broadcasting Encoder H265 Encoder Video

IPTV OTT System Streaming Server Live Broadcasting Encoder H265 Encoder Video

FOB Reference Price: Get Latest Price

≥1 Pieces

US $179

≥20 Pieces

US $159

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Nature:: IPTV Streaming Encoder Video Cable TV Digital Encoder

WiFi Module:: Optional

Encoder Decoder:: for Real Time IPTV

Compression:: H.264 Main Profile / H.264 High Profile and AAC audio

Protocol:: HLS/RTMP / RTSP / HTTP / UDP protocol

Input:: Full HD+AV +3.5mm

Output:: TS over IP output

Audio Compression:: AAC , MP3

Resolution:: Support up to 720P, 1080P HD video input

Bitrate:: VBR/CBR

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DIGICAST

Model Number:: DMB-8900A

Nature:: IPTV Streaming Encoder Video Cable TV Digital Encoder

WiFi Module:: Optional

Encoder Decoder:: for Real Time IPTV

Compression:: H.264 Main Profile / H.264 High Profile and AAC audio

Protocol:: HLS/RTMP / RTSP / HTTP / UDP protocol

Input:: Full HD+AV +3.5mm

Output:: TS over IP output

Audio Compression:: AAC , MP3

Resolution:: Support up to 720P, 1080P HD video input

Bitrate:: VBR/CBR

More Specification

OVERVIEW

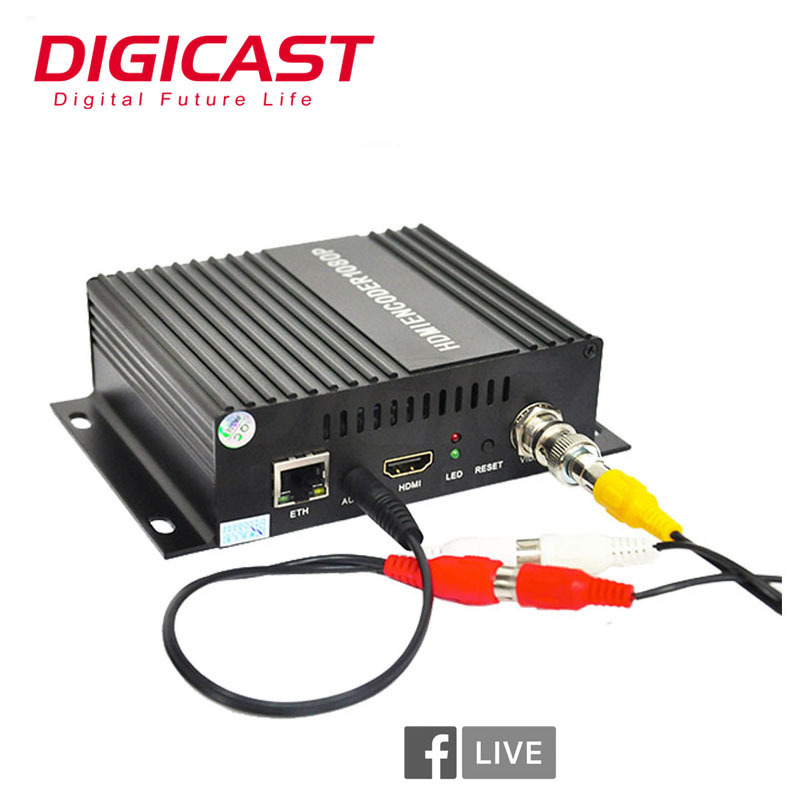

DMB-8900A Enhanced ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/AVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate which can efficiently save the cost of bandwidth.

DMB-8900A Enhanced accepts 1*HDMI/VGA/AV/YPbPr input and outputs 4 channels TS over IP in H.264 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. Moreover, it provides username and password matching function required from a destination server, aiming at avoiding unauthorized streamings.

DMB-8900A Enhanced provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.

FEATURES

◇Abundant inputs for option:SDI,Full HD,CVBS,YPbPr,VGA
◆Up to 8 TS over IP stream out
◇Support up to H.265 Main Profile/ High Profile and MP3 & AAC audio
compression
◆Bitrate mode: CBR / VBR
◇Capable of image parameter settings
◆Switchable of audio output mode: Left, right and Stereo
◇Configurable of Multi-rate, Multi-resolution, Multi-protocol
◆Providing RTSP / HTTP / UDP,RTMP and HLS(m3u8) protocol
◇Support HDCP protocol

◆Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.

◇Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software players(
such as VLC)
◆Support ONVIF Network Video Protocol
◇Providing user name, password matching function which required
from destination server
◆Support multiple equipments display at the same time on a computer
◇System supports WINDOWS XP / VISTA / SERVER2003 /
SERVER2008 / WIN7 32 and WIN7 64, LINUX
◆Web-based management
◇Full-duplex mode 1000M
◆-Insertable of logo and Scroll Caption; Adjustable of audio gain

Specification
VIDEO SPECIFICATIONS	Video compression: H.264/AVC High Profile Level 4.0 Video inputs: 1*Full HD 1.3a version (support HDCP protocol)/CVBS/VGA/YPbPr Analog video input mode: PAL, NTSC
AUDIO SPECIFICATIONS	Audio compression: AAC, MP3 Sampling rate: Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bit Rate:48000,64000,96000,128000,160000,192000,256000 Re-sample:32000,44100
OUTPUTS(IP output)	Transport protocol: TS over IP output, RTSP/HTTP/UDP or RTMP protocol For Full HD to IP output, 4*TS over IP stream out(HTTP/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application, 2 channels with lower resolution(up to 720P) for small screen application) Connector: RJ45, 1000M
Resolution	Full HD main stream: 1920x1080,1680x1056,1280x720,1024x576,850x480, 720x576,720x540,720x480,720x404,704x576,640x480, 640x360,auto Full HD sub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404, 704x576,640x480,640x300,352X288,320X240,320X180, auto Bit-rate: 16kbps ~ 12Mbps, CBR/VBR Video pre-processing: Noise reduction, Sharpen, Filtering
GENERAL OPTIONS	SYSTEM Configuration Interface: Web-based management. Upgraded: via network Connector: RJ45, 1000M Ethernet interface. PHYSICAL AND POWER Voltage: AC220V±10%, 50/60 Hz Consumption: 80W Operating temperature: -20~80°C Dimensions: 250mm(W)250mm(D)80mm(H) Weight: 0.8kg/pc

Why Choose Us

FAQ

Q1:What is the application for your encoder	Q2: Can I get some Samples for testing?	Q3: Can you provide OEM service as per our request?
A1: Our Video to IP Encoder series designed for streaming the Video/Audio channels to Media Live Platform(Wowza/Ustream,Facebook...) and Servers Best Partner for IPTV&OTT Project, also can be used for Live Applications Churchs, Schools, Classrooms, GYM, Airport, Business, Trains, homes, video conference and so on	A2: Yes, sample order acceptable . Furthermore you can check the web management by remote, we can sending the testing TS files, pushing the streaming to your servers Our professional engineers will offer the services according your testing requirements	A3: Yes, DIGICAST as the original factory , our R&D department can realized function customization based on your project application . also we offer Brand OEM services to global Agents &Clients Please consult the sales for detailed requirements.

Q4: What about your Warranty?	Q5: What is your Lead time and method of Shipment?	Q6: What's your Payment method supported?
A4: All products has 5 years' warranty whatever you ordered from our Agents or from us directly , as long as it is DIGICAST Brand,we offer original factory Warranty and technical supports online/phone, repair services by our experienced after-sales specialist. Service time: 9:00AM~23:59PM(GMT+8)	A5: we are factory ,adequate inventory, Generally delivery within 1-2 workdays after payment confirmed , all goods have to go through 100% QC testing and Aging Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 3-6 workdays to your designated address	A6: We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram ,Alibaba Trade Assurance,etc.
