Quick Details
-
Brand Name:
-
SENTEC
-
Model Number:
-
WS200
-
Product Name:
-
Wind Speed Sensor
-
Range:
-
0-30m / S; 0-50m / S; 0-60m / S
-
Accuracy:
-
±0.5m/S (<5m/S); ±3%FS (≥5m/S)
-
Power supply:
-
5-24vdc
-
working temperature:
-
-20~+85°C
-
Output signal:
-
4~20mA/0~5V/0~10V/RS485/pulse
-
Electrostatic protection:
-
15KV
-
Material:
-
Aluminum alloy
-
Electrical connections:
-
M12 connector
-
keywords:
-
aluminum wind speed sensor
Quick Details
-
Warranty:
-
12 month
-
Type:
-
wind speed sensor
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SENTEC
-
Model Number:
-
WS200
-
Product Name:
-
Wind Speed Sensor
-
Range:
-
0-30m / S; 0-50m / S; 0-60m / S
-
Accuracy:
-
±0.5m/S (<5m/S); ±3%FS (≥5m/S)
-
Power supply:
-
5-24vdc
-
working temperature:
-
-20~+85°C
-
Output signal:
-
4~20mA/0~5V/0~10V/RS485/pulse
-
Electrostatic protection:
-
15KV
-
Material:
-
Aluminum alloy
-
Electrical connections:
-
M12 connector
-
keywords:
-
aluminum wind speed sensor

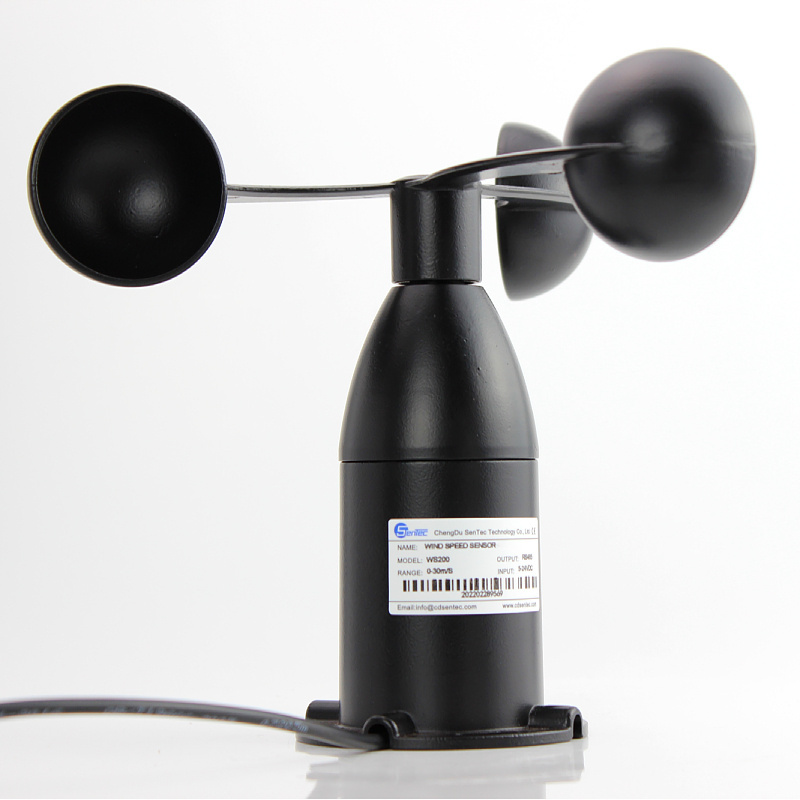

WS200 wind speed sensor adopts non-contact magnetic sensor measurement principle, high measurement accuracy and high reliability; overall aluminum alloy material, polyester coating, strong wind and corrosion resistance; wide wind speed measurement range, low starting wind speed; compact design, sensor circuit protection uses a fault-tolerant design.The sensor adopts all-aluminum alloy material, high performance, strong anti-radio frequency, anti-electromagnetic interference, anti-lightning surge protection.
|
Operating Voltage
|
12~30VDC,15~30VDC
|
|
|
||
|
Material
|
Polycarbonate plastics, aluminum alloy metal
|
|
|
||
|
Output signal
|
4~20mA, 0~5V, 0~10V, RS485,Pulse
|
|
|
||
|
Measuring range
|
Wind seed: 0~30m/s, 0~60m/s
|
|
|
||
|
Accuracy
|
±0.5m/s(<5m/s)
|
|
|
||
|
Operating temperature
|
-20~+85°C, Humidity: 0%~95% (non-condensing)
|
|
|
||
|
Starting wind speed
|
≤0.5m/S
|
|
|
||
|
Surge protection
|
EMC III
|
|
|
||
|
Wind strength
|
>70m/S 30min
|
|
|
||
|
Direction
|
16
|
|
|
||
|
Resolution
|
22.5°
|
|
|
||
|
Electrostatic protection
|
15KV
|
|
|
||
|
The main body material
|
Aluminum alloy/polyester coating
|
|
|
||
|
Protection level
|
IP65
|
|
|
||
MAIN FEATURES
* The sensor has the advantages of compact design, high measurement accuracy, fast response speed and good interchangeability.
* Realize low cost, low price and high performance.
* Flange installation mode can realize lower outgoing line and side outgoing line, which is simple and convenient.
* Reliable performance, ensure normal operation and high data transmission effificiency.
* The sensor has the advantages of compact design, high measurement accuracy, fast response speed and good interchangeability.
* Realize low cost, low price and high performance.
* Flange installation mode can realize lower outgoing line and side outgoing line, which is simple and convenient.
* Reliable performance, ensure normal operation and high data transmission effificiency.
