Quick Details
-
Model Number:
-
TU/7-16S-100AP
-
Product name:
-

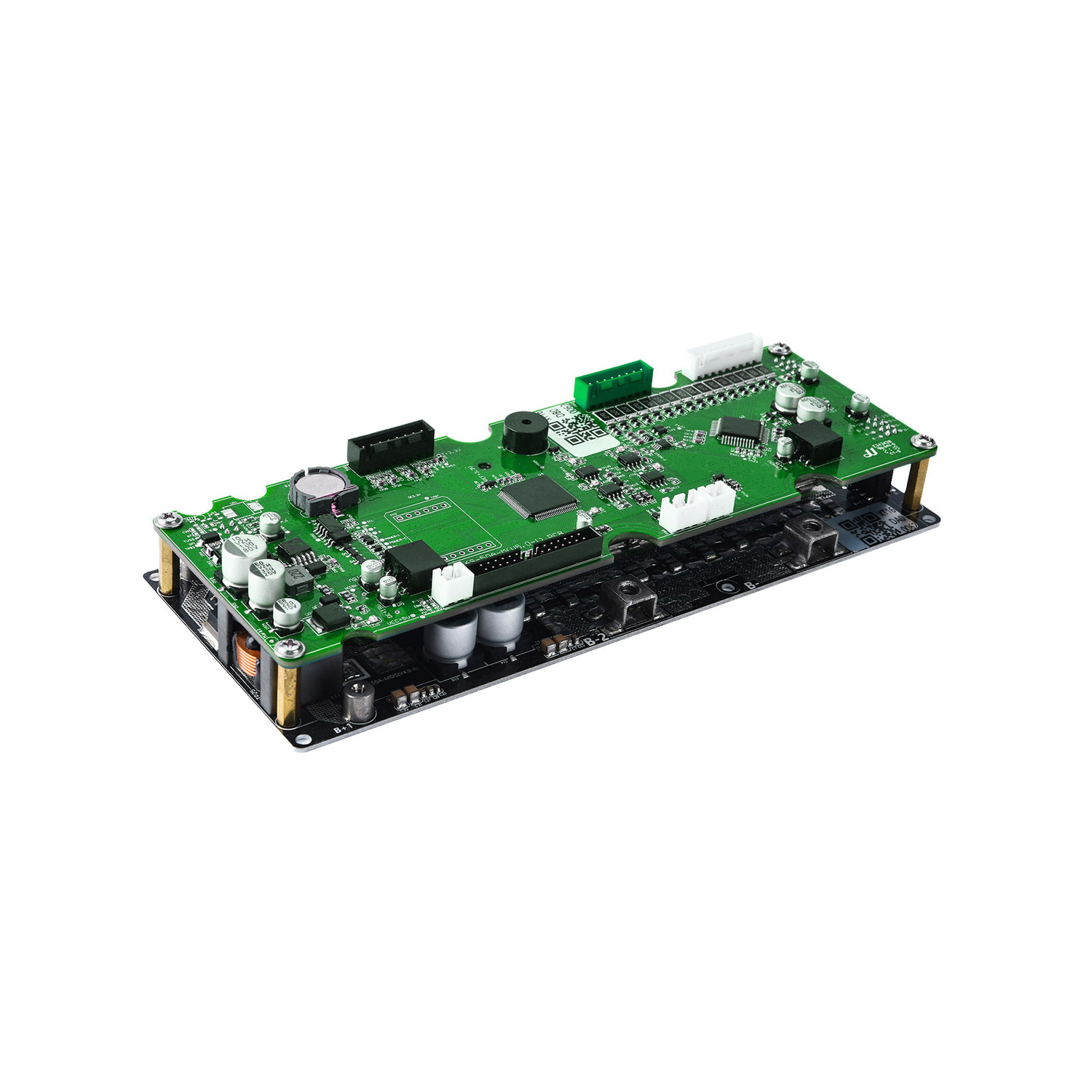

Battery Management System
-
Dimensions (L*W*D):
-
201*79*32mm
-
Number of Strings Supported:
-
7-16s
-
Current Acquisitionp:
-
0.05A~230A / -(0.05A~460A)
-
Continuous Charging Current:
-
50A/100A/150A/200A
-
Continuous Discharging Current:
-
50A/100A/150A/200A
-
Short-Circuit Protection Current:
-
200A/350A/400A/550A
-
Battery Pack Charging Voltage:
-
30V~60V
-
Power Consumption:
-
<1.7W/<0.04W
-
Cell Voltage Acquisition:
-
0V~4.5V≤ ±20mv
Quick Details
-
Application:
-
Solar Energy Storage Systems
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Wysher
-
Model Number:
-
TU/7-16S-100AP
-
Product name:
-
Battery Management System
-
Dimensions (L*W*D):
-
201*79*32mm
-
Number of Strings Supported:
-
7-16s
-
Current Acquisitionp:
-
0.05A~230A / -(0.05A~460A)
-
Continuous Charging Current:
-
50A/100A/150A/200A
-
Continuous Discharging Current:
-
50A/100A/150A/200A
-
Short-Circuit Protection Current:
-
200A/350A/400A/550A
-
Battery Pack Charging Voltage:
-
30V~60V
-
Power Consumption:
-
<1.7W/<0.04W
-
Cell Voltage Acquisition:
-
0V~4.5V≤ ±20mv
Product Description
Key Features
Less temperature rise
: Temperature rise from 10 to 35°C at full power operation.
Stronger adaptability
: Parallel connection, pre-charging, heating, current limiting, dry contact, LCD, CAN, etc.
Rich communication methods
:
485, CAN, SNMP, TCP/IP, NB-IOT, 9/800, to meet different needs of customers.
High precision low current acquisition
:
Current acquisition range of minimum 0.05 A (actual current) for accurate estimation of battery system SOC.
Powerful parallel capability
:
3 to 100 groups of batteries are connected in parallel as needed to meet the capacity expansion requirements of different application scenarios.
Basic Functions for Perfect Performance
Voltage Detection and Protection
: Prevents overvoltage and undervoltage conditions in the battery.
Current Detection and Protection
: Monitors charging and discharging currents to prevent excessive current flow.
Temperature Detection and Protection
: Monitors the temperature of battery cells, MOS, and the environment, providing warnings and protection during high and low-temperature charging and discharging.
Balancing Function
:
Effectively balances the charge levels of individual cells, enhancing the battery's lifespan.
Short Circuit Protection
:
Detects and protects against discharge circuit short circuits promptly.
Reverse Polarity Protection
:
Activates reverse polarity protection upon detecting output reversal when powered on, preventing damage to connected devices.
Smart Sleep Mode
:
Automatically enters sleep mode when voltage is too low, extending battery life.
Low Voltage Limiting Current
:
Automatically initiates limited current charging when the voltage is too low due to prolonged storage, preventing battery damage from high currents.
Remote Smart Management (Optional)
Equipped with an optional Wi-Fi module for cloud connectivity. Easily monitor, control, and perform remote upgrades through a mobile app or PC browser.
Bluetooth Connectivity (Optional)
Equipped with an optional Bluetooth module for mobile app monitoring, settings adjustment, and battery firmware upgrades.Convenient and efficient.
Anti-theft Function (Optional)
With an optional gyroscope, when the anti-theft function is activated and detects movement or tilting, it triggers theft protection.
Product Parameters
Model List
|
Model
|
TU/7-16S-50AP
|
TU/7-16S-100AP
(This item)
|
TU/7-16S-150AP
|
TU/7-16S-200AP
|
|
Dimensions (L*W*D)
|
201*79*32mm
|
201*79*32mm
|
201*79*32mm
|
201*79*32mm
|
|
Number of strings supported
|
7-16S
|
7-16S
|
7-16S
|
7-16S
|
|
Current acquisitionP
|
0.05A~105A / -(0.05A~210A)
|
0.05A~230A / -(0.05A~460A)
|
0.05A~300A / -(0.05A~600A)
|
0.05A~300A / -(0.05A~600A)
|
|
Continuous charging current
|
50A
|
100A
|
150A
|
200A
|
|
Continuous discharging current
|
50A
|
100A
|
150A
|
200A
|
|
Short-circuit protection current
|
200A
|
350A
|
400A
|
550A
|
Motherboard
|
Type
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
Weight(g)
|
|
BMS
|
201
|
79
|
32
|
304
|
|
LED indicator board-dry contact
|
130
|
31
|
24
|
35
|
|
LCD display board parallel
|
130
|
100
|
29
|
151
|
Basic Parameters
|
Item
|
Specification
|
Error Range
|
Notes
|
|
Operating voltage
|
DC14~60V
|
/
|
/
|
|
Operating temperature
|
-20ºC~70ºC
|
/
|
/
|
|
Operating humidity
|
≤90%
|
/
|
/
|
|
Power consumption
|
<1.7W/<0.04W
|
/
|
Working state / Sleep state
|
|
Number of series supported
|
15~16
|
/
|
Series
|
|
Battery pack charging voltage
|
30V~60V
|
/
|
/
|
|
Cell voltage acquisition
|
0V~4.5V
|
≤ ±20mV
|
/
|
|
Current acquisition
|
0.05A~210A / -0.05A~-420A
|
Accuracy±2%FS+0.3A(100A)
|
/
|
|
Battery temperature acquisition (four channels)
|
-45ºC~110ºC
|
≤ ±3ºC
|
|
|
Ambient temperature acquisition
|
-45ºC~110ºC
|
≤ ±3ºC
|
|
|
MOS temperature acquisition
|
-45ºC~110ºC
|
≤ ±3ºC
|
|
|
Continuous charging current
|
100A
|
N/A
|
N/A
|
|
Constant charging current
|
1~10A
|
|
Adjustable
|
|
Continuous discharge current
|
100A
|
N/A
|
/
|
|
Short-circuit protection current
|
350A
|
N/A
|
100uS
|
|
Heating current
|
10A
|
N/A
|
Continuous heating
|
|
|
RS485&CAN
|
RS485, 9600 baud rate by default
CAN, 500K baud rate by default |
Optional
|
|
LED indication
|
LED4
|
>SOC 5%
|
/
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LED3
|
>SOC 25%
|
/
|
|
|
LED2
|
>SOC 50%
|
/
|
|
|
LED1
|
>SOC 75%
|
/
|
|
|
ALM
|
Fault indication
|
/
|
|
|
RUN
|
Operation indication
|
/
|
|
LCD display
|
Resolution 20*4
|
/
|
Optional
|
|
Monitoring software
|
Upper computer software
|
/
|
/
|
Without Heat Sink
With Heat Sink
Details Images & Packing
