- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-FW-1-T
-
IP level:
-
IP68
-
Material:
-
Stainless steel
-
Mounting Hole Size:
-
19mm Diameter
-
Function:
-
1NO
-
LED color:
-
red/yellow/blue/green/white
-
PAYMENT:
-
Paypal\TT\Western Union
-
Shipping By:
-
Express or by sea
-
Connection way:
-
with wire directly
-
Head shape:
-
Flat head
-
Packing:
-
200pcs/inner carton
-
Operation type:
-
Momentary/Latching
Quick Details
-
Protection Level:
-
IP67/IP68
-
Max. Current:
-
20A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-FW-1-T
-
IP level:
-
IP68
-
Material:
-
Stainless steel
-
Mounting Hole Size:
-
19mm Diameter
-
Function:
-
1NO
-
LED color:
-
red/yellow/blue/green/white
-
PAYMENT:
-
Paypal\TT\Western Union
-
Shipping By:
-
Express or by sea
-
Connection way:
-
with wire directly
-
Head shape:
-
Flat head
-
Packing:
-
200pcs/inner carton
-
Operation type:
-
Momentary/Latching

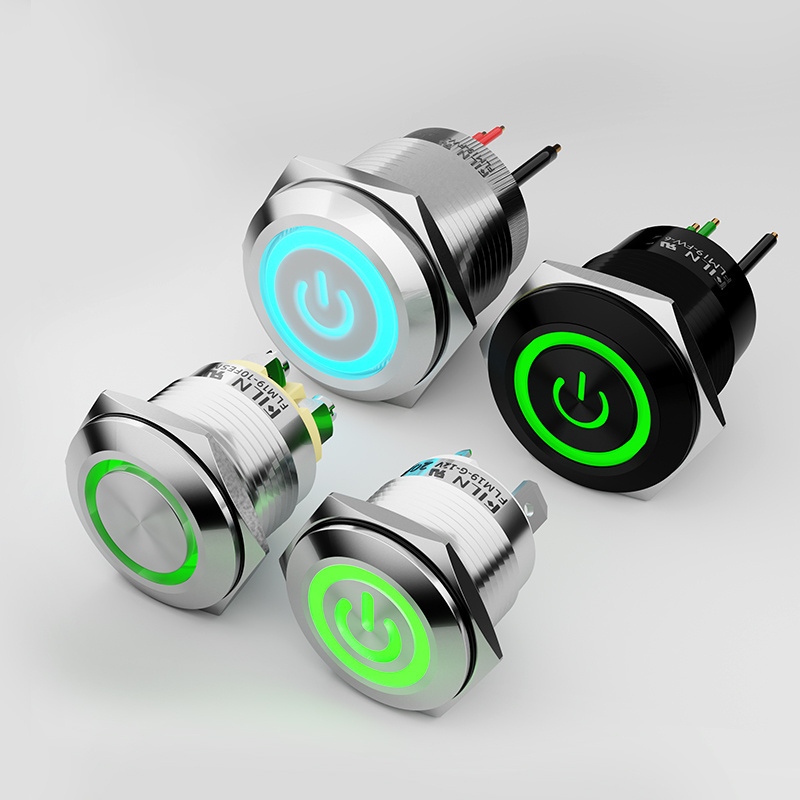

FILN 19mm Waterproof Push Button Switches Illuminate On-Off with Ring LED Power Symbol
| Production Series | FLM19-G-12V | Light Guide Button | PC plastic |
| Button Shape | round | Actuator | Zinc Alloy, Stainless Steel, Brass |
| Button LED Color |
Red, Blue, Green, Yellow, White, Bicolor, tricolor |
Housing Sleeve | Zinc Alloy, Stainless Steel, Brass |
| Mechanical Life | The 500 thousand time | Button Pin | H62 Copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP67 push button switch | Nut | H59 nickel plated brass |
| Rated Voltage | 12V(DC) 250(AC)switch | Housing | PA66+GF20% nylon |
| Rated Current | 20A(DC)20A(AC)button switch | Light Source | LED button switch |
| Rated Power | 12v 110v(DC)3000W(AC) | Resistor | Metal film |
| Operating Temperature | -40℃~+85℃ | Contact | AgCdO12 |
FILN 19mm Waterproof Push Button Switches Illuminate On-Off with Ring LED Power Symbol
This electronic push button switch has a strong current support, capable of handling up to 20AMP of direct current.
It not only has single and dual-color lights available but can also be customized as a locked or reset switch, meeting the diversified needs of different customers.
This switch by FILN is designed considering the needs of outdoor usage, having an IP65/IP67/IP68 waterproof level.
