Quick Details
-
Model Number:
-
150bar
-
Brand Name:
-
HUANAN(SCSG)
-
Capacity:
-
40L Cylinder
-
Test Pressure:
-
250Bar
-
Working Pressure:
-
150bar
-
Weight:
-
48kg
-
Heat Treatment:
-
Tempering
-
Certification:
-
TPED/ISO/DOT
-
Color:
-
Customers' Request
-
Wall Thickness:
-
5.7mm 40L Cylinder
Quick Details
-
Material:
-
Steel
-
Use:
-
Industrial Gas
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
150bar
-
Brand Name:
-
HUANAN(SCSG)
-
Capacity:
-
40L Cylinder
-
Test Pressure:
-
250Bar
-
Working Pressure:
-
150bar
-
Weight:
-
48kg
-
Heat Treatment:
-
Tempering
-
Certification:
-
TPED/ISO/DOT
-
Color:
-
Customers' Request
-
Wall Thickness:
-
5.7mm 40L Cylinder

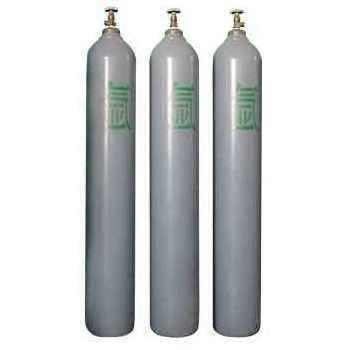

Seamless steel gas cylinders are widely used to store and transport gases such as for oxygen, hydrogen, nitrogen, argon, helium, air, carbon dioxide, carbon monoxide etc.We are Specialized manufacture h igh-pressure gas cylinders by high quality seamless steel pipe at consistent height,smoothly painting and excellent properties.It can be widely used for steel cutting, welding. electronic,media and other fields. Our Cylinders are certificated by GB5009,GB 584, ISO9809-1,ISO9809-3,and Pass the strict interational organization TUV.
ISO9809-3 Standard
| Type | Outside Diameter (mm) | Water Capacity (L) | Height Without Valve (mm) | Weight (Without Valve/cap) kg | Service Pressure (Mpa) | Test Pressure (Mpa) | Design Wall Thickness (mm) | Material |
| WMA 219-19-15 | 219 | 19 | 685 | 27 | 150 | 250 | 5.7 |
37Mn
|
| WMA219-20-15 | 20 | 715 | 28 | |||||
| WMA219-25-15 | 25 | 865 | 33 | |||||
| WMA219-28-15 | 28 | 955 | 36 | |||||
| WMA219-30-15 | 30 | 1015 | 38 | |||||
| WMA219-31-15 | 31 | 1045 | 39 | |||||
| WMA219-33-15 | 33 | 1105 | 41 | |||||
| WMA219- 34 -15 | 34 | 1135 | 42 | |||||
| WMA219- 35 -15 | 35 | 1165 | 43 | |||||
| WMA219- 36 -15 | 36 | 1195 | 44 | |||||
| WMA219- 37 -15 | 37 | 1225 | 45 | |||||
| WMA219-38-15 | 38 | 1255 | 46 | |||||
|
WMA219- 39 -15 |
39 | 1285 | 47 | |||||
|
WMA219- 40 -15 |
40 | 1315 | 48 | |||||
| WMA219- 42 -15 | 42 | 1375 | 50 | |||||
| WMA219- 44 -15 | 44 | 1435 | 52 | |||||
| WMA219- 45 -15 | 45 | 1465 | 53 | |||||
| WMA219- 47 -15 | 47 | 1525 | 55 | |||||
| WMA219-50-15 | 50 | 1615 | 58 |
