Quick Details
-
Type:
-
Grade 2 Heavy Duty Commercial Door Lock
-
Function:
-
PS (ET, BK, ST, CL, CM, HT, DM)
-
Finish:
-
SS/32D, SN/15, SC/26D, PB/3, RB/10B...
-
Backset:
-
2-3/4"(70mm) standard, 2-3/8"(60mm) optional
-
Latch:
-
1/2" throw dead latch and spring latch
-
Quality:
-
ANSI Grade 2 Exceeds 400,000 Cycles
-
Door Thickness:
-
1-3/8"(35mm) to 2"(50mm)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TRUST
-
Material:
-
Zinc Alloy & SUS304
-
Type:
-
Grade 2 Heavy Duty Commercial Door Lock
-
Function:
-
PS (ET, BK, ST, CL, CM, HT, DM)
-
Finish:
-
SS/32D, SN/15, SC/26D, PB/3, RB/10B...
-
Backset:
-
2-3/4"(70mm) standard, 2-3/8"(60mm) optional
-
Latch:
-
1/2" throw dead latch and spring latch
-
Quality:
-
ANSI Grade 2 Exceeds 400,000 Cycles
-
Door Thickness:
-
1-3/8"(35mm) to 2"(50mm)

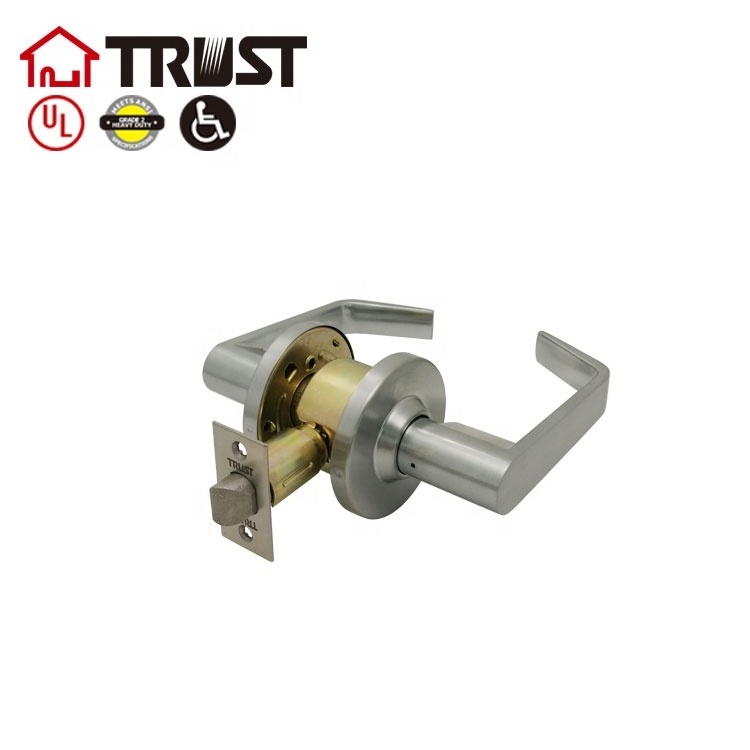

US Standard ANSI Grade 2 Heavy Duty Commercial Door Lock 4473
**Heavy duty commercial Lever Lock-Meets with ANSI A156.2 Grade 2 Exceeds 400,000 Cycles.
**High Security Level: Thru bolts are provided and recommended for use in high security doors.
1. Cylinder Solid Brass 5 or 6 pin tumbler Removable & rekeyable cylinder
2. Knob/Rosette 304 SS or solid brass , Knob 54mm Diam, Rosette 75mm Diam;
3. Latch:
304SS material tongue & Faceplate; 70mm(2-3/4") as standard; 60mm is optional;
4. Faceplate:
Square corner, standard (LxW): 1" X 2-1/4" (25*57*1.5mm), 1-1/8" X 2-1/4" ( 28.6*57*1.5mm) as optional.
5. Strike:
- heavy gauge T" Shape strike plate LxW: 70x28mm (standard) 2-3/4"(70mm) x 28mmx1.6mm,304SS material.
- Optional ASA strike 4-7/8"(123.8mm) x 1 1/4"(31.7mm) x2.0mm, #430SS material.
6. Backset: 70mm(2-3/4") as standard; 60mm(2-3/8") also available.
7. Door Thick: Fit wood or metal doors from 1-3/8" (35mm) to 2"(50mm) thick as standard;
8. Finish: SS/32D, SN/15, SC/26D, RB/10B, PB/3, AB/5, CP/26 or optional
9. Keyway: SC1, KW1, Ya or C4 optional.
10. Function: ET(Entrance), BK(Privacy), PS(Passage), ST(Storeroom), CL(Classroom), CM( Communication), DM(Dummy)
11. Door Prep: Cross bore 2-1/8"(54mm),Edge bore1"(25mm),Latch face 1"x2-1/4"(25x57mm).
