Quick Details
-
Brand Name:
-
asia-teco
-
Product Name:
-
RFID Integrated Reader
-
Application:
-
access control system
-
Material:
-
glass panel+Aluminum Alloy
-
Working frequency:
-
125Khz+13.56Mhz dual band
-
Working mode:
-
wiegand 26/34 output
Quick Details
-
Frequency:
-
125KHz+13.56Mhz
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
asia-teco
-
Product Name:
-
RFID Integrated Reader
-
Application:
-
access control system
-
Material:
-
glass panel+Aluminum Alloy
-
Working frequency:
-
125Khz+13.56Mhz dual band
-
Working mode:
-
wiegand 26/34 output

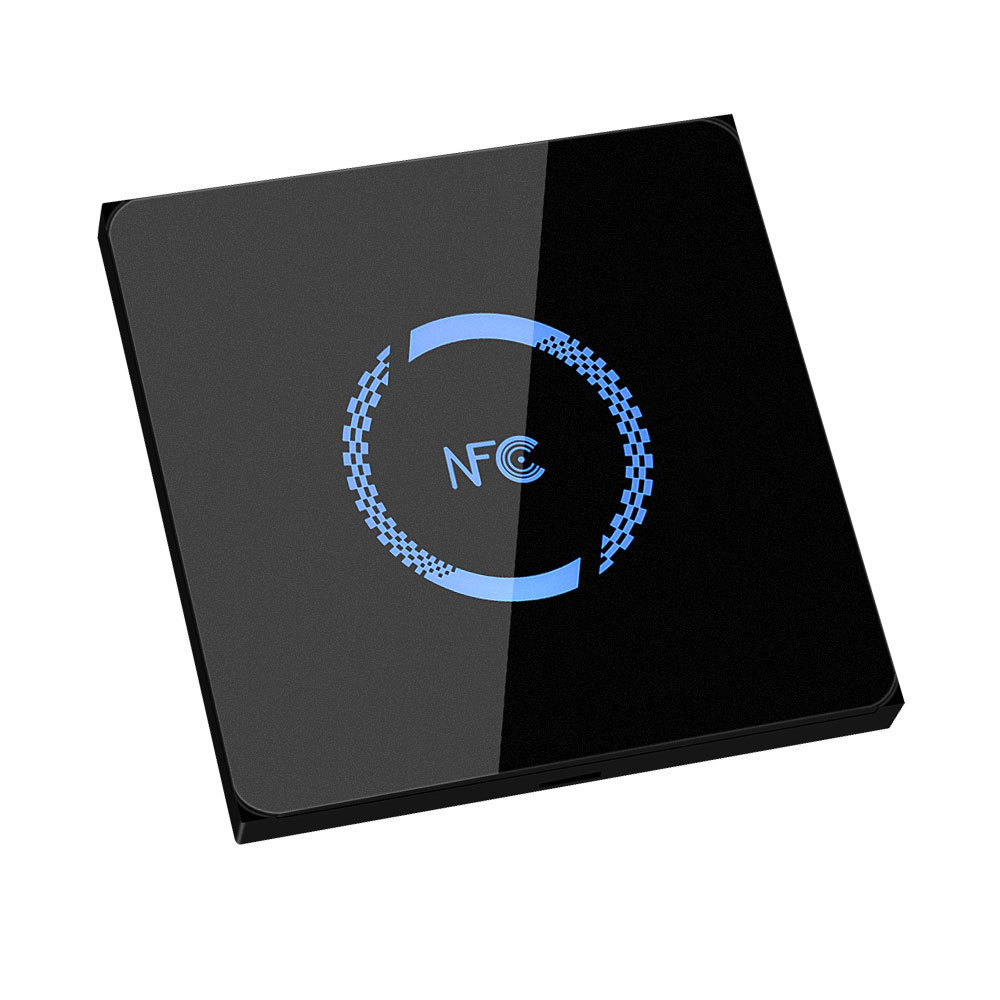

NFC Waterproof Backlight Glass Panel Dual Frequencies 125khz 13.56MHz RFID Card Access Control Slave Reader Wiegand 26 34
Introduction:
Contactless card reader is developed based on independent software and hardware technology, and supports 125Khz ID card and 13.56M IC card access card reader. This product is designed and manufactured with low power consumption and environmentally friendly devices. This product has the following features
Sniper IC copy card, perfectly solve the security problem of copy card
Support Mifar card and EM card
Comprehensive environmental design, -40 degrees to 75 degrees can work normally
communication Wiegand26/34,RS485(optional),BLE4.0(optional)
Can be mounted directly on metal surfaces
The reader output defaults to WIEGAND26. When the FOR pin is connected to GND, the output is changed to Wiegand34.
In Uart working mode, the serial output baud rate is 9600Bit / s, and the hardware is TTL level output. If you need to connect to a computer, you need to do level conversion.
Support Gicard Security Access Control Solution
