Quick Details
-
Brand Name:
-
FUOOTECH
-
Voltage:
-
380V, 50Hz, 3Phase, Customer's Requirement
-
Power:
-
12KW to 90KW
-
Dimension(L*W*H):
-
Refer to actual data
-
Weight:
-
450 kg
-
Color:
-
Blue, Gray, White, Yellow
-
After-sales Service:
-
Provided
-
Applicable raw material:
-
Carbon Steel or SS
-
Application:
-
Industrial lube oil, hydraulic oil, Phosphate Ester oil
-
Function:
-
Oil Filtration, Dewater, Degassing, Acid removal, Resistivity Increase
-
Structure:
-
Vacuum dehydration and mult-stage Filter System
-
Oil pump:
-
Gear type or Screw type
-
Heating method:
-
Indirect Electrical Heating
-
Type:
-
Countinous Vacuum Filtration
-
Certification:
-
CE, ISO 9001
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Flow:
-
600 LPH to 18000 LPH
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
FUOOTECH
-
Voltage:
-
380V, 50Hz, 3Phase, Customer's Requirement
-
Power:
-
12KW to 90KW
-
Dimension(L*W*H):
-
Refer to actual data
-
Weight:
-
450 kg
-
Color:
-
Blue, Gray, White, Yellow
-
After-sales Service:
-
Provided
-
Applicable raw material:
-
Carbon Steel or SS
-
Application:
-
Industrial lube oil, hydraulic oil, Phosphate Ester oil
-
Function:
-
Oil Filtration, Dewater, Degassing, Acid removal, Resistivity Increase
-
Structure:
-
Vacuum dehydration and mult-stage Filter System
-
Oil pump:
-
Gear type or Screw type
-
Heating method:
-
Indirect Electrical Heating
-
Type:
-
Countinous Vacuum Filtration
-
Certification:
-
CE, ISO 9001
Products Description

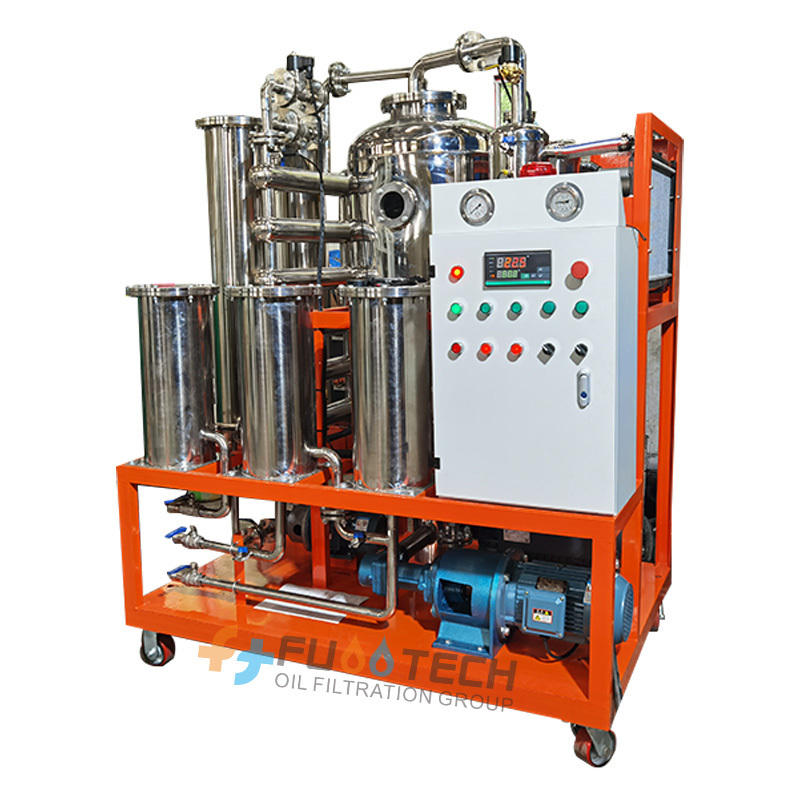

CE Certificate Stainless Steel Eh Phosphate Ester Anti Fuel Oil Purifier Filter
FUOOTECH® is the experienced manufacturer and supplier of
Phosphate Ester Fire-resistant Oil Purifier
.
Series LOP-I Fire resistant hydraulic oil purifier is designed for purifying the unqualified phosphate and degenerative ester fire-resistant oil and widely used in the big & medium-size thermo electrical power generation plants (specially at EH Oil System), Hydraulic Power System and chemical plants.
Series LOP-I EH oil purification machine can treat and regenerate the degenerative fire-resistant oil, removing acid, pigment, gas, water and particles from oil effectively. This machine’s body is made of acid and dissolving resistant special full stainless steel materials, which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil to achieve new fire-resistant oil properties.
Series LOP-I is the necessary purifying equipment for the sectors which use fire-resistant oil, it can be online working and oil-filling.
Details Images
Product Paramenters
|
Parameter
|
|
Unit
|
LOP-I-10
|
LOP-I -20
|
LOP-I -30
|
LOP-I -50
|
LOP-I -70
|
LOP-I -100
|
|||||||
|
Flow rate
|
|
L/h
|
600
|
1200
|
1800
|
3000
|
4200
|
6000
|
|||||||
|
Working vacuum
|
|
MPa
|
-0.07~-0.095
|
|
|
|
|
|
|||||||
|
Working pressure
|
|
MPa
|
≤0.4
|
|
|
|
|
|
|||||||
|
Power supply
|
|
|
380V 50HZ 3Phse (or As per user’s option)
|
|
|
|
|
|
|||||||
|
Working noise
|
|
dB(A)
|
≤65~80
|
|
|
|
|
|
|||||||
|
Operation Temperature
|
|
℃
|
40 ~ 60
|
|
|
|
|
|
|||||||
|
Heating power
|
|
KW
|
12
|
18
|
24
|
30
|
36
|
54
|
|||||||
|
Total power
|
|
KW
|
17
|
20
|
26
|
33
|
39
|
59
|
|||||||
|
Diameter of inlet and outlet
|
|
DN
|
25
|
25
|
25
|
32
|
32
|
40
|
|||||||
|
Dimension
|
L
|
mm
|
1000
|
1100
|
1250
|
1400
|
1500
|
1700
|
|||||||
|
|
W
|
mm
|
800
|
850
|
900
|
1100
|
1250
|
1300
|
|||||||
|
|
H
|
mm
|
1200
|
1400
|
1500
|
1600
|
1700
|
1800
|
|||||||
|
Weight
|
|
KGS
|
250
|
350
|
550
|
750
|
900
|
950
|
|||||||
Oil Result after Purification
|
Moisture (Water Content)
|
≤ 100 PPM
|
|
Gas/air Content
|
≤0.1%
|
|
Filtering Accuracy
|
≤ 1 micron
|
|
Resistivity value
|
≤6×109 Ω.cm
|
|
Acid Value
|
≤0.05 mg KOH/g
|
|
Cleanliness
|
≤NAS 1638 Grade 5
|
Features
1). This machine’s body is made of acid and dissolving resistant special full stainless steel materials, which are compatible with fire-resistant oil, combined with technologies of vacuum dewatering, multi-stage filtration system and new adsorbent to ensure treated oil to achieve new fire-resistant oil properties.
2). Stainless steel machine body, pipes and filtering components, reliable, anti-corrosion, durable.
3). Duplex 3D Stereo-evaporation technology, equipped with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter
4). Advanced strong wind cooling system
5). High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
6). Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
7). Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8). Application of new absorptive materials can effectively absorb the jelly substance in oil, and eliminate the acid content in oil, as well as inhibiting the production of new acid in the system.
9). Can be controlled by PLC fully automatically as option,
10). Online operation at low temperature, 100% physical process will not cause any second pollution, environment friendly.
11). The materials and phosphate ester are of good adaptability, no leakage, and non corrosive.
