2.3KW 15NM AC Motor Matched Servo Driver, Servo Motor with reducer, CNC Complete Motor kit

FOB Reference Price: Get Latest Price

≥1 Pieces

US $200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 130SY-M15015

Frequency:: 50/60Hz

Number of pole pairs:: 4

Encoder:: incremental/absolute encoder

Output Power:: 2.3Kw

install:: Flange mounting

Insuation resistance:: DC500v ,10M above

environment temperature:: 0 °C - 55 °C

Vibration:: Under 2.5G

Insuation and voltage resistance:: AC1500V,1minute

Structure:: Self-cooling

Certification:: CE, ISO

Quick Details

AC Voltage:: 220V

Place of Origin:: Zhejiang, China

Brand Name:: XINYUHAI

Model Number:: 130SY-M15015

Frequency:: 50/60Hz

Number of pole pairs:: 4

Encoder:: incremental/absolute encoder

Output Power:: 2.3Kw

install:: Flange mounting

Insuation resistance:: DC500v ,10M above

environment temperature:: 0 °C - 55 °C

Vibration:: Under 2.5G

Insuation and voltage resistance:: AC1500V,1minute

Structure:: Self-cooling

Certification:: CE, ISO

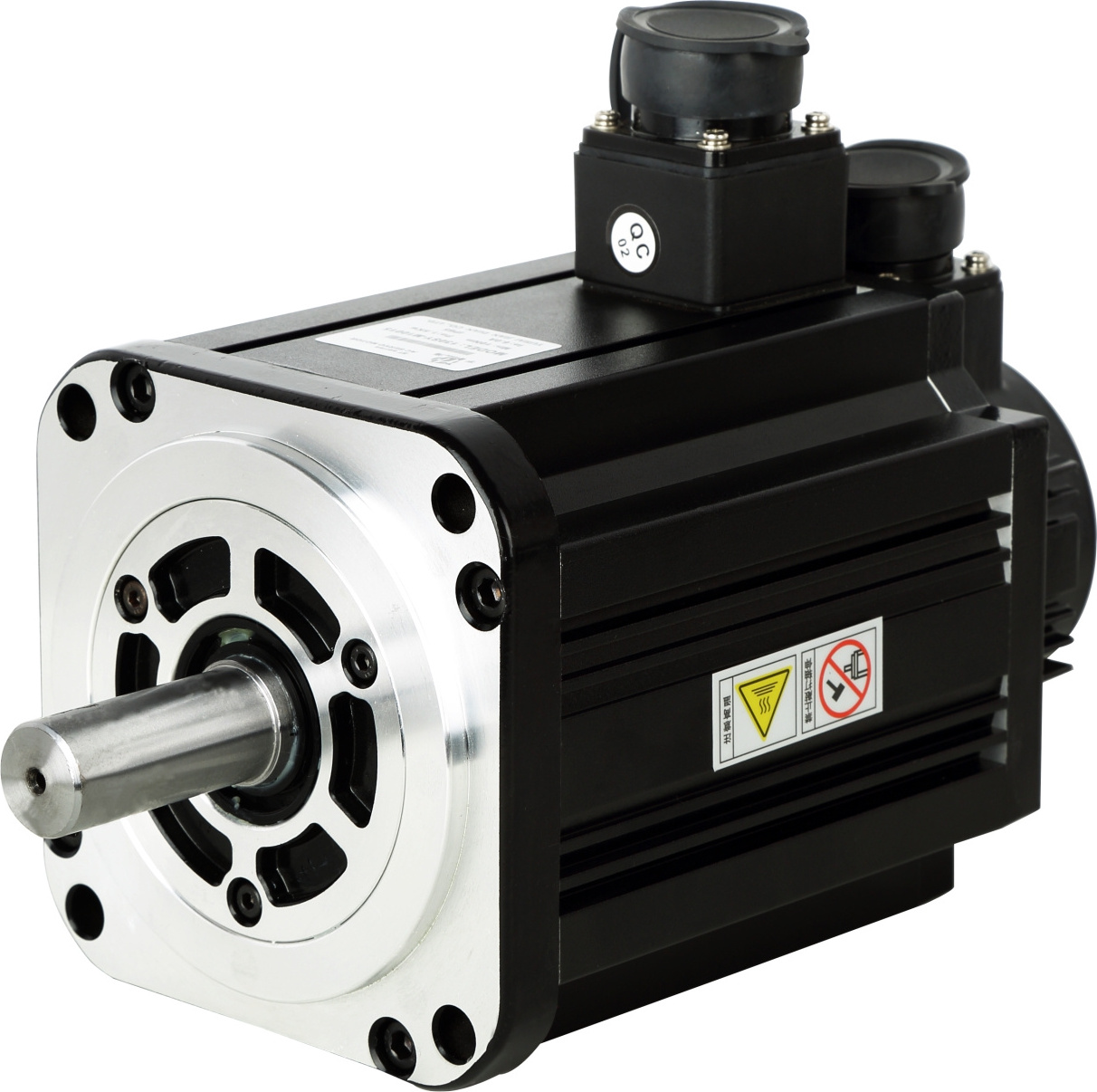

2.3KW 15NM AC Motor Matched Servo Driver

Servo Motor with reducer, CNC Complete Motor kit

Motor Model	130SY-M04025	130SY-M05025	130SY-M06025	130SY-M07725	130SY-M10015	130SY-M10025	130SY-M15015	130SY-M15025	130SY-M20015
Rated Power(Kw)	1.0	1.3	1.5	2.0	1.5	2.6	2.3	3.8	3
Rated Torque(N.m)	4	5	6	7.7	10	10	15	15	20
Max Torque(N.m)	12	15	18	22	25	25	30	30	40
Rated Speed(Rpm)	2500	2500	2500	2500	1500	2500	1500	2500	1500
Max Speed(Rpm)	2800	2800	2800	2800	1800	2800	1800	2800	1800
Rated Current(A)	4	5	6	7.5	6	10	9.5	17	15
Inertia (Kg.㎡)	0.82 * 10 ^-3	1.20 *10 ^-3	1.26 *10 ^-3	1.53 *10 ^-3	1.94 *10 ^-3	1.94 *10 ^-3	2.77 *10 ^-3	2.77 *10 ^-3	3.67 *10 ^-3
Motor Weight(Kg)	6.5	7	7.5	8.5	10	10	12	12	15

Due to the limited size of the table,not all model parameters are listed,we supply different type and size,for more information,please contact us,also we can customized as your requirement

1. Low noise and long life
2. Efficient and energy saving
3. Wide range of uses
4. Tamagawa incremental encoder 2500/5000PPR /10000PPR
Tamagawa absolute encoder 17bits /23 bits

We also have 3 phase 380V type , if you have interests ,pls let us know !
Note:
1.We have Mikipulley brake , planetary gearbox , transfomer , inventer for matching

Also if you are interested in aboslute encoder and modbus , 485 ,Eathercat one . Pls do not hesitate to contact us !
Normally we supply 1-5 m cables , if you want longer , pls tell me .we can customized for you !
2.Compare to Panasonic , Mistubishi , Fanuc and delta brand motor driver. our goods with big advantage in price while the quality is not bad ,especially the motor !

1) Are you a manufacturer or trade company?
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,w e produce stepper motor,servo motor,motor drive and couplings, etc. .

2 ) Where is your factory located? How can I visit there?

Our factory is located in Wenling Taizhou Zhejiang province，it is easy to visit us through plane or railway. All our clients, from home or abroad, are warmly welcome to visit us!

3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.

4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.

5) About warranty?
All our products provided 24months warranty!

6) How does your factory do regarding quality control?

"Quality is priority.'' Our inspector QC will check the goods in every procedure and modify the parts once they find any problems from them. And our salesman will also check our goods and take photos for every procedure for our client to confirm.
